DELL COMP DAC 2.5M TAA 200G-CU QSFP-DD 200G/2XQSFP28

SKU: 9CA712VPN: DAC-Q56DD2Q282-5M-AO

In Stock

$680.00$377.75

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Compliant with QSFP-DD MSA Specification Rev 3.4
SFF-8679 electrical interface compliant
SFF-8636 management interface support
Compatible with IEEE 802.3bj, IEEE 802.3by, IEEE 802.3cd
Supports aggregate data rates of 100 and 200Gbps
I2C for EEPROM communication
Pull-to-release slide latch design
28AWG through 32AWG cable
Excellent EMI/EMC performance 360-degree cable shield termination
Advantage dual side pre-solder automated assembly technologies

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

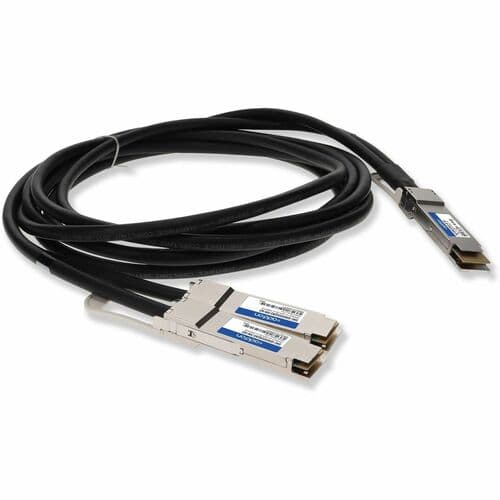

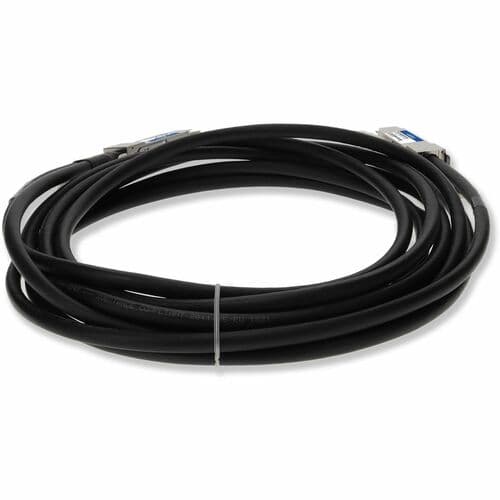

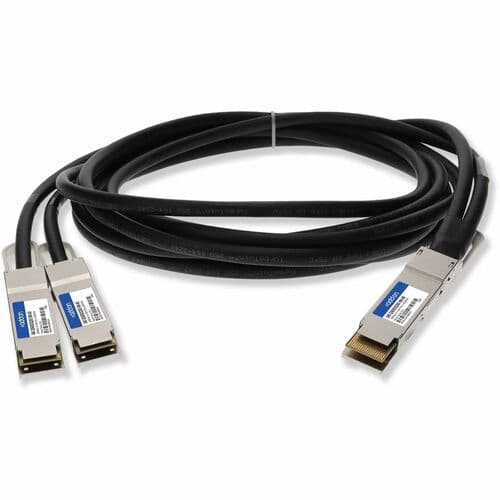

This is a Dell DAC-Q56DD-2Q28-2-5M compatible TAA compliant 200GBase-CU QSFP-DD 200G to 2xQSFP28 100G NRZ direct attach cable that operates over passive copper with a maximum reach of 2.5m (8.2ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.

Tech Specs

DELL COMP DAC 2.5M TAA 200G-CU QSFP-DD 200G/2XQSFP28 specifications
Width	0.5"
Height	0.5"
Length	98.4"
Features	Passive
Shielding	Yes
Brand Name	AddOn
Cable Type	Twinaxial
Jacket Type	VW-1
Cable Length	8.20 ft
Manufacturer	AddOn
Product Name	Dell Twinaxial Network Cable
Product Type	Network Cable

Show all 32 specs

TAA Compliant	Yes
Jacket Material	Polyvinyl Chloride (PVC)
Device Supported	Network Device
Product Material	Copper
Country of Origin	United States/United Kingdom
Packaged Quantity	1
Data Transfer Rate	200 Gbit/s
American Wire Gauge	28 AWG
Weight (Approximate)	0.30 lb
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	DAC-Q56DD2Q282-5M-AO
Certifications & Standards	MSA Compliant
Connector Type on First End	QSFP-DD Network - Male
Connector Type on Second End	QSFP28 Network - Male
Manufacturer Website Address	http://www.addoncomputer.com
Connector Gender on First End	Male
Connector Gender on Second End	Male
Connector on First End Details	1 x QSFP-DD Network - Male
Connector on Second End Details	2 x QSFP28 Network - Male
