ADDON
DELL 470-AEGN COMP DAC TAA 40G-CU QSFP+/4XSFP+ PASSIVE 5M
SKU: HP6473VPN: 470-AEGN-AO

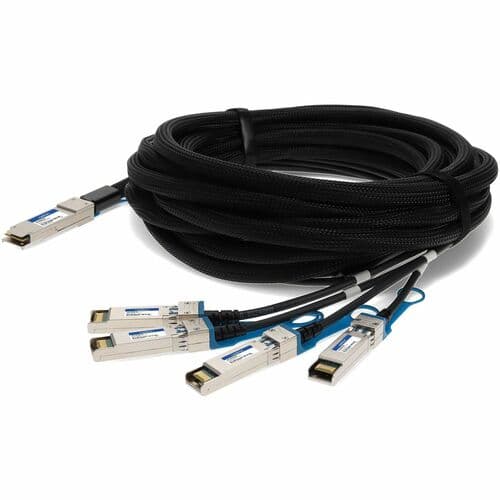

DELL 470-AEGN COMP DAC TAA 40G-CU QSFP+/4XSFP+ PASSIVE 5M
Key Features
- Hybrid cable conforms to the Small Form Factor SFF-8436and SFF-8431
- Maximum aggregate data rate: 40 Gbps (4 x 10 Gbps)
- Support for multi-gigabit data rates: 1 Gbps - 10Gbps (perchannel)
- 20-PIN connector
- Power Supply: +3.3V
- High-Density QSFP 38-PIN and 4x SFP
- Lower power consumption: 0.02W
- Operating temperature: 0 to 70 Celsius
- RoHS Compliant and Lead-Free
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

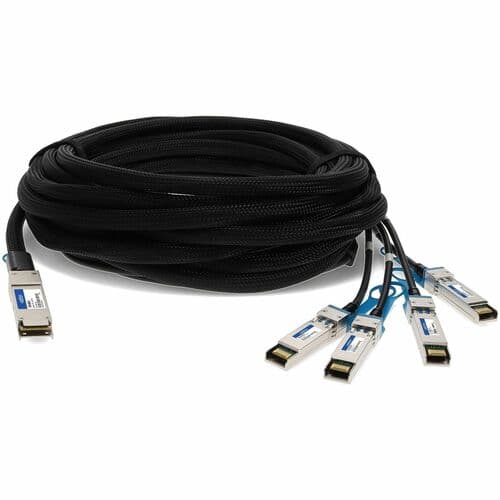

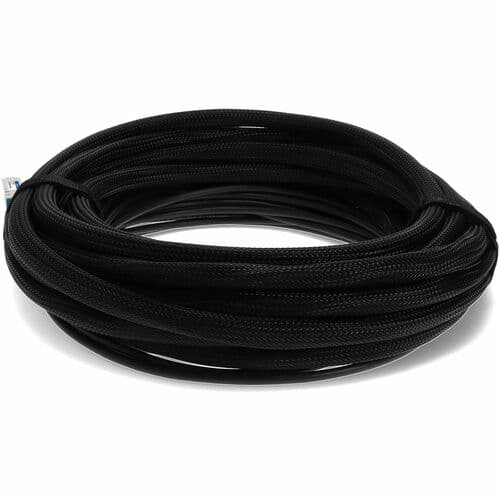

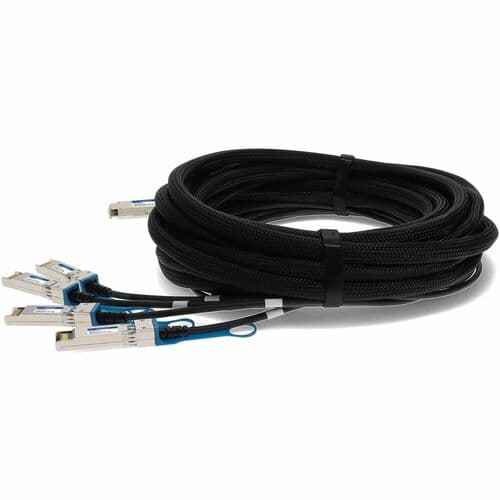

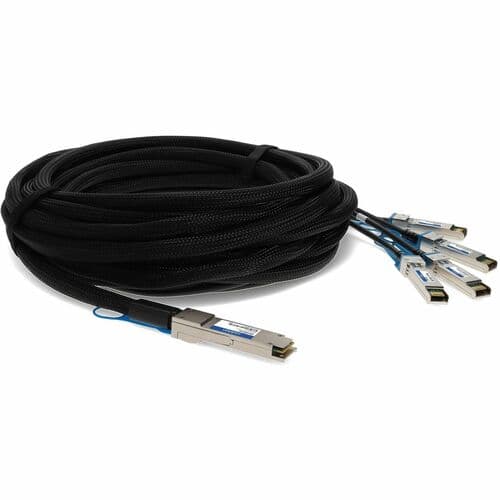

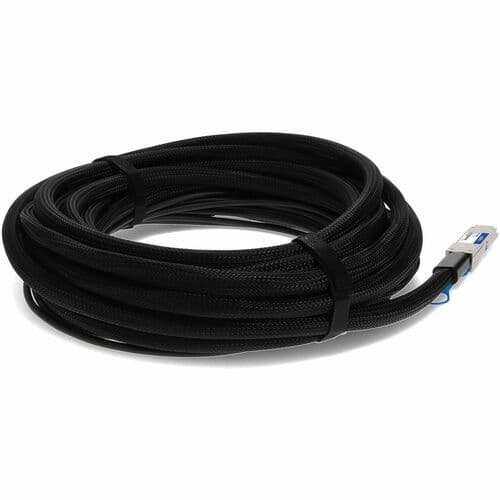

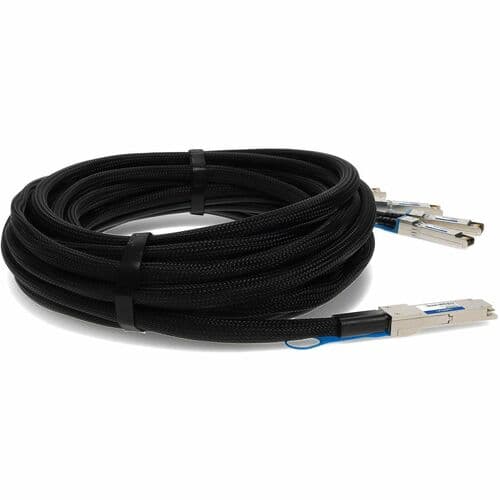

This is a Dell 470-AEGN compatible 40GBase-CU QSFP+ to 4xSFP+ direct attach cable that operates over passive copper with a maximum reach of 5.0m (16.4ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
Tech Specs
| Width | 0.5" |
|---|---|
| Height | 0.5" |
| Length | 16.4 ft |
| Features | Passive |
| Brand Name | AddOn |
| Cable Type | Twinaxial |
| Cable Length | 16.40 ft |
| Manufacturer | AddOn |
| Product Name | Dell Twinaxial Network Cable |
| Product Type | Network Cable |
| TAA Compliant | Yes |
| Device Supported | Transceiver |
Show all 28 specsShow fewer
| Product Material | Copper |
|---|---|
| Country of Origin | United States/United Kingdom |
| Packaged Quantity | 1 |
| Data Transfer Rate | 40 Gbit/s |
| American Wire Gauge | 28 AWG |
| Weight (Approximate) | 0.90 lb |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Manufacturer Part Number | 470-AEGN-AO |
| Certifications & Standards | MSA Compliant |
| Connector Type on First End | QSFP+ Network - Male |
| Connector Type on Second End | SFP+ Network - Male |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Connector on First End Details | 1 x QSFP+ Network - Male |
| Connector on Second End Details | 4 x SFP+ Network - Male |
