CISCO - HW SWITCHES DT
CATALYST 3650 24PORT MGIG 4X10G UPLINK IP SVC
SKU: 8C8608VPN: WS-C3650-8X24UQ-E
CATALYST 3650 24PORT MGIG 4X10G UPLINK IP SVC
Key Features
- Ethernet Switch provides dependable and powerful connectivity for maximum usability
- Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
- Increases the stack bandwidth of the stack port further than that of a single port
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
- Supports layer 3 switching for enhanced performance and usability
- Standalone form factor for added reliability and dependability
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The Cisco® Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The 3650 Series is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco Unified Access™ Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The 3650 Series switches support full IEEE 802.3at Power over Ethernet P.lus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE® on the Cisco Catalyst 3650 Series multigigabit switches, and offer modular and field-replaceable redundant fans and power supplies. The 3650 Series switches also come in a 12-inch lower depth form factor so that you can deploy them in tight wiring closets in remote branches and offices where depth of the switch is a concern. In addition, the 3650 multigigabit switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure. The 3650 Series switches help increase wireless productivity and reduce TCO.
Product Overview
Product Overview
- Integrated wireless controller capability with:
- Up to 40G of wireless capacity per switch (48-port models)
- Support for up to 50 access points and 1000 wireless clients on each switching entity (switch or stack)
- 24 and 48 10/100/1000 data and PoE+ models with energy-efficient Ethernet (EEE) supported ports
- 24 and 48 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps (multigigabit) Cisco UPOE and PoE+ models with EEE
- Five fixed-uplink models with four Gigabit Ethernet, two 10 Gigabit Ethernet, four 10 Gigabit Ethernet, eight 10 Gigabit Ethernet, or two 40 Gigabit Ethernet Quad Small Form-Factor Pluggable Plus (QSFP+) ports
- 24-port and 48-port 10/100/1000 PoE+ models with lower noise and reduced depth of 11.62 inches for shallow depth cabinets in enterprise, retail, and branch-office environments
- Optional Cisco StackWise-160 technology that provides scalability and resiliency with 160 Gbps of stack throughput
- Dual redundant, modular power supplies and three modular fans providing redundancy
- Support for external power system RPS 2300 on the 3650 mini SKUs for power redundancy
- Full IEEE 802.3at (PoE+) with 30W power on all ports in 1 rack unit (RU) form factor
- Cisco UPOE with 60W power per port in 1 rack unit (RU) form factor
- Software support for IPv4 and IPv6 routing, multicast routing, modular quality of service (QoS), Flexible NetFlow (FNF) Version 9, and enhanced security features
- Single universal Cisco IOS® Software image across all license levels, providing an easy upgrade path for software features
- Enhanced limited lifetime warranty (E-LLW) with next business day (NBD) advance hardware replacement and 90-day access to Cisco Technical Assistance Center (TAC) support
Tech Specs
| Depth | 19.1" |
|---|---|
| Width | 17.5" |
| Height | 1.7" |
| Modular | Yes |
| Brand Name | Cisco |
| Manageable | Yes |
| Stack Port | Yes |
| Form Factor | Desktop |
| Uplink Port | Yes |
| Manufacturer | Cisco Systems, Inc |
| Power Source | Power Supply |
| Product Line | Catalyst |
Show all 33 specsShow fewer
| Product Name | Catalyst 3650-8X24UQ-E Switch |
|---|---|
| Product Type | Ethernet Switch |
| Product Model | 3650-8X24UQ-E |
| Product Family | Catalyst 3650 |
| Product Series | 3650 |
| Layer Supported | 3 |
| Shared SFP Slot | No |
| Package Contents | <ul> <li>Catalyst 3650-8X24UQ-E Switch</li> <li>1100WAC Power Supply</li> </ul> |
| Network Technology | 10GBase-X |
| Ethernet Technology | 10 Gigabit Ethernet |
| Expansion Slot Type | SFP+ |
| Compatible Rack Unit | 1U |
| Media Type Supported | Optical Fiber |
| Number of SFP+ Slots | 4 |
| Weight (Approximate) | 16.71 lb |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | WS-C3650-8X24UQ-E |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet Network |
| Manufacturer Website Address | http://www.cisco.com |
| Total Number of Network Ports | 24 |
| Total Number of Expansion Slots | 4 |
Related Products
More in STK-SW from CISCO - HW SWITCHES DT and similar brands
CATALYST 9200L 24PORT DATA 4X1G NTWK ESSEN
$2,787.28$1,201.73

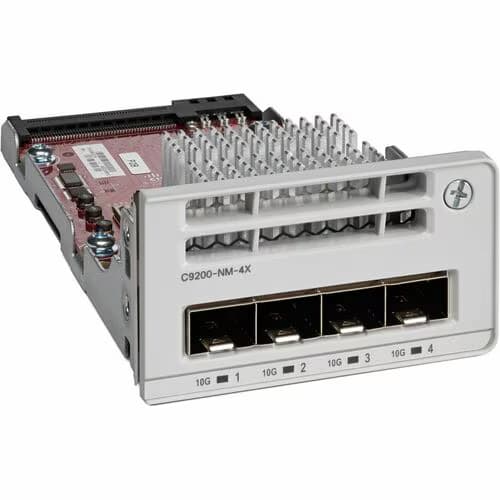

CATALYST 9200 4X10G NTWRK MOD
