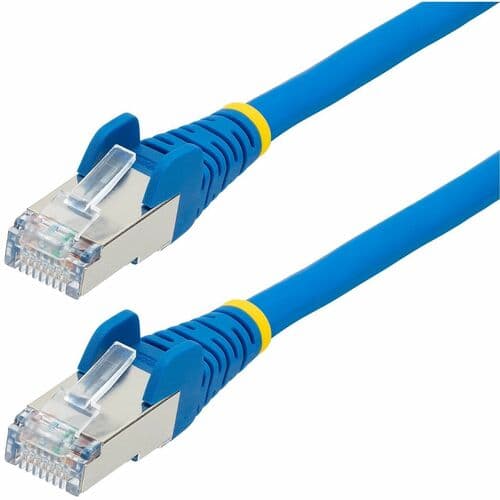

CAT6A ETHERNET CABLE - 1FT LSZH 10GBE NETWORK PATCH CABLE

SKU: S61903VPN: NLBL-1F-CAT6A-PATCH

In Stock

$11.26$6.99

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

CAT6A ETHERNET CABLE: High-performance Ethernet Cable for error-free 1/2.5/5/10Gbps multi-gigabit connections; Low Near-End Crosstalk (NEXT) and Return Loss (RL); Individually tested to meet ANSI/TIA-568.2-D standards; Individually Tested/ETL Verified
SHIELDED CAT6A CABLE: Improved signal integrity and protection against noise & electromagnetic (EMI/RFI) interference; Individual twisted pairs wrapped in foil; Outer covering w/ braided shield; Shielded RJ45 connectors with gold-plated pins
100W POWER OVER ETHERNET: 100% stranded copper wire delivers error-free data and stable PoE power, unlike lower quality copper-clad aluminum versions of other brands; Supports PoE devices up to 100W PoE++; Complies with IEEE 802.3bt (Type 4 and lower)
DURABLE LSZH JACKET: PVC Free, Low Smoke Zero Halogen (LSZH) cable jacket produces less dense and corrosive smoke than PVC; Braided construction resists damage from bending
SPECS: Category 6A Network Patch Cord; 1ft; Blue; 10Gbps; 500 MHz; 4 Pair S/FTP; Snagless RJ45 with Strain Reliefs; EVA, Al(OH)3; LSZH; 27 AWG; 100% Copper; ETL Verified; ANSI/TIA-568.2-D; Supports Cat6 and earlier standards; Backed for Life

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Cat6a Ethernet Low-Smoke Zero-Halogen (LSZH) Shielded cables support Multi-Gigabit/Multi-speed 1/2.5/5Gbps/10Gbp connections. It offers robust protection against electromagnetic interference (EMI/RFI) and noise, ensuring a fast, safe, and reliable network.

Low-Smoke Zero-Halogen (LSZH) CAT6A Ethernet Cable

LSZH Cat6a Network Cables are more eco-friendly than PVC cables. In the event of a fire, LSZH cables produce low levels of corrosive fumes and smoke. Low levels of acrid combustion pollutants promote increased visibility, resulting in safe and quick building evacuations by staff and first responders.

100W Power over Ethernet (PoE++)

This high performance Ethernet cable complies with the IEEE 802.3bt-2018 standard. It supports 100W PoE++, providing ample power to Type 4 PoE devices.

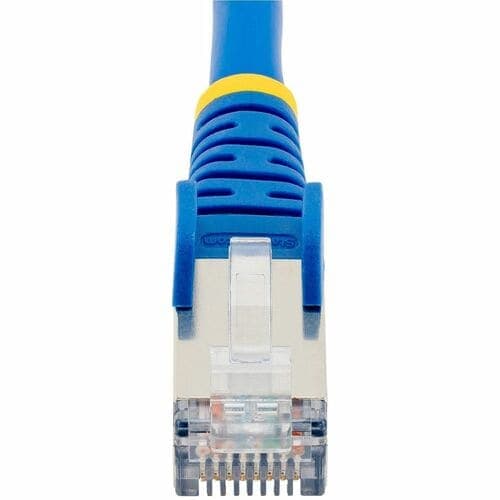

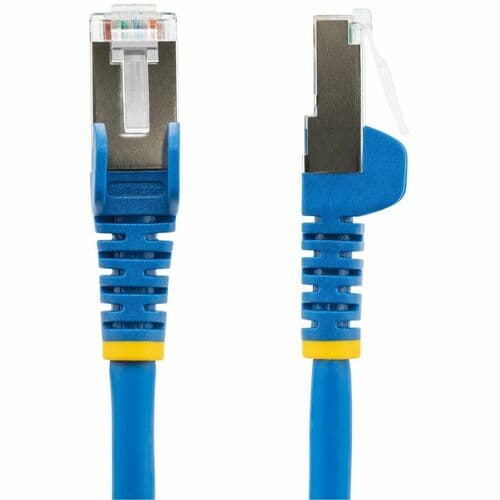

RJ45 Connectors with Snagless Clips

The Cat6a cable features snag-less connectors. Snagless molded boots protect the tab/latch on each RJ45 connector. The boots prevent the cable from snagging during cable routing and/or installation into network devices.

The molded boots feature integrated strain reliefs that prevent sharp connector/cable angles at the termination points.

This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.

Tech Specs

CAT6A ETHERNET CABLE - 1FT LSZH 10GBE NETWORK PATCH CABLE specifications
Width	0.5"
Height	0.6"
Features	PoE
Boot Type	Molded
Shielding	Yes
Brand Name	StarTech.com
Cable Type	Category 6a
Jacket Type	LSZH
Cable Length	1 ft
Color Family	Blue
Manufacturer	StarTech.com
Product Name	Cat6a Ethernet Cable - LSZH

Show all 33 specs

Product Type	Network Cable
Product Color	Blue
Contact Plating	Gold
Number of Pairs	4
Device Supported	PoE Device
Material Details	<p>Conductor - Copper</p>
Product Material	Copper
Packaged Quantity	1
Data Transfer Rate	10 Gbit/s
American Wire Gauge	27 AWG
Cable Characteristic	Patch Cable
Number of Conductors	8
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Manufacturer Part Number	NLBL-1F-CAT6A-PATCH
Connector Type on First End	RJ-45 Network - Male
Connector Type on Second End	RJ-45 Network - Male
Manufacturer Website Address	http://www.startech.com
Connector Gender on First End	Male
Connector Gender on Second End	Male
Connector on First End Details	1 x RJ-45 Network - Male
Connector on Second End Details	1 x RJ-45 Network - Male
