CALIX COMP DAC TAA 100G-CU QSFP28 PASSIVE 2M
SKU: 06KC14VPN: 100-05588-AO

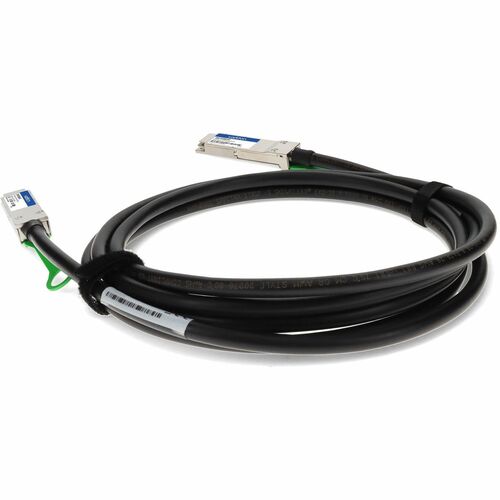

CALIX COMP DAC TAA 100G-CU QSFP28 PASSIVE 2M
Key Features
- QSFP28 conforms to the Small Form Factor SFF-8436
- 4-Channel Full-Duplex Passive Copper Cable Transceiver
- Support for multi-gigabit data rates: 16Gb/s - 25.78Gb/s (per channel)
- Maximum aggregate data rate: 100Gb/s (4x25.78Gb/s)
- IEEE 802.3bj 100GBase-CR4
- Copper link length up to 2m
- Power Supply: +3.3V
- Low crosstalk
- I2C based two-wire serial interface for EEPROM signature which can be customized
- Industrial Temperature -40 to +85 Celsius
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
This is a Calix® 100-05588 compatible 100GBase-CU QSFP28 to QSFP28 direct attach cable that operates over passive copper with a maximum reach of 2m. It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
Tech Specs
| Features | Bendable |
|---|---|
| Brand Name | AddOn |
| Cable Type | Twinaxial |
| Cable Length | 6.56 ft |
| Color Family | Black |
| Manufacturer | AddOn |
| Product Name | Twinaxial Network Cable |
| Product Type | Network Cable |
| Product Color | Black |
| TAA Compliant | Yes |
| Device Supported | Network Device |
| Material Details | Copper - Media<br />Copper - Cable |
Show all 24 specsShow fewer
| Product Material | Copper |
|---|---|
| Packaged Quantity | 1.0 |
| Data Transfer Rate | 100 Gbit/s |
| American Wire Gauge | 30 AWG |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | 100-05588-AO |
| Connector Type on First End | QSFP28 Network |
| Connector Type on Second End | QSFP28 Network |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Connector on First End Details | 1 x QSFP28 Network |
| Connector on Second End Details | 1 x QSFP28 Network |
