C2G 4K HDMI OVER CAT EXTENDER BOX TRANSMITTER TO BOX RECEIVER
SKU: 9RF842VPN: C2G60220

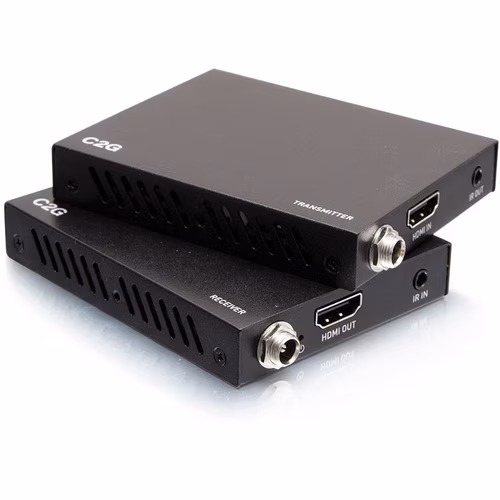

C2G 4K HDMI OVER CAT EXTENDER BOX TRANSMITTER TO BOX RECEIVER
Key Features
- C2G HDMI over Cat Extender Box Transmitter to Box Receiver
- Supports multi-channel audio formats, including PCM 7.1, Dolby TrueHD and DTS-HD Master Audio
- Extend 4K 60Hz (4:4:4) up to 115ft with Cat 6/6a cable
- Extend 4K 30Hz (4:4:4) up to 131ft and 1080p at 60Hz up to 164ft with Cat 5e/6/6a cable
- One power adapter at either transmitter or receiver can power both units
- Slim profile for easy installation
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The HDMI over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 131ft to a 4K display using a single Cat6/6a Ethernet cable. This is an ideal solution where HDMI video and audio in conference rooms, classrooms, lecture halls, and many other installation needs are far beyond the length limitations of standard HDMI cabling.
This HDMI over Cat Extender is HDCP 2.2 compliant, making sure that the connection from the source is secure. Multi-channel audio formats are supported, including PCM 7.1, Dolby TrueHD and DTS-HD Master Audio. With bi-directional Power over Cable (PoC) support, one power adapter at either transmitter or receiver side can power both units, so no additional power adapter is required, allowing for greater flexibility in installations.
Note: Ensure a solid, reliable connection between the 4K HDMI Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.
Tech Specs
| HDMI In | Yes |
|---|---|
| HDMI Out | Yes |
| Brand Name | C2G |
| Color Family | Black |
| Manufacturer | Legrand Group |
| Product Name | HDMI over Cat5/Cat6 Extender Box Transmitter to Receiver - up to 164ft |
| Product Type | Video Extender Transmitter/Receiver |
| Product Color | Black |
| Graphics Modes | 4K |
| Receiver Depth | 3.54" |
| Receiver Width | 3.54" |
| Network (RJ-45) | Yes |
Show all 30 specsShow fewer
| Receiver Height | 0.60" |
|---|---|
| Package Contents | <ul> <li>1 x Transmitter</li> <li>1 x Receiver</li> <li>1 x 12V/1A Power Adapter with UK, EU & AU Plug</li> <li>1 x IR Emitter</li> <li>1 x Broadband IR Receiver (30-50KHz)</li> <li>4 x Mounting Brackets (with screws)</li> <li>1 x User Manual</li> </ul> |
| Country of Origin | China |
| Transmitter Depth | 3.54" |
| Transmitter Width | 3.54" |
| Transmitter Height | 0.60" |
| Media Type Supported | Twisted Pair |
| Number of HDMI Inputs | 1 |
| Supported Video Modes | 1080p |
| Number of HDMI Outputs | 1 |
| Connectivity Technology | Wired |
| Manufacturer Part Number | C2G60220 |
| Maximum Operating Distance | 164 ft |
| Twisted Pair Cable Standard | Category 6a |
| Manufacturer Website Address | http://www.legrand.us |
| Number of Network (RJ-45) Ports | 2 |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
