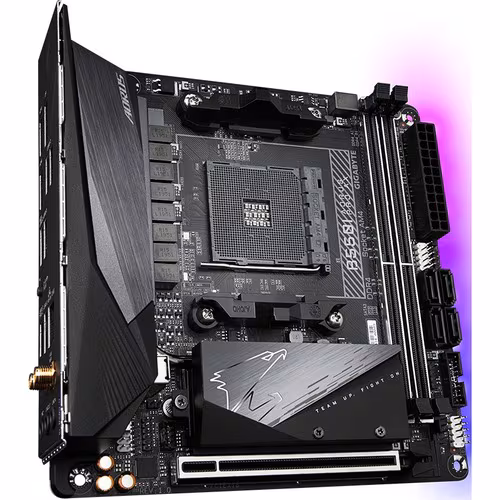

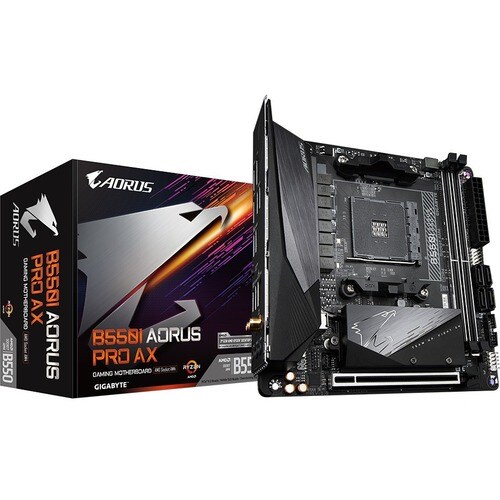

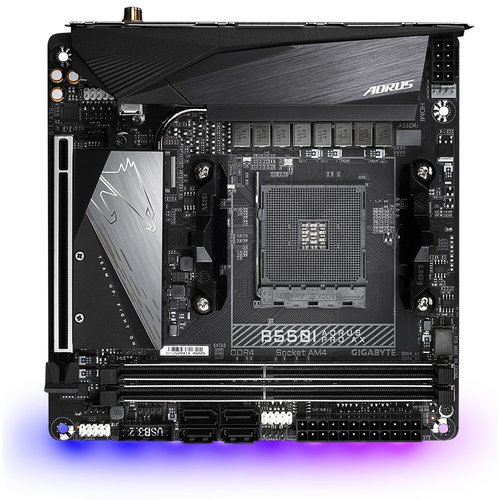

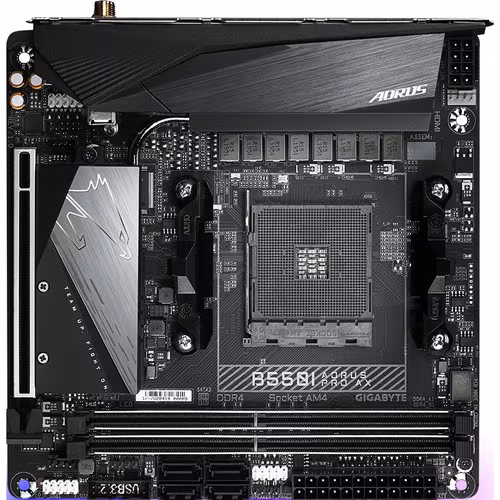

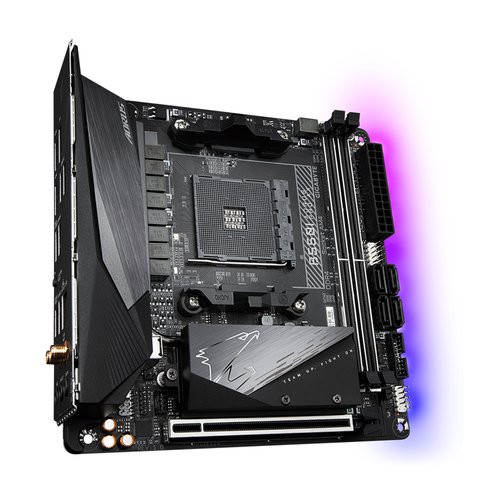

B550I AORUS PRO AX ITX MOTHERBOARD
B550I AORUS PRO AX ITX MOTHERBOARD
Key Features
- Ryzen 3 processors supported for enhanced, dependable system performance with maximum usability
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Supported 0 RAID levels provide data reliability and fault tolerance
- IEEE 802.11 a/b/g/n/ac/ax wireless standard support lets you connect to the internet and have instant access to social media, music, movies, and online games
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Have a perfect symmetry of hardware components needed in the media server or NAS box with Mini ITX form factor
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

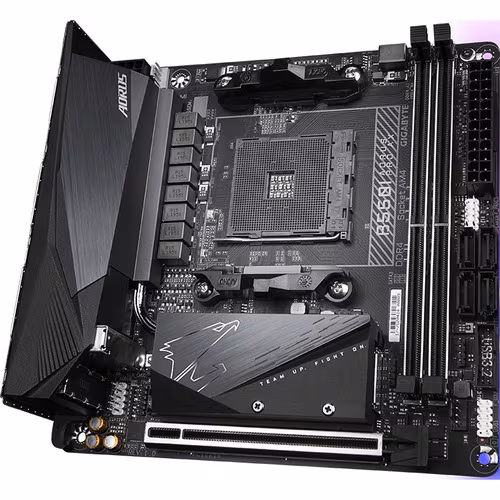

AMD B550 Mini-ITX AORUS Motherboard with Direct 8 Phases Digital VRM, Advanced Thermal Design with Extended VRM Heatsink, Thermal Baseplate, Dual PCIe 4.0/3.0 M.2 with Thermal Guard, Intel® WiFi 6 802.11ax, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus
- Supports 3rd Gen AMD Ryzen™ Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs

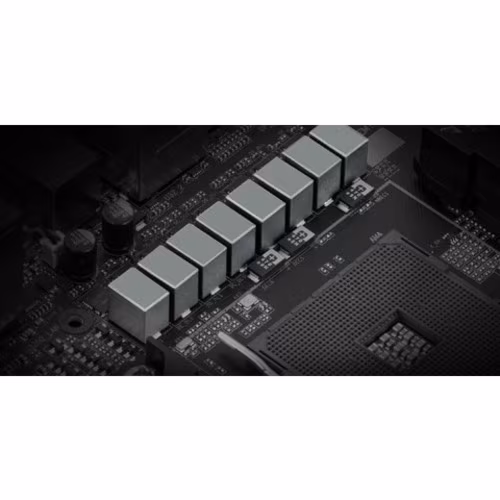

- Direct 8 Phases Digital VRM Solution with 90A Smart Power Stage (SPS)
- Advanced Thermal Design with Extended & Multi-Layered Heatsink and Thermal Baseplate

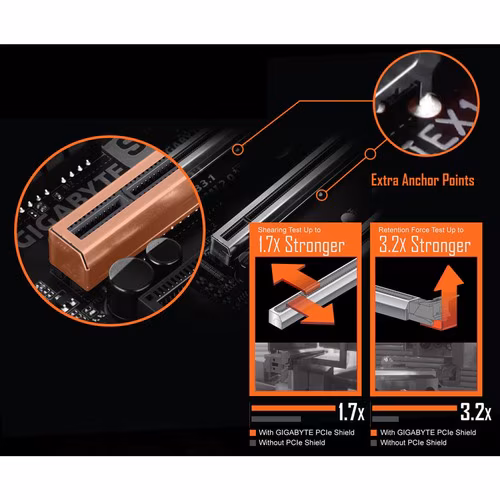

- Ultra Durable™ PCIe 4.0 Ready x16 Slot

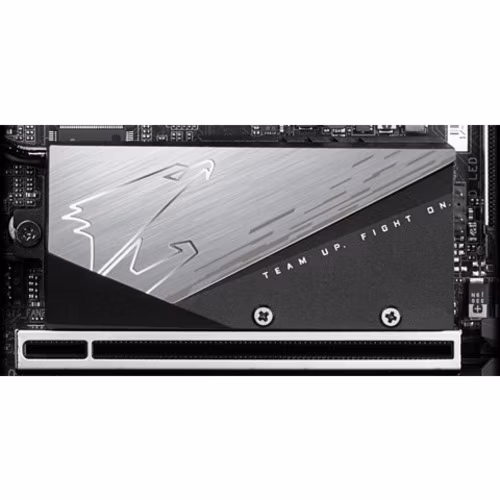

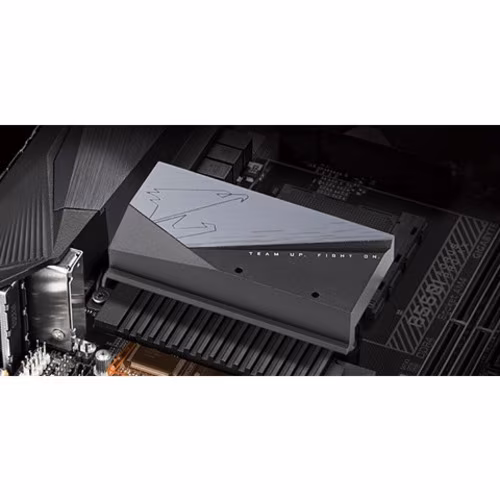

- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
- Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
- AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors for Rear 120dB SNR
- Blazing Fast 2.5GbE LAN with Bandwidth Management

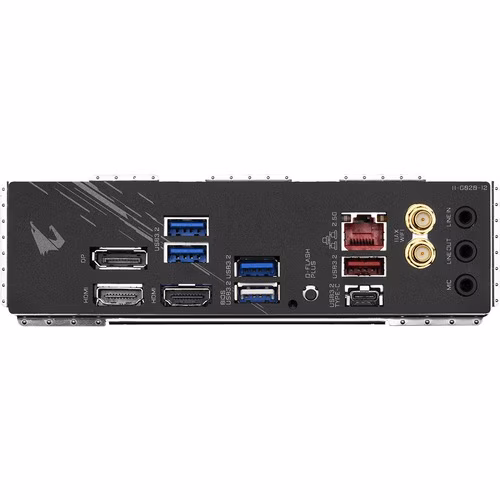

- USB 3.2 Gen2 Type-C™ & DisplayPort + Dual HDMI Support

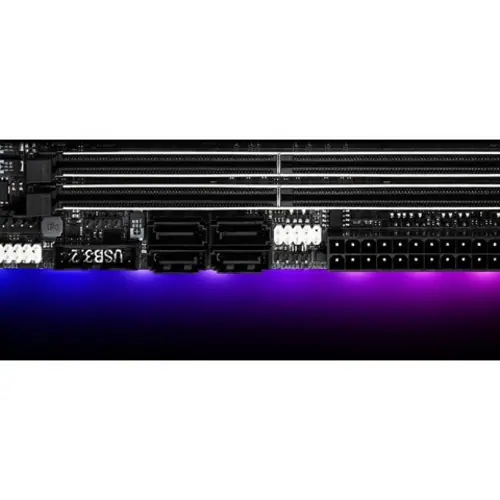

- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

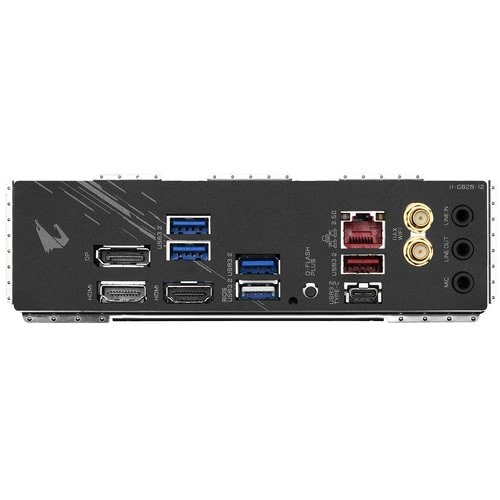

- Pre-installed IO Shield for Easy and Quick Installation
Best Choice for Small but Powerful PC
B550I AORUS PRO AX is a mini-ITX motherboard perfect for building a small form factor PC for people who demands higher performance but also cares about aesthetics. The compact yet powerful pc delivers amazing performance with the latest CPU, graphic card and blazing fast connectivity. It also equips with comprehensive thermal solution to keep it cool under heavy workload. Performance is not compromised by its size.

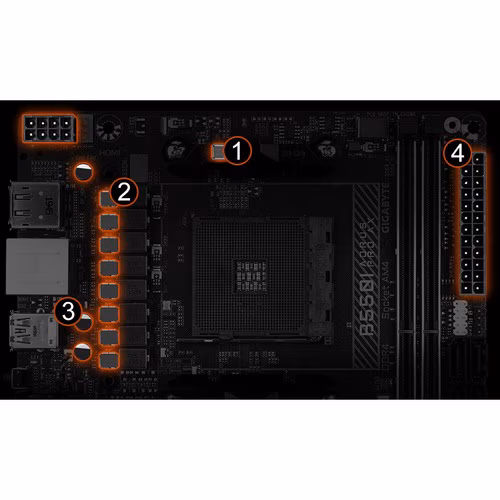

ULTIMATE POWER DESIGN
To fully support the latest 3rd Gen AMD Ryzen™ processors, B550 motherboards equip with the ultimate power solution which is true direct, digital and multiple phases. After countless experiments and testing, GIGABYTE presents the unbeatable B550 motherboards for enthusiast. No Compromise and never stop to achieve higher.
UNPARALLELED PERFORMANCE

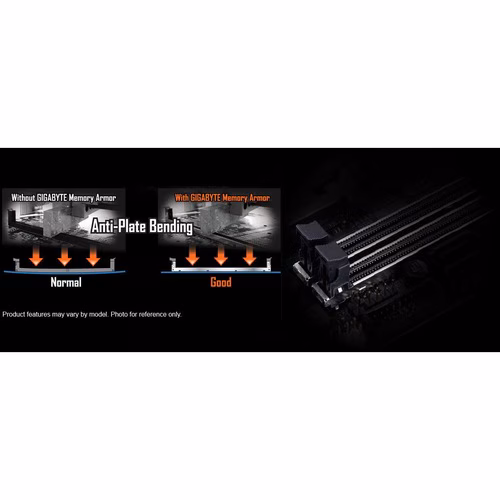

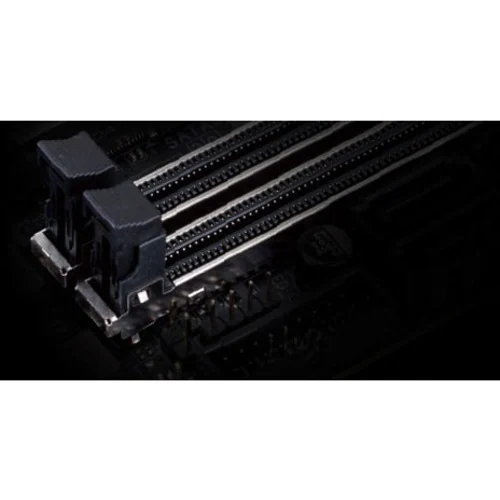

GIGABYTE realize that customer won't stop chasing a better computing performance. We take care of it and implement on products. Protective and optimized memory trace enhance the performance. Faster read and write are needed to save time and improve efficiency. We offer plenty of M.2 storage with thermal guards to ensure unthrottled read and write. In advance, adopting PCIe 4.0 ready components get the B550 motherboards easier to upgrade.
ADVANCED THERMAL SOLUTION

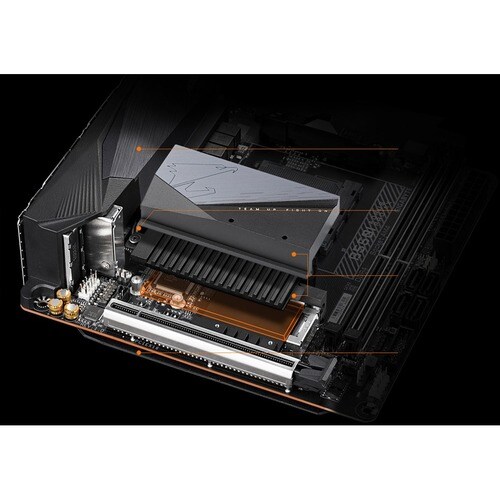

Unthrottled performance is guaranteed by the advanced thermal solution which including Extended VRM Heatsink, Heatpipe, Thermal Guards, and Baseplate. B550 motherboards are cool on MOSFETs and M.2 SSDs even on full loading. It provides lower temperatures for enthusiasts and professional gamers.
NEXT GENERATION CONNECTIVITY
A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. B550 motherboards provide all next generation network, storage, and WIFI connectivity to keep you up to speed.
HI-FI AUDIO SYSTEM
For enthusiasts, sound quality is just as essential to the gaming experience. B550 motherboards are equipped with high quality audio components such as Nichicon Fine Gold capacitors to provide a superb audio experience. The exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.
Tech Specs
| HDMI | Yes |
|---|---|
| Depth | 6.7" |
| Width | 6.7" |
| Bluetooth | Yes |
| Brand Name | GIGABYTE |
| DisplayPort | Yes |
| Form Factor | Mini ITX |
| RAID Levels | 0 |
| Manufacturer | GIGABYTE Technology, Inc |
| Product Line | Ultra Durable |
| Product Name | Ultra Durable B550I AORUS PRO AX (rev. 1.0) Desktop Motherboard |
| Product Type | Desktop Motherboard |
Show all 46 specsShow fewer
| Wireless LAN | Yes |
|---|---|
| Chipset Model | B550 |
| Onboard Video | CPU Dependent Video |
| Product Model | B550I AORUS PRO AX |
| Audio Channels | 7.1 |
| Maximum Memory | 64 GB |
| RAID Supported | Yes |
| Controller Type | Serial ATA/600 |
| Package Contents | <ul> <li>Ultra Durable B550I AORUS PRO AX (rev. 1.0) Desktop Motherboard</li> <li>Norton Internet Security (OEM version)</li> <li>XSplit Gamecaster + Broadcaster (12 months license)</li> <li>Realtek 8125 Gaming LAN Bandwidth Control Utility</li> </ul> |
| Processor Socket | Socket AM4 |
| Country of Origin | China |
| Memory Technology | DDR4 SDRAM |
| Memory Form Factor | UDIMM |
| 2.5Gigabit Ethernet | Yes |
| Processor Supported | Ryzen 7 PRO |
| Chipset Manufacturer | AMD |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Memory Speed Supported | 2133 MHz |
| Number of Memory Slots | 2 |
| Number of USB 3.2 Ports | 6 |
| Manufacturer Part Number | B550I AORUS PRO AX |
| Maximum Memory Supported | 64 GB |
| Number of M.2 Interfaces | 2 |
| Number of SATA Interfaces | 4 |
| Total Number of USB Ports | 6 |
| Total Processor Supported | 1 |
| Manufacturer Website Address | http://www.gigabyte.us |
| Number of Network (RJ-45) Ports | 1 |
| Number of Onboard USB 2.0 Ports | 2 |
| Number of Onboard USB 3.2 Ports | 2 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of Expansion Slots | 1 |
| Total Number of Onboard USB Ports | 4 |
| Total Number of PCI Express Slots | 1 |
