AXIS COMMUNICATION INC

AXIS P3748-PLVE REMOTE PAN-TILT-ROLL ZOOM

SKU: SG5471VPN: 02898-001

AXIS P3748-PLVE REMOTE PAN-TILT-ROLL ZOOM

Key Features

  • Network camera - Helps achieve high-quality video results
  • Up to 3840 x 2160 video resolution
  • Features RGB CMOS sensor
  • 7.42 mm maximum focal length provides incredible detail and how effective is your network camera
  • f/1.6 maximum aperture for reliable, detailed, and sharp output with added dependability
  • 2.3x optical zoom ensures maximum surveillance productivity without compromising quality
  • 4K recording format for exceptional video quality with maximum productivity
  • Fixed camera iris is set all the way open to its lowest F stop, and is common on small form factor cameras
  • Varifocal lens type to ensure maximum surveillance productivity with added feasibility
  • PoE power source type for your network camera provides optimal performance with maximum usability
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

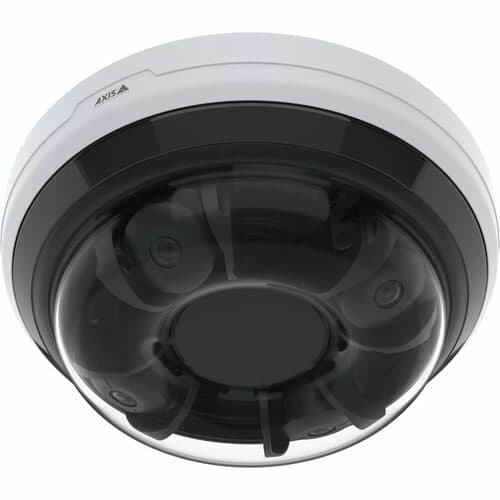

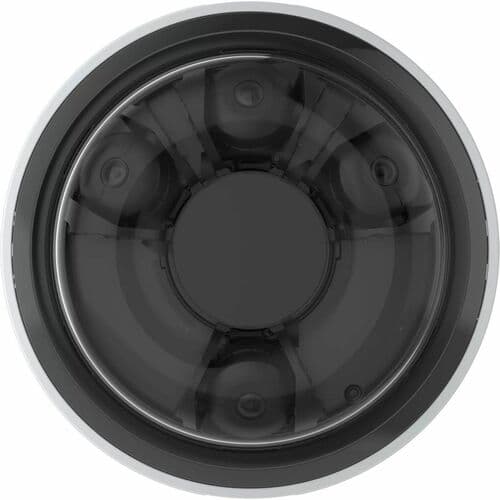

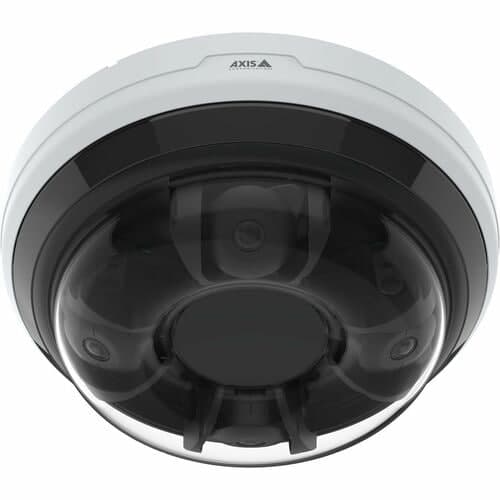

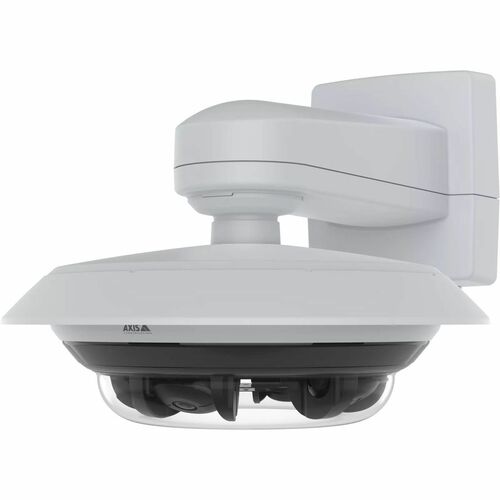

AXIS P3748-PLVE offers four channels with 4K per channel at 12.5/15 fps. It includes 360° IR illumination with individually controllable LEDs and a removable IR cut filter. All four sensors are fully motorized and PTRZ functionality ensures ease of installation and configuration. Plus, presets make it easy to configure multiple devices. This discreet camera can be mounted on ceilings for complete 360° coverage. Or corner mounted for 270° coverage. It supports advanced analytics on the edge. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-2 Level 2 certified secure key storage and operations

  • 4x8 MP at 12.5/15 fps per channel
  • Remote pan, tilt, roll, zoom (PTRZ)
  • Support for powerful analytics
  • 360° IR illumination with individually controlled LEDs
  • Built-in cybersecurity with Axis Edge Vault

Tech Specs

AXIS P3748-PLVE REMOTE PAN-TILT-ROLL ZOOM specifications
FeaturesBuilt-in Speaker
Lens TypeVarifocal
ProtocolsZeroConf
AI-poweredYes
Brand NameAXIS
Mount TypeBracket Mount
Camera IrisFixed
Form FactorDome
Color FamilyWhite
HD RecordingYes
ManufacturerAxis Communications
Optical Zoom2.3x
Show all 63 specs
Product NameP3748-PLVE Panoramic Camera
Product TypeNetwork Camera
Storage TypeMemory Card
Audio SupportYes
Field of View54.5°-23°
Lens IncludedYes
Product ColorWhite
Product ModelP3748-PLVE
Video FormatsH.265
Indoor/OutdoorOutdoor
Product FamilyP37
Product SeriesP37
Color SupportedColor
Network (RJ-45)Yes
Maximum Aperturef/1.6
Minimum Aperturef/2.7
Package Contents<ul><li>P3748-PLVE Panoramic Camera</li><li>Installation Guide</li><li>Connector Guard</li><li>Cable Gasket</li><li>Mounting Plate</li><li>Dome Casing</li></ul>
Product MaterialPolycarbonate
Image Sensor Size1/2.9"
Image Sensor TypeRGB CMOS
Languages SupportDutch
Number of Sensors4
Power Source TypePoE
Recording Formats4K
Remote ManagementYes
Maximum Frame Rate15 fps
Ethernet TechnologyGigabit Ethernet
Maximum Focal Length7.42 mm
Minimum Focal Length3.18 mm
Weight (Approximate)6.61 lb
Longest Shutter Speed1/2 Second
Shortest Shutter Speed1/14000 Second
Connectivity TechnologyWired
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Impact Protection RatingIK10
Manufacturer Part Number02898-001
Maximum Video Resolution3840 x 2160
Ingress Protection RatingIP66
Maximum Power Consumption23.60 W
Wide Dynamic Range Detail120 dB
Effective Camera Resolution8 Megapixel
Maximum Storage Temperature149°F (65°C)
Minimum Storage Temperature-40°F (-40°C)
Infrared (IR) Cut-off FilterYes
Manufacturer Website Addresshttp://www.axis.com
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-40°F (-40°C)
Maximum Operating Humidity (Condensing)100%
Minimum Operating Humidity (Condensing)10%
Maximum Storage Humidity (Non-condensing)95%
Minimum Storage Humidity (Non-condensing)5%
