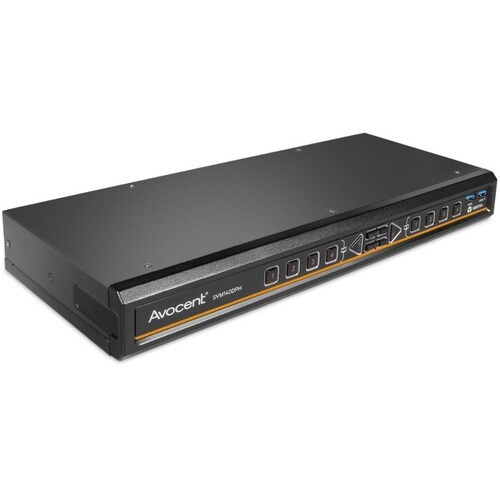

AVOCENT SV UNIV DP/H DESKTOP MATRIX 2X4 KVM
AVOCENT SV UNIV DP/H DESKTOP MATRIX 2X4 KVM
Key Features
- Simplify desktop access to essential business systems.
- Increase productivity with simple, rapid access to systems and peripherals
- Reduce costs with fewer peripheral purchases and easier IT maintenance.
- Gain high video quality image and video display.
- Safeguard important information with TAA compliant security.
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The Vertiv Avocent SwitchView Desktop Matrix offers fast and reliable access and control of up to four desktop computers using a single keyboard, monitor, and mouse. Both 4 or 8 port switch comes with a universal video connector that supports DP, HDMI, and DVI-D for resolutions up to UHD 4K. With this flexibility, users are not locked in to only input and output display types while also reducing the need for multiple cable types. Cursor Navigation Switching (CNS) simplifies and speeds up system access and allows seamless transitions between active computers when moving the cursor across screen borders. A managed copy-and-paste feature enables copying of files and text from one source computer to the other for seamless source integration. Up to three USB ports enable easy connectivity to external USB devices while also offering the ability to switch between audio and USB 3.0 peripherals independently.
Tech Specs
| DVI | No |
|---|---|
| USB | Yes |
| VGA | No |
| HDMI | Yes |
| Depth | 5" |
| Width | 13.7" |
| Height | 1.7" |
| PS/2 Port | No |
| Brand Name | Vertiv AVOCENT |
| DisplayPort | Yes |
| Energy Star | No |
| Form Factor | Desktop |
Show all 43 specsShow fewer
| Rack Height | 1U |
|---|---|
| Manufacturer | Vertiv |
| Product Line | SwitchView |
| Product Name | SVM140DPH Desktop Matrix Switch |
| Product Type | KVM Switchbox |
| Product Model | SVM140DPH |
| TAA Compliant | Yes |
| Product Family | SwitchView 100 |
| Product Series | 100 |
| Management Port | No |
| Network (RJ-45) | No |
| Package Contents | <ul> <li>SVM140DPH Desktop Matrix Switch </li> <li>Power Cord</li> </ul> |
| Country of Origin | United States |
| Packaged Quantity | 1 |
| Input Voltage Range | 100VAC-240VAC |
| Number of DVI Ports | 0 |
| Number of USB Ports | 4 |
| Number of VGA Ports | 0 |
| Number of HDMI Ports | 2 |
| Number of PS/2 Ports | 0 |
| Weight (Approximate) | 3 lb |
| Number of DisplayPorts | 2 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | SVM140DPH-400 |
| Maximum Operating Distance | 10 ft |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
| Number of Network (RJ-45) Ports | 0 |
| Number of Remote Users Supported | 0 |
