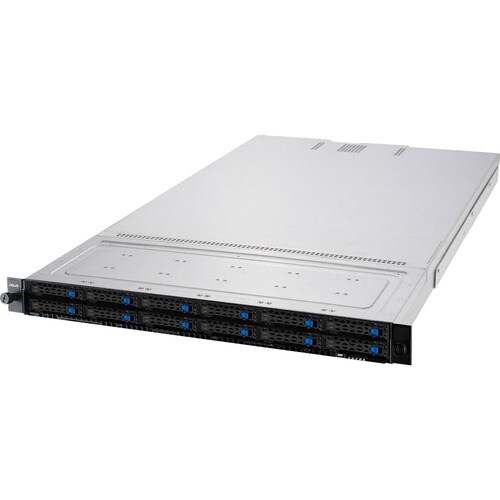

ASUS RS700-E10-RS12U-WOCPU006Z 1U DUAL-SOCKET SERVER32 DIMM 4NV

SKU: 9BN484VPN: RS700E10RS12UWOCU00Z

ASUS RS700-E10-RS12U-WOCPU006Z 1U DUAL-SOCKET SERVER32 DIMM 4NV

Key Features

  • Barebone System is compact, stylish, space-efficient, and portable, ideal for daily office and home use
  • Perform computational tasks efficiently with Xeon Bronze processor for smooth and reliable performance
  • Serial ATA/600 interface delivers fast data transfer and higher throughput, ensuring smooth performance for demanding workloads
  • Rack-mountable barebone system ensures clutter-free, organized setups with improved accessibility and efficiency
  • With 4 USB ports, connect or disconnect devices without shutting down the system for convenience
  • Gigabit Ethernet is highly efficient for large file transfers, making it ideal for backups and heavy data workflows
  • DDR4 SDRAM slot supports high-speed operation with low power use, delivering optimal performance and thermal efficiency
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

1U dual-socket server powered 3rd Gen Intel Xeon Scalable processors that supports up to 32 DIMMs, one dual-slot GPU, 12 NVMe, four PCIe lots, one OPC 3.0, one M.2 and ASUS ASMB10-iKVM.

  • Powered by dual-socket 3rd Gen Intel Scalable processors, with 32 DIMMs and support for a maximum TDP of up to 270 W per socket
  • GPU-optimized design allows one dual-slot GPU for AI workloads
  • Up to 12 all-flash NVMe drives on front panel to enable extensive storage and high-throughput performance

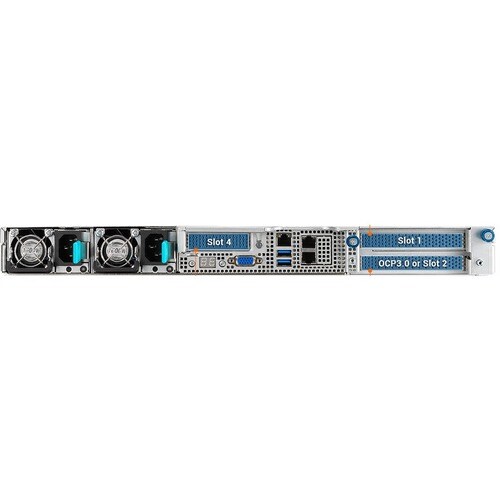

  • Up to three PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates
  • Flexible onboard LAN-module design to enable four 1 Gb LAN or two 10 Gb LAN options
  • Flexible air- and liquid-cooling solution to achieve lower power-usage effectiveness (PUE) and optimized TCO for data centers
  • Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
  • Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
  • High power efficiency with redundant 1600 W or 1200 W 80 Plus® Titanium/Platinum power supplies

Tech Specs

ASUS RS700-E10-RS12U-WOCPU006Z 1U DUAL-SOCKET SERVER32 DIMM 4NV specifications
Depth33.2"
Width17.3"
Height1.7"
ChipsetIntel C621A
Brand NameAsus
Form FactorRack-mountable
Rack Height1U
ManufacturerASUS Computer International
Product NameRS700-E10-RS12U Barebone System
Product TypeBarebone System
Chipset ModelC621A
Product ModelRS700-E10-RS12U
Show all 43 specs
Maximum Memory1 TB
RAID SupportedYes
Controller TypeSerial ATA/600
Memory StandardDDR4-3200/PC4-25600
Limited Warranty3 Year
Processor SocketSocket LGA-4189
64-bit ProcessingYes
Memory TechnologyDDR4 SDRAM
Ethernet TechnologyGigabit Ethernet
Number of PCI Slots4
Number of VGA Ports2
Processor SupportedXeon Bronze
Chipset ManufacturerIntel
Weight (Approximate)30.20 lb
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Graphics Memory Capacity64 MB
Manufacturer Part NumberRS700-E10-RS12U-WOCPU006Z
Maximum Memory Supported1 TB
Intel Optane Memory ReadyYes
Number of SATA Interfaces2
Total Number of USB Ports4
Manufacturer Website Addresshttp://usa.asus.com
Total Number of Memory Slots32
Number of USB 3.1 Gen 1 Ports2
Number of PCI Express x8 Slots1
Number of Processors Supported2
Number of Total Expansion Bays12
Number of PCI Express x16 Slots3
Number of Power Supplies Installed2
Supported Storage Drive InterfacesSerial ATA III
