ARUBA AP-503H US TAA UNIFIED AP PL-VL
SKU: 8DD184VPN: R3V39A

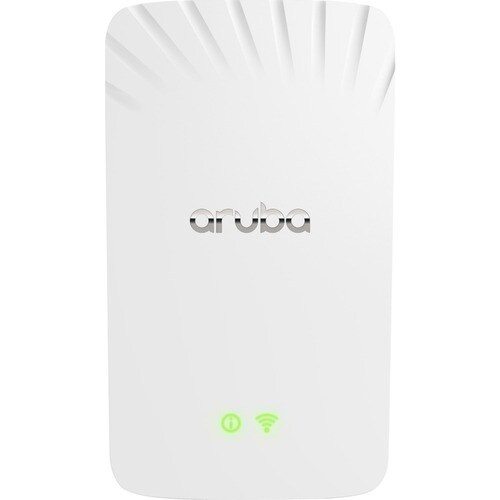

ARUBA AP-503H US TAA UNIFIED AP PL-VL
Key Features
- Combine wireless and wired access in a single compact form factor
- Ideal for organizations with work from home or teleworker initiatives
- Up to 1.5 Gbps of maximum wireless throughput
- 4 wired network ports and 1 Smart Rate uplink port
- WPA3 and Enhanced Open security
- Built-in technology that resolves sticky client issues for Wi-Fi 6 and Wi-Fi 5 devices
- OFDMA and MU-MIMO for enhanced multi-user efficiency
- IoT-ready Bluetooth 5 and Zigbee support
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
High performance and cost-effective Wi-Fi 6 (802.11ax) for hospitality, branch, and teleworker deployments
These economical Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing mobile, cloud and IoT requirements. With a wireless aggregate data rate of up to 1.5 Gbps and gigabit local wired ports, they deliver the range of connectivity options needed for venues such as hotels, residence halls, and remote offices alike.
INCREDIBLE EFFICIENCY
The 500H Series APs are designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients. Features include Orthogonal frequency-division multiple access (OFDMA), multi-user MIMO and cellular optimization. With up to 2 spatial streams (2SS) and 80MHz channel bandwidth, the 500H Series provides groundbreaking wireless capabilities for budget-conscious deployments.
These economical Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing mobile, cloud and IoT requirements. With a wireless aggregate data rate of up to 1.5 Gbps and gigabit local wired ports, they deliver the range of connectivity options needed for venues such as hotels, residence halls, and remote offices alike.
INCREDIBLE EFFICIENCY
The 500H Series APs are designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients. Features include Orthogonal frequency-division multiple access (OFDMA), multi-user MIMO and cellular optimization. With up to 2 spatial streams (2SS) and 80MHz channel bandwidth, the 500H Series provides groundbreaking wireless capabilities for budget-conscious deployments.
Tech Specs
| Depth | 1.6" |
|---|---|
| Width | 3.4" |
| Height | 5.9" |
| Brand Name | HPE |
| Form Factor | Desktop |
| PoE PD Port | Yes |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | AP-503H Wireless Access Point |
| Product Type | Wireless Access Point |
| Product Model | AP-503H |
| TAA Compliant | Yes |
| Frequency Band | 5 GHz |
Show all 30 specsShow fewer
| Product Family | 500H |
|---|---|
| Product Series | 500H |
| Data Encryption | Yes |
| MIMO Technology | Yes |
| Management Port | Yes |
| Power Consumption | 10 W |
| Bluetooth Standard | Bluetooth 5 |
| Encryption Standard | WPA3 |
| Ethernet Technology | Gigabit Ethernet |
| Weight (Approximate) | 10.23 oz |
| Wireless LAN Standard | 802.11ax |
| Beamforming Technology | Yes |
| Manufacturer Part Number | R3V39A |
| Total Number of Antennas | 2 |
| Number of Internal Antennas | 2 |
| Wireless Transmission Speed | 1.50 Gbit/s |
| Manufacturer Website Address | http://www.hpe.com |
| Number of Network (RJ-45) Ports | 3 |
