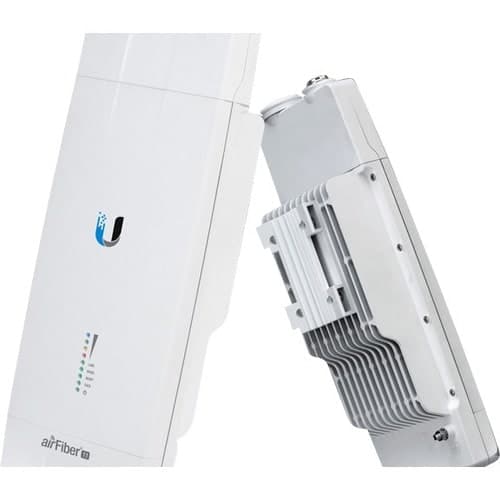

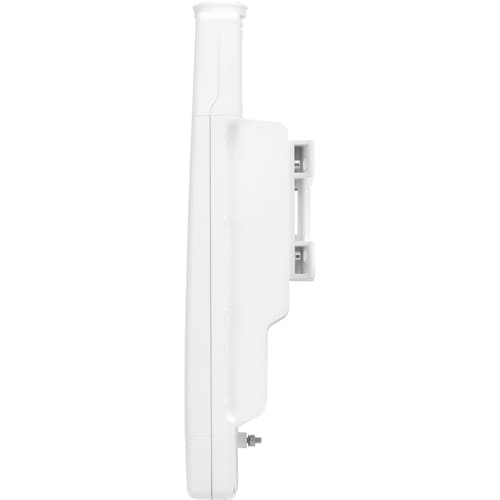

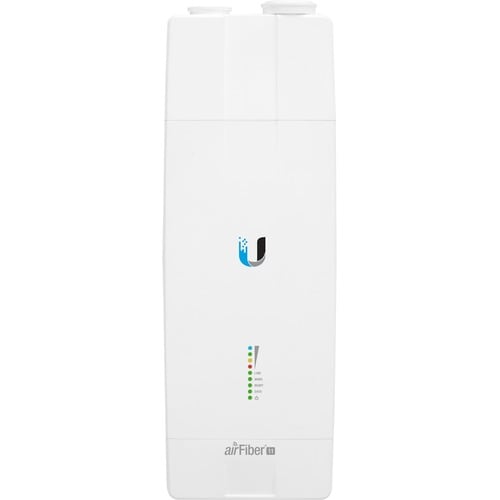

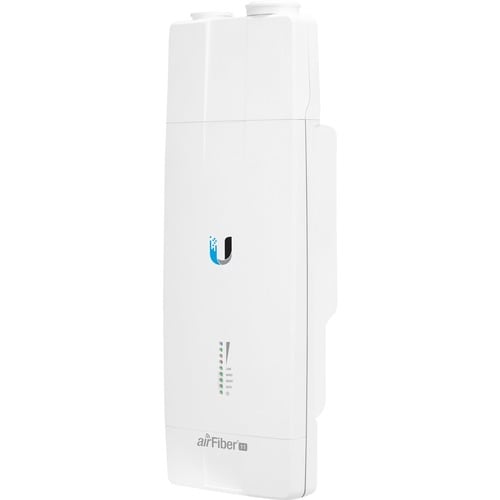

AIRFIBER 11
SKU: 7ZN209VPN: AF-11
AIRFIBER 11
Key Features
- Full-Duplex, Point-to-Point Radio
- 11 GHz Frequency Operation
- Up to 1.2+ Gbps Throughput
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
Ubiquiti continues to disrupt the wireless broadband market with revolutionary technology at breakthrough pricing, by introducing the airFiber® AF-11, a radio purpose-built for outdoor PtP bridging and carrier-class network backhauls using the licensed 11 GHz radio band.
The AF-11 breaks free from the congested 5 GHz band to help meet the growing need for broadband capacity.

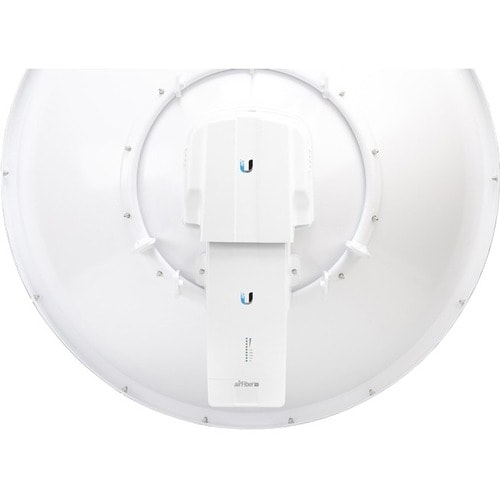

For maximum flexibility, the airFiber AF-11 works with the Ubiquiti® AF-11G35 antenna, or with most third-party antennas using an optional adapter kit (not included).
Groundbreaking Design
The AF-11 gives exceptional performance compared to other 11 GHz radios in its price range. Unlike other products that use adaptations of Wi-Fi-based designs, the AF-11 is specially engineered for the 11 GHz band, with a custom modem and radio design optimized for the efficient transport of data.
Product Advantages
True Full-Duplex Design
The AF-11 offers a true FDD solution that fully satisfies all licensing requirements for the 11 GHz band.
Ultra-Low Latency
Overall customer experience and system capacity are enhanced with FDD performance.
Enhanced Robustness
The AF-11 uses managed licensed frequencies to create a robust, interference-free link that provides the maximum possible throughput.
Extended Range
The RF power amplifiers feature a unique bias scheme, allowing high-order constellations at longer ranges.
Channel Configuration
Optimized Channels

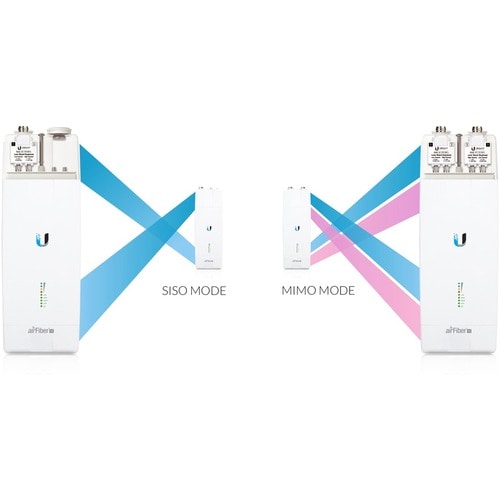

The airFiber AF-11 can use single (SISO) or bonded (MIMO) channels, depending on your specific licensing requirements. The AF-11 also features different channel width sizes to suit your deployment needs, and you can independently configure TX and RX channel frequencies.
Reconfigurable Duplexers
The AF-11 features a unique modular duplexer design to suit multiple frequency configurations.
Each AF-11 radio can be configured to support any allowable frequency by simply changing the duplexers (sold separately) for high-band or low-band use in the 10.7 - 11.7 GHz allocation.
Each duplexer has a low channel and a high channel that can be configured by simply reversing the position of the duplexer.
Highest Performance Value
The compact AF-11 supports high-order constellations - up to 1024QAM - allowing it to deliver the greatest spectral efficiency in its class.
Advanced Engineering

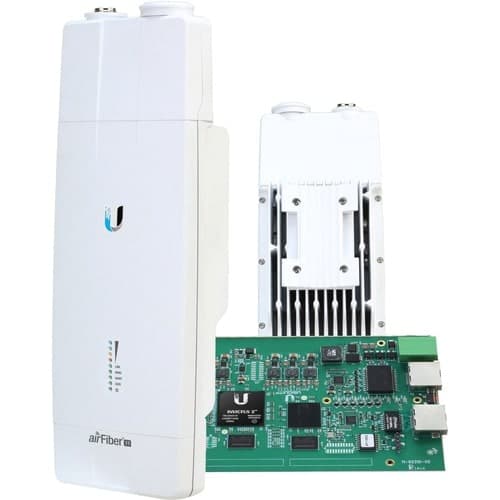

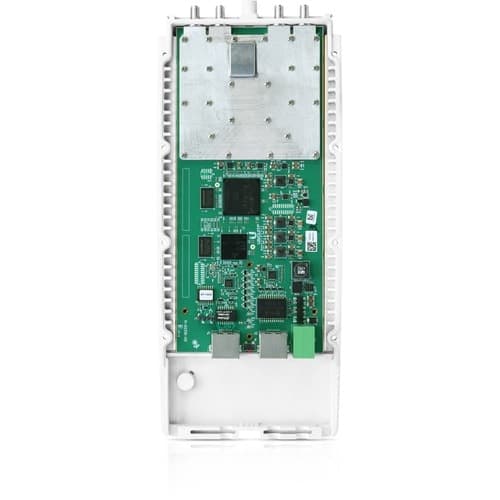

Ubiquiti's INVICTUS™ 2 custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications, providing superior performance, long-range capability, and higher delivered throughput.
Deployment Flexibility
The airFiber AF-11 provides a number of deployment options including:
Power Source Options
Support for PoE or DC power gives you the flexibility to power the AF-11 separately from Ethernet traffic.

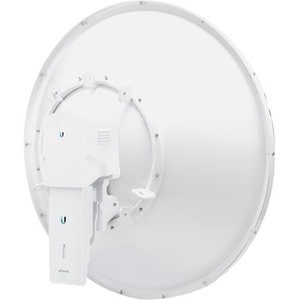

N-connectors allow the AF-11 to be used with either the Ubiquiti AF-11G35 antenna or a variety of commonly available antennas.
Specially designed silicone boots provide a weatherproof barrier against dust and moisture.
The AF-11 breaks free from the congested 5 GHz band to help meet the growing need for broadband capacity.
For maximum flexibility, the airFiber AF-11 works with the Ubiquiti® AF-11G35 antenna, or with most third-party antennas using an optional adapter kit (not included).
Groundbreaking Design
The AF-11 gives exceptional performance compared to other 11 GHz radios in its price range. Unlike other products that use adaptations of Wi-Fi-based designs, the AF-11 is specially engineered for the 11 GHz band, with a custom modem and radio design optimized for the efficient transport of data.
Product Advantages
True Full-Duplex Design
The AF-11 offers a true FDD solution that fully satisfies all licensing requirements for the 11 GHz band.
Ultra-Low Latency
Overall customer experience and system capacity are enhanced with FDD performance.
Enhanced Robustness
The AF-11 uses managed licensed frequencies to create a robust, interference-free link that provides the maximum possible throughput.
Extended Range
The RF power amplifiers feature a unique bias scheme, allowing high-order constellations at longer ranges.
Channel Configuration
Optimized Channels
The airFiber AF-11 can use single (SISO) or bonded (MIMO) channels, depending on your specific licensing requirements. The AF-11 also features different channel width sizes to suit your deployment needs, and you can independently configure TX and RX channel frequencies.
Reconfigurable Duplexers
The AF-11 features a unique modular duplexer design to suit multiple frequency configurations.
Each AF-11 radio can be configured to support any allowable frequency by simply changing the duplexers (sold separately) for high-band or low-band use in the 10.7 - 11.7 GHz allocation.
Each duplexer has a low channel and a high channel that can be configured by simply reversing the position of the duplexer.
Highest Performance Value
The compact AF-11 supports high-order constellations - up to 1024QAM - allowing it to deliver the greatest spectral efficiency in its class.
Advanced Engineering
Ubiquiti's INVICTUS™ 2 custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications, providing superior performance, long-range capability, and higher delivered throughput.
Deployment Flexibility
The airFiber AF-11 provides a number of deployment options including:

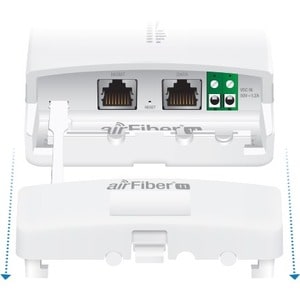

Power Source Options
Support for PoE or DC power gives you the flexibility to power the AF-11 separately from Ethernet traffic.

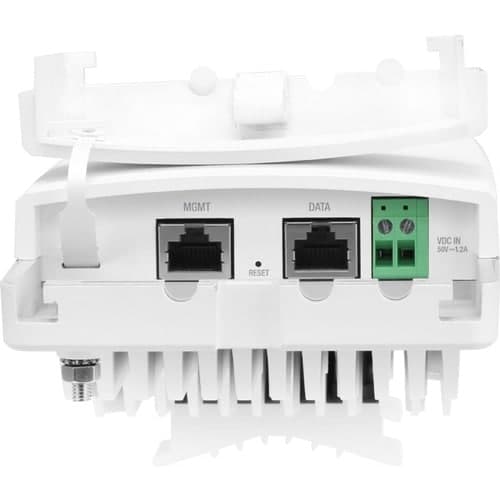

- PoE power can be supplied on the DATA port, using the provided PoE adapter.
- DC power can be supplied using the terminal block.
N-connectors allow the AF-11 to be used with either the Ubiquiti AF-11G35 antenna or a variety of commonly available antennas.
Specially designed silicone boots provide a weatherproof barrier against dust and moisture.
Tech Specs
| Depth | 3.4" |
|---|---|
| Width | 4.4" |
| Height | 12.9" |
| Brand Name | Ubiquiti |
| Manufacturer | Ubiquiti Inc. |
| Product Line | airFiber |
| Product Name | Licensed Backhaul Radio |
| Product Type | Radio Modem |
| Product Model | AF-11 |
| Product Family | airFiber |
| Network (RJ-45) | Yes |
| Package Contents | <ul> <li>Licensed Backhaul Radio</li> <li>50VDC, 1.2A PoE Gigabit Adapter</li> <li>Pole Mount</li> </ul> |
Show all 19 specsShow fewer
| Ethernet Technology | Gigabit Ethernet |
|---|---|
| Weight (Approximate) | 5 lb |

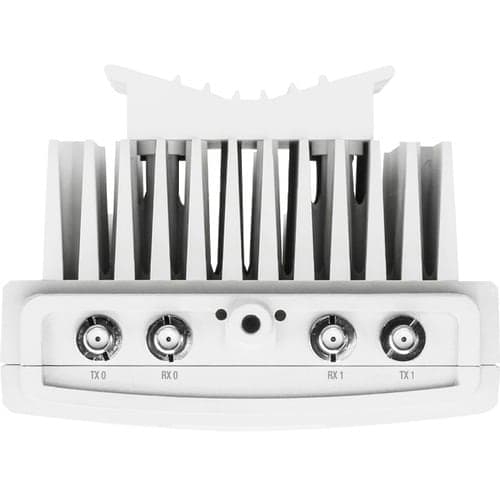

| Additional Information | <ul> <li>RF Connectors: 4 x SMA Weatherproof: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1) (2) N-Type Waterproof, One per Duplexer</li> <li>Power Method: Passive Power over Ethernet Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-) or DC Power Block</li> <li>Max. Power Consumption: 36W</li> <li>Supported Voltage Range: 38-56VDC</li> <li>Automatic Transmit Power Control (ATPC): Yes</li> <li>Operating Temperature: -40 to 55° C (-40 to 131° F)</li> <li>Management Port: 1 x 10/100 Ethernet Port</li> <li>Processor: INVICTUS 2 IC</li> <li>Maximum Throughput: 1.2+ Gbps</li> <li>Maximum Range: 300+ km</li> <li>Encryption: 128-bit AES</li> <li>OS: airOS® F</li> <li>Wireless Modes: SISO/MIMO</li> <li>MTU (Maximum Transmission Unit): Up to 9600</li> <li>Frequency Range: 10.7-11.7 GHz</li> <li>Max. Conducted TX Power: 30 dBm (Dependent on Regulatory Region)</li> <li>Frequency Accuracy: ± 2.0 ppm</li> <li>Channel Bandwidth: 3.5/5/7/10/14/20/28/30/40/50/56 MHz Selectable</li> </ul> |
| Manufacturer Part Number | AF-11 |
| Certifications & Standards | <ul> <li>CE</li> <li>FCC</li> <li>IC</li> </ul> |
| Manufacturer Website Address | http://www.ui.com |
| Number of Network (RJ-45) Ports | 1 |
