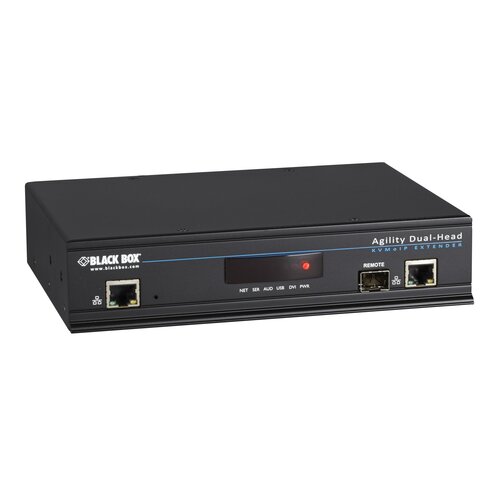

AGILITY IP BASED KVM RECEIVER DH

SKU: SL7828VPN: ACR1020A-R

In Stock

$2,494.07$2,197.16

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Dual-head with VNC port for remote access and management.
Maximum resolution is 1920x1080.
No-loss compression minimizes bandwidth use while maximizing the user experience.
Scalable high performance IP-Based KVM Extender and KVM Matrix system.
Magic Eye support to handle dithered video graphics.

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Pixel-perfect Dual Head DVI-D, USB HID, USB2.0, audio, serial support with fast switch times in a scalable IP-based KVM Extender/Matrix system. The Agility IP-Based KVM Extension system transmits Dual Head DVI-D video USB USB2.0 and audio signals via an Ethernet local area network (LAN). Send signals up to 330 feet (100 m) or even farther with the addition of network switches. Use the Agility Controller to enable remote secure configuration of transmitters and receivers via a Web browser. The Agility system offers a flexible topology of switching and extension. Use it in point-to-point KVM extension to multicast HD video or for single-target sharing. Agility transmits pixel-perfect video with no-loss compression minimizing bandwidth use while maximizing user experience. Maximum resolution is 1920x1080.

Tech Specs

AGILITY IP BASED KVM RECEIVER DH specifications
DVI	Yes
USB	Yes
Headphone	Yes
Brand Name	Black Box
Microphone	Yes
Device Type	KVM Extender
Graphic Mode	Full HD
Manufacturer	Black Box Corporation
Product Name	Agility KVM-Over-IP Matrix, Dual-Head DVI-D, USB 2.0, KVM Receiver
Product Type	KVM Extender Receiver
TAA Compliant	Yes
Receiver Depth	4.80"

Show all 29 specs

Receiver Width	7.92"
Network (RJ-45)	Yes
Receiver Height	1.76"
Country of Origin	United Kingdom
Number of DVI Ports	2
Number of USB Ports	4
Additional Information	<p><b>This product works with:</b></p> <ul> <li>192-Endpoint KVM-over-IP Matrix iPATH Controller</li> <li>24-Endpoint KVM-over-IP Matrix iPATH Controller</li> <li>288-Endpoint KVM-over-IP Matrix iPATH Controller</li> <li>48-Endpoint KVM-over-IP Matrix iPATH Controller</li> <li>96-Endpoint KVM-over-IP Matrix iPATH Controller</li> <li>KVM-Over-IP Matrix, Dual-Head DVI-D,USB 2.0, KVM Transmitter</li> </ul>
Connectivity Technology	Wired
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmentally Friendly	Yes
Manufacturer Part Number	ACR1020A-R
Maximum Video Resolution	1920 x 1080
Maximum Operating Distance	330 ft
Manufacturer Website Address	http://www.blackbox.com
Receiver Weight (Approximate)	1.76 lb
Number of Local Users Supported	2
Number of Network (RJ-45) Ports	2
