LEGRAND AV - C2G

ADPTR RING DPMDPUSB-C VGA UNIV RETRAC

SKU: SG6913VPN: C2G29892

ADPTR RING DPMDPUSB-C VGA UNIV RETRAC

Key Features

  • Adapters support up to a 4K video resolution, so meeting attendees will be able to see the displayed content for improved comprehension and detailed decision making
  • The included Lightning adapter supports up to a 1080p video resolution
  • The DisplayPort, Mini DisplayPort, and USB-C adapters are color coded, so no more frustration trying to find the adapter that you typically use for your laptop
  • Integrated pull tab, so the adapters can be accessed quickly or easily reached when they are tucked away
  • Retractable Universal Mount attaches to any flat surface, providing flexibility when installing
  • Installation tools are included, so you save time and money by not needing to purchase any additional tools
  • Backed by a Lifetime Warranty for peace of mind
  • Connector 1: (4) HDMI Female
  • Connector 2: (1) DisplayPort Male, (1) Mini DisplayPort Male, (1) USB-C Male, (1) VGA Male
  • Certifications: NDAA 889, Prop 65, REACH, RoHS, TSCA
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

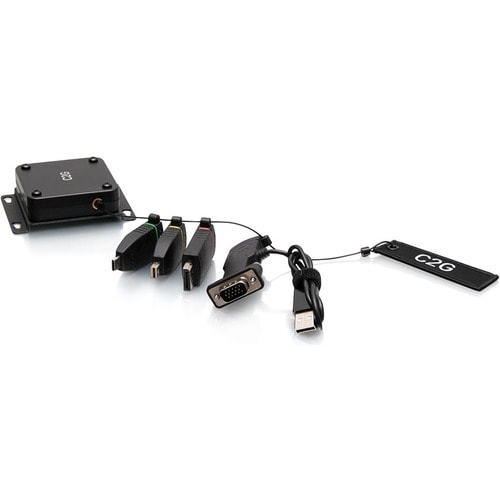

The Patented Retractable Universal 4K HDMI Adapter Ring is the perfect addition to conference rooms, huddle spaces, lecture halls, or classrooms to make sure that anyone can connect. The standard configuration includes the adapters to connect nearly any device to the in-room display while supporting up to a 4K video resolution. C2G offers various connection combinations that can include HDMI to DisplayPort, Lightning, Mini DisplayPort, Micro HDMI, Mini HDMI, USB-C, VGA adapters to meet connectivity challenges. If you need additional connectivity, C2G has recently launched USB-A to USB-C Dongle Adapters that support USB 2.0 (480 Mbps) data only transmission.

Color Coded Adapters

Each adapter is color-coded with a band that saves time and frustration by making it easy to identify the adapter you need quickly.

Integrated Pull Tab

Quickly grab the adapters when you need them with the integrated Pull Tab that is also available to be customized to feature your company or organization logo. Minimum order quantities apply to customized Pull Tabs.

Retractable Universal Cable Mount

The Retractable Universal Mount attaches to any flat surface, like a table or lectern, providing mounting flexibility to fit your environment best. The retractor extends out to 4.9ft, ensuring that the adapters are always within reach when needed, and the retractor tested to over 20,000 extension cycles for long service life.

Tools Included

The tools for mounting the adapters and optional stopper are in the box to simplify the installation process. The innovative HDMI Cable Gauge Tool reduces stopper installation time by allowing the right-sized stopper insert, allowing for quick identification of the HDMI cable.

Tech Specs

ADPTR RING DPMDPUSB-C VGA UNIV RETRAC specifications
Brand NameC2G
ManufacturerLegrand Group
Product NameAdapter Kit
Product TypeAdapter Kit
NDAA CompliantYes
Package Contents<ul> <li>Adapter Kit</li> <li>Installation Tool</li> </ul>
Country of OriginChina
Recommended UsageTable
Additional Information<p><b>Additional Technical Specs</b> <li>DisplayPort Connector - Red</li> <li>100% Functional Test at 4K/30Hz Resolution with Standard AV Test Equipment</li> <li>Minimum Bend Radius: R52mm</li> <li>DisplayPort Male: Solder Type, Contacts: Gold Flash, Housing: LCP Black, Shell: Gold Plated (with Latches)</li> <li>Insulation Resistance: 10M OHMS/KM Min at 20°C DC 500V</li> <li>Conductor Resistance: At 20°C Max 32AWG: DP: 588.85 OHMS/KM</li> <li>Lightning Connector</li> <li>100% Functional Test at 1080p Resolution with Standard AV Test Equipment</li> <li>Mini DisplayPort Connector - Yellow</li> <li>100% Functional Test at 4K/30Hz Resolution with Standard AV Test Equipment</li> <li>Minimum Bend Radius: R52mm</li> <li>Mini DisplayPort Male: Solder Type, Contacts: Gold Flash, Housing: LCP Black, Shell: Gold Plated</li> <li>Insulation Resistance: 10M OHMS/KM Min at 20°C DC 500V</li> <li>Conductor Resistance: At 20°C Max 32AWG: mDP: 588.85 OHMS/KM</li> <li>Micro HDMI Connector - Orange</li> <li>Testing: 100% Functional Test at 4K/30Hz</li> <li>Minimum Bend Radius: 25mm (about 0.98 in)</li> <li>Micro HDMI; Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black, Shell: Nickel Plated</li> <li>Jacket Thickness: 0.51mm (about 0.02 in) AVG</li> <li>Conductor Resistance: at 20°C, 32AWG: 588Ω/KM; 34AWG: 959Ω/KM</li> <li>Insulation Resistance: 10 Ω/KM min at 20°C DC 500V</li> <li>Mini HDMI Connector - Gray</li> <li>Testing: 100% Functional Test at 4K/30Hz</li> <li>Minimum Bend Radius: 25mm (about 0.98 in)</li> <li>Mini HDMI; Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black, Shell: Nickel Plated</li> <li>Jacket Thickness: 0.51mm (about 0.02 in) AVG</li> <li>Conductor Resistance: at 20°C, 32AWG: 588Ω/KM</li> <li>Insulation Resistance: 10 Ω/KM min at 20°C DC 500V</li> <li>USB-C Connector - Green <li>100% Functional Test at 4K/60Hz/4:4:4 Resolution with Standard AV Test Equipment</li> <li>Minimum Bend Radius: R45mm</li> <li>USB Type-C Male: Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black, Shell: Gold Plated</li> <li>Insulation Resistance: PP/HD-PE DC 500V 100M OHMS/KM Min at 20°C</li> <li>Conductor Resistance: USB-C: 588 OHMS/KM; 24AWG: 86 OHMS/KM</li> <li>VGA Connector - Black</li> <li>Testing: 100% Functional Test at 1080p/60Hz</li> <li>VGA Male; Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black, Shell: Nickel Plated</li> <li>Minimum Bend Radius: 52mm</li> <li>Conductor Resistance: at 20°C, 32AWG: 588Ω/KM</li> <li>USB-A to USB-C Connector - Blue</li> <li>Testing: 100% Functional Test @ USB 2.0 (480 Mbps)</li> <li>Minimum Bend Radius: 25mm</li> <li>Connector 1: USB-A Male; Solder Type, Contacts: Brass, Gold Flash, Housing: PBT, White, Shell: Nickel Plated</li> <li>Connector 2: USB-C Female; Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black, Shell: Nickel Plated</li> <li>Jacket Thickness: 0.55mm AVG</li> <li>Temperature Rating: 105°C</li> <li>Insulation Resistance: 10 Ω/KM min at 20°C DC 500V</li> <li>Conductor Resistance: at 20°C Max, 28 AWG: 237Ω/KM; 24 AWG: 93Ω/KM</li>
Environmental ComplianceRestriction of Hazardous Substances (RoHS) 2
Manufacturer Part NumberC2G29892
Manufacturer Website Addresshttp://www.legrand.us
