8X8 HDMI 4K60HZ MATRIX SWITCHER WITH LCD 18GBPS HDCP 2.2 HDR 10

SKU: 14NW12VPN: CE-MX0011-S1

In Stock

$1,188.99$896.03

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Use this video switch box and eliminate the need to manually switch cables between the sources
A great solution for connecting tv
Up to 3840 x 2160 video resolution

Adding to inquiry lets you bundle multiple products into a single quote request.

Allows up to 8 HDMI source devices to be independently switched to 8 HDMI monitors, HDTVs or projectors, the eight output signals can be different or the same at the same time. Each HDMI output has independent analog audio outputs and coaxial S/PDIF port
Supports HDMI resolution up to 4K@60Hz YUV 4:4:4, HDR 10 and HDCP 2.2/1.4, Bandwidth up to 18Gbps and support 3D, HLG, Dolby Vision
Supports HDMI downscaling from 4K@60Hz to 1080p@60Hz
Supports analog audio embedded and HDMI audio extraction
Built-in 8 analog audio inputs, 8 analog audio outputs and 8 S/PDIF (Coaxial) audio outputs, analog audio for PCM 2.0, S/PDIF (Coaxial) audio up to PCM 5.1, Dolby Digital, DTS; HDMI for PCM 2.0 to 7.1/16 to 24bit, Dolby / DTS / Dolby Atmos / DTS-HD
Support HDMI ARC on Coaxial only and EDID management

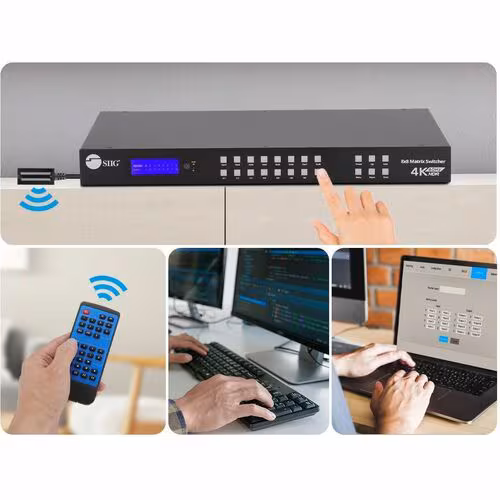

Controllable via front-panel button, IR remote, RS-232, IP and Web GUI, firmware upgrade via RS-232 interface
LCD screen shows real-time I/O connection status, The Ethernet port supports Telnet, UDP, HTTP and TCP/IP

Show all 29 specs

Product Model	CE-MX0011-S1
Graphics Modes	4K
Device Supported	TV

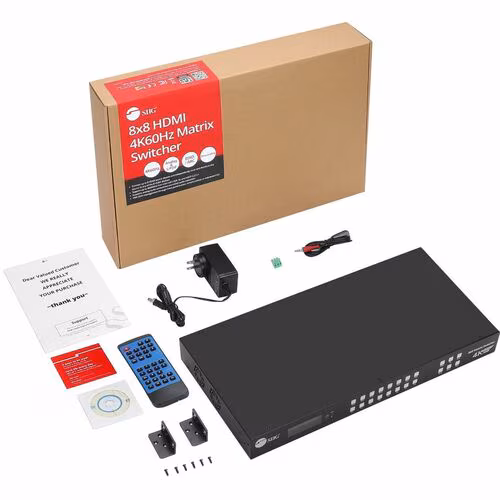

Package Contents	<ul><li> 8x8 HDMI 4K60Hz Matrix Switcher</li><li> Mounting Kit, 2x Mounting Ears with 6 Screws</li><li> IR Remote Control</li><li> IR RX cable</li><li> Power Adapter DC 12V/3A</li><li> 3-pin Terminal Block</li><li> CD for Control Software and User Manual</li><li> User Manual</li></ul>
Country of Origin	China
Connectivity (RJ-45)	Yes
Weight (Approximate)	6.16 lb
Number of HDMI Inputs	8
Number of HDMI Outputs	8
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	CE-MX0011-S1
Maximum Video Resolution	3840 x 2160
Manufacturer Website Address	http://www.siig.com
Number of Displays Supported	8
Number of Input Devices Supported	8
Number of Connectivity (RJ-45) Ports	1
