STARTECH.COM

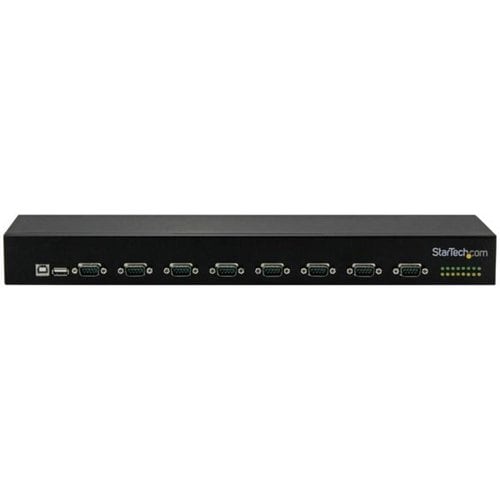

8PT USB TO SERIAL RS232 ADAPTER USB TO RS232 DB9 CONVERTER CABLE

SKU: 6F5153VPN: ICUSB23208FD

8PT USB TO SERIAL RS232 ADAPTER USB TO RS232 DB9 CONVERTER CABLE

Key Features

  • Gain eight RS232 serial port interfaces through a single USB port
  • Connect multiple hubs together through daisy chain functionality
  • 921.6Kbps baud rate per port
  • Rack-mountable design with durable all-metal chassis
  • Extended operating temperature range: -40°C to 85°C (-40°F to 185°F)
  • 256-byte transmit, 128-byte receive FIFO
  • COM port retention
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

This 8-port USB-to-serial adapter hub provides an easy and cost-efficient way to add RS232 serial capability to your industrial setting. It features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count. A scalable solution for changing needs This rack-mountable USB serial hub (FTDI) lets you add eight serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a more expensive serial hub. Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems. Built-in convenience The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer. The hub features a reliable FTDI USB-to-serial chipset, which provideseasy installation into a broad range of operating systems. Meets the demands of industrial environments With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F), ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options. The ICUSB23208FD is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Tech Specs

8PT USB TO SERIAL RS232 ADAPTER USB TO RS232 DB9 CONVERTER CABLE specifications
Width4.7"
Height1.8"
Brand NameStarTech.com
Form FactorExternal
ManufacturerStarTech.com
Product Name8-Port USB-to-Serial Adapter Hub
Product TypeSerial Hub
TAA CompliantYes
Host InterfaceUSB 2.0
Package Contents<ul> <li>8-Port USB-to-Serial Adapter Hub</li> <li>1 x USB 2.0 Cable</li> <li>2 x Rack-mounting Brackets</li> <li>8 x Rack-mounting Screws</li> <li>2 x Din-rail Mounting Brackets</li> <li>4 x Din-rail Mounting Screws</li> <li>4 x Washers</li> <li>4 x Nuts</li> <li>1 x Universal Power Adapter (NA/JP, UK, EU, AU)</li> <li>1 x Driver CD</li> <li>1 x Terminal Block Plug</li> <li>1 x Quick Start Guide</li> </ul>
Country of OriginTaiwan
Packaged Quantity1
Show all 21 specs
Platform SupportedMac
Weight (Approximate)3.09 lb
Additional Information<p><b>OS Compatibility:</b></p> <ul> <li>Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11</li> <li>Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022</li> <li>macOS 10.6 to 10.15, 11.0, 12.0, 13.0</li> <li>Linux 2.4.x and up - LTS Versions only</li> </ul>
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Environmentally FriendlyYes
Manufacturer Part NumberICUSB23208FD
Environmental CertificationEU RoHS
Manufacturer Website Addresshttp://www.startech.com
Number of Serial Ports (External)8
