VERTIV-IT SYSTEMS

8PORT 1U ANALOG KVM 8VGA CABLES 1U/DESKTOP

SKU: 3CB084VPN: AV108BND8-400

8PORT 1U ANALOG KVM 8VGA CABLES 1U/DESKTOP

Key Features

  • Switch between sources by using this KVM Switchbox without degradation of performance and eliminate the manual work
  • Switch between 8 computers and 1 local users
  • Enjoy watching any class of content on 2048 x 1536 resolution
  • Hot-pluggable USB interface for a quick connection
  • Designed to be used as a rack-mountable
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

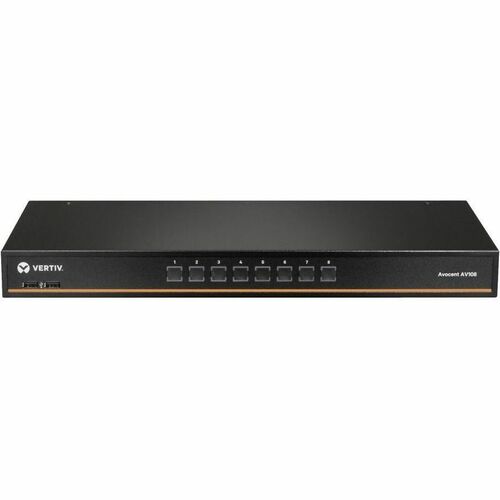

The Vertiv Avocent AV108BND8 is an AutoView 108 (AV108) bundle that contains an 8-port KVM switch and 8 VGA target (CBL0170) cables. This compact, entry-level solution to local server management for small data centers, branch offices, and IT rooms. The straightforward user experience consists of a basic KVM feature set with simple touch button, hotkey operation, and cascade support. It delivers streamlined local access and control designed to be available when needed with user-friendly features for controlling all devices and tasks. The AV108 KVM switch is available in 1U, 0U, and desktop configurations and is easy to configure and maintain. It offers centralized access, management, and event logging when requirements don't allow remote (IP) connectivity to the server.

Tech Specs

8PORT 1U ANALOG KVM 8VGA CABLES 1U/DESKTOP specifications
USBYes
VGAYes
Depth4.8"
Width17"
Height1.7"
Frequency50 Hz
Brand NameVertiv AVOCENT
Device TypeRack KVM
DisplayPortYes
Form FactorDesktop
Rack Height1U
Serial PortYes
Show all 39 specs
ManufacturerVertiv
Product LineAutoView
Product NameAutoView AV 100 AV 108BND8-400 KVM Switchbox
Product TypeKVM Switchbox
Input Voltage120 V AC
Product ModelAV 108BND8-400
KVM TechnologyAnalog
Product FamilyAutoView AV 100
Product SeriesAV 100

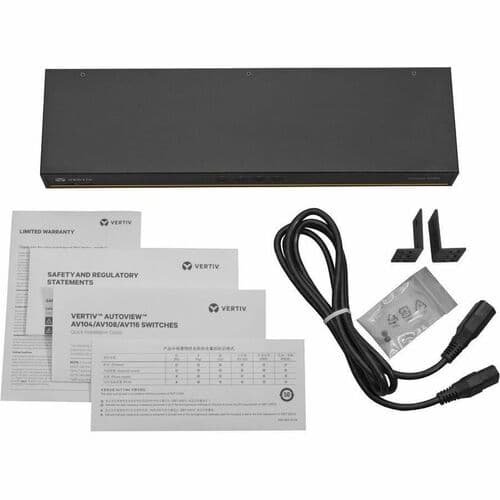

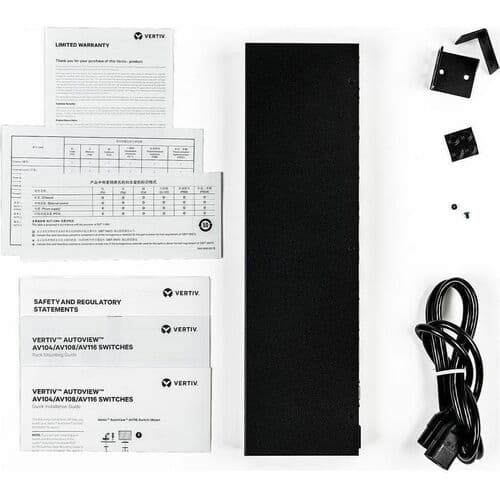

Package Contents<ul> <li>AV 108BND8-400 KVM Switchbox</li> <li>8 x CBL0170 Cables</li> </ul>
Country of OriginMexico
Power Consumption10 W
Input Voltage Range100V-240V AC
Number of USB Ports5
Number of VGA Ports1
Weight (Approximate)3.60 lb
Proprietary InterfaceYes
Connectivity TechnologyWired
Manufacturer Part NumberAV108BND8-400
Maximum Video Resolution2048 x 1536
Certifications & Standards<ul> <li>UL</li> <li>FCC Class A</li> <li>cUL</li> <li>ICES Class A</li> <li>CE</li> <li>EAC</li> <li>VCCI Class A</li> <li>KCC Class A</li> <li>RCM</li> <li>BSMI</li> </ul>
Number of Proprietary Ports8
Manufacturer Website Addresshttp://www.vertiv.com/
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature32°F (0°C)
Number of Computers Supported8
Number of Local Users Supported1
