86IN LCD STRETCH MNTR 58:9 500NIT 24/7 LAND/PORT HDMI DP

SKU: 9VA026VPN: 86BH5F-M

In Stock

$2,698.11

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

IPS Display with wide viewing angle so customers can see from virtually anywhere
Life time of 50,000 hrs. & can operate 24/7
Built-in Wi-Fi
Portrait or landscape, tile mode, 4PBP to create the best customer experience
IP5X Durability Rating
Compatible with LG SuperSign CMS and other LG software

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen

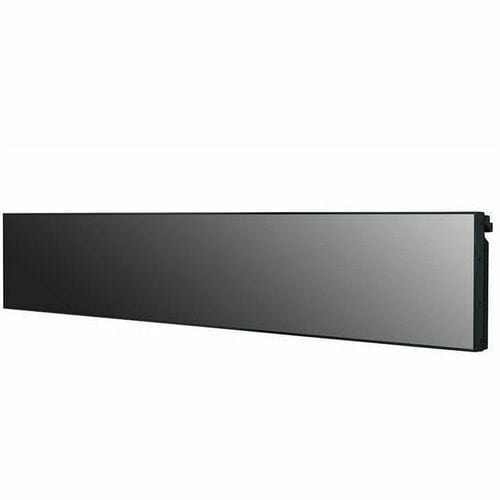

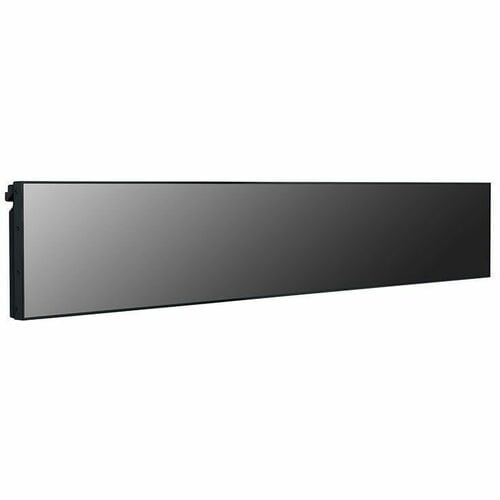

The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction.

58:9 Extended Wide Format

It is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content than the conventional display of 16:9 ratio.

Ultra HD Resolution (3,840 x 600)

Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.

Multi Screen Mode with 4PBP

The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.

Tiled Scene with Immersive View

The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.

User-Friendly UX

The 86BH5F is equipped with a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, OSD can also be adjusted accordingly.

LAN Daisy Chain Management

By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.

Real-Time Monitoring with ConnectedCare

Easier and faster maintenance are available with our optional cloud service solution ConnectedCare. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.

Tech Specs

86IN LCD STRETCH MNTR 58:9 500NIT 24/7 LAND/PORT HDMI DP specifications
Depth	3.2"
Width	85"
Height	13.7"
DVI-D In	Yes
Features	Picture by Picture (PbP)
Speakers	No
Bluetooth	No
Brand Name	LG
Brightness	500 Nit
USB Type-C	No
Bezel Color	Black
Color Depth	10-bit

Show all 71 specs

Color Gamut	72% NTSC
Energy Star	No
Orientation	Landscape/Portrait
Aspect Ratio	58:9
Embedded CMS	Local Contents Scheduling
HDCP Version	1.4/2.2
Manufacturer	LG Electronics
Product Name	86BH5F-M Digital Signage Display
Product Type	Digital Signage Display
Wireless LAN	Yes
Audio Line In	Yes
Input Voltage	230 V AC
Product Model	86BH5F-M
RS-232C Input	Yes
Response Time	8 ms
TAA Compliant	Yes
Audio Line Out	Yes
DisplayPort In	Yes
RS-232C Output	Yes
Infrared Output	No
Operation Hours	24 Hours/7 Days
Maximum LED Life	5.7 Year
Operating System	webOS 4.0
Package Contents	<li>Remote Controller (including battery 2ea)</li><li> Power Cord</li><li> DP cable</li><li> RS-232C Cable</li><li> IR/Light sensor receiver</li><li> Manual</li>
Panel Technology	In-plane Switching (IPS) Technology
Power Consumption	240 W
Display Resolution	3840 x 600
DisplayPort Output	Yes
Multi-touch Screen	No
Compatible Software	SuperSign
Country of Assembly	South Korea
VESA Mount Standard	600 x 200
Viewable Screen Size	86"
Weight (Approximate)	45.20 lb
Native Contrast Ratio	1,100:1
Number of HDMI Inputs	3
Standard Refresh Rate	60 Hz
Additional Information	<li>Surface Treatment (Hard Coating) : No</li> <li>Surface Treatment (Anti Glare) : No</li> <li>Anti-Reflective : No</li> <li>Transparency : No</li> <li>Internal Memory : 8 GB (eMMC)</li> <li>Cisco Certified Compatibility : No</li> <li>BTU Heat Generation (Typ.) : 751 BTU</li> <li>Direct Sunlight : No</li> <li>Bezel Width (Off Bezel) : T: 5.9 mm, R/L: 4.4 mm, B: 5.9 mm</li> <li>External Speaker Out (3.5 mm) : No</li> <li>Power Loop Out : No</li> <li>HDMI Out : No</li> <li>Power Loop In : No</li> <li>RGB In : No</li> <li>Power In (DC From External PWR Box) : No</li> <li>Anti-Reflective Coating : No</li> <li>Heater : No</li> <li>Anti-Reflective Film : No</li> <li>Heat Dissipation : No</li> <li>Degree of Protection : No</li> <li>OPS Power Built-in : No</li> <li>OPS Compatible : No</li> <li>SI Server Setting : No</li> <li>Idiom® : No</li> <li>UL Certification : No</li> <li>DisplayPort In : Yes (x1) HDCP 2.2/1.3</li> <li>IR In (3.5 mm) : Yes</li> <li>RS-232C In (3.5 mm 4-pin) : Yes (x1)</li> <li>RS-232C In (D-sub 9-pin) : No</li> <li>RS-232C Out (3.5 mm) : Yes (x1)</li> <li>Power Type : Built-in Power</li> <li>Local Key Operation: Yes</li>
Dynamic Contrast Ratio	500,000:1
Vertical Viewing Angle	178°
Content Synchronization	RS-232C
Maximum Heat Generation	864.1 kJ
Number of USB 2.0 Ports	2
Power Consumption (DPM)	0.5W
Horizontal Viewing Angle	178°
Manufacturer Part Number	86BH5F-M
Number of Audio Line Out	1
Certifications & Standards	<li>FCC: EMC Class A</li> <li>CE Marking (Regulatory): Yes</li>
Maximum Operating Humidity	80%
Minimum Operating Humidity	10%
Off-Mode Power Consumption	500 mW
Manufacturer Website Address	https://solutions.lg.com/us
Maximum Operating Temperature	104°F (40°C)
Minimum Operating Temperature	32°F (0°C)
Number of DisplayPort Outputs	1
Ingress Protection (IP) Rating	IP5X
Number of Network (RJ-45) Ports	1
On Screen Display (OSD) Languages	Chinese
Image Sticking Minimization (ISM) Method	Yes
