LG COMMERCIAL LFD

86IN LCD 3840X2160 4K MNTR 500NIT WEBOS 6.0 HDMI DP RJ45 SPKR

SKU: SB2223VPN: 86UH5N-M

86IN LCD 3840X2160 4K MNTR 500NIT WEBOS 6.0 HDMI DP RJ45 SPKR

Key Features

  • 86 inch UHD (3,840 × 2,160) display with 500 nits brightness creates clear, crisp images
  • The ultra slim bezel & cable management allows it to sit close to the wall
  • LG webOS™ 6.0 smart signage platform provides enhanced user convenience with an intuitive GUI
  • Enhanced security features ensure your customer's data is secure
  • Compatible with LG SuperSign and ConnectedCare DMS for easy management (Sold separately)
  • 24/7 use with lifetime up to 50,000 hrs
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

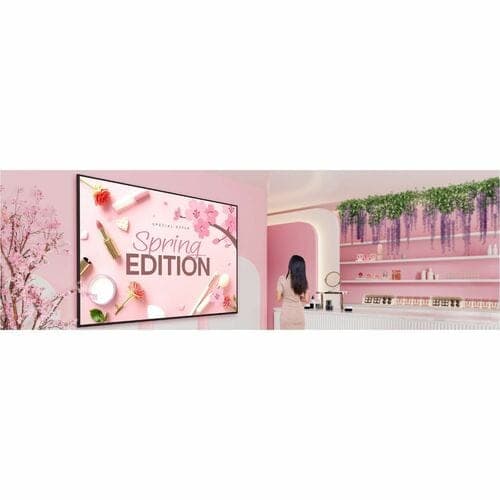

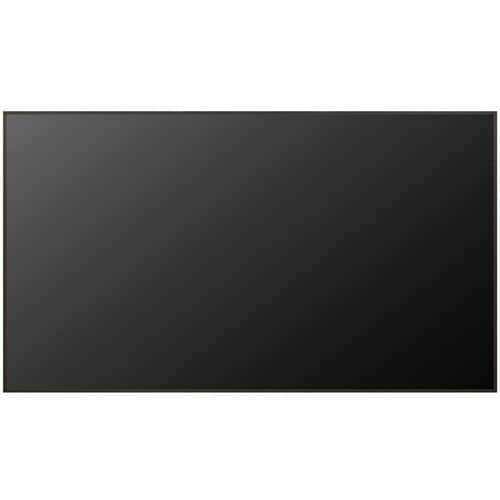

Large UHD Signage Display with Slim Design | Eye-catching Large Screen

A large screen effectively captures people's attention. Especially, 86-inch model supports 120Hz, enabling smooth content operation.

Sturdy Design with Fire Flame Resistance

The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.

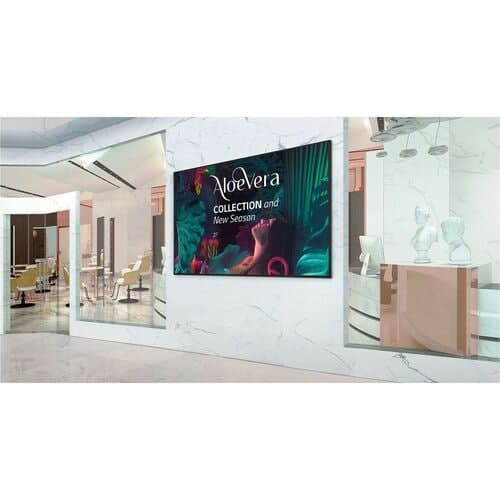

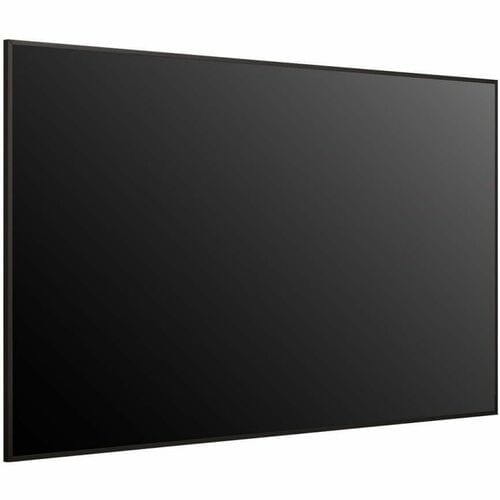

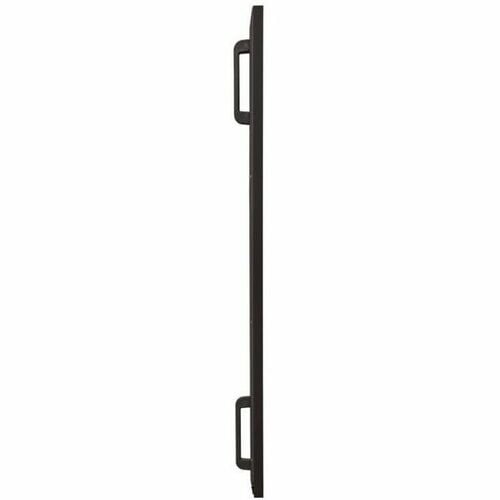

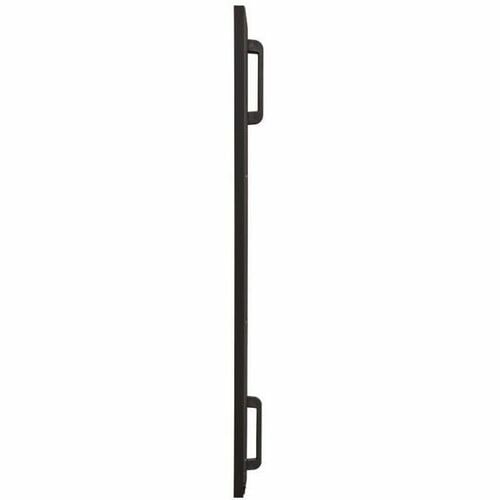

Slim Depth with Even Bezel

Despite its large screen, UH5N-M boasts a slim depth, which is advantageous for interior design. To avoid visual issues when adjusting to portrait mode, the bezel maintains uniform thickness on all four sides, providing even symmetry on the top, bottom, left, and right. Therefore, it is a model suitable for various styling options.

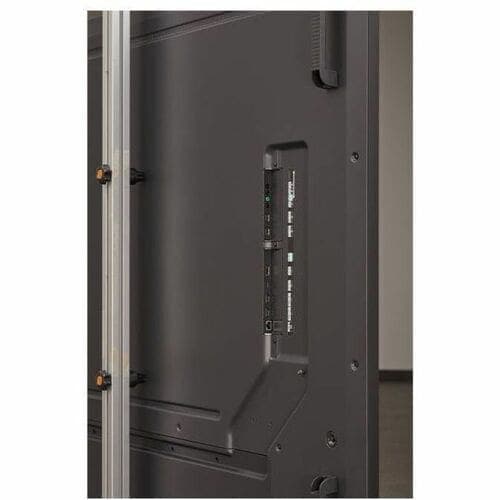

Versatile Operation with Multi-USB

With support for two USB ports, UH5N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting.

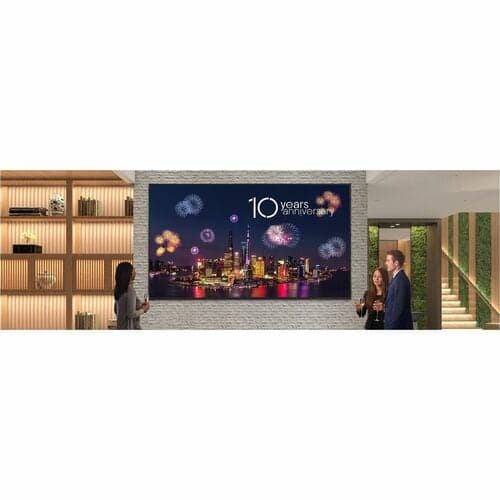

High Resolution Display

It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

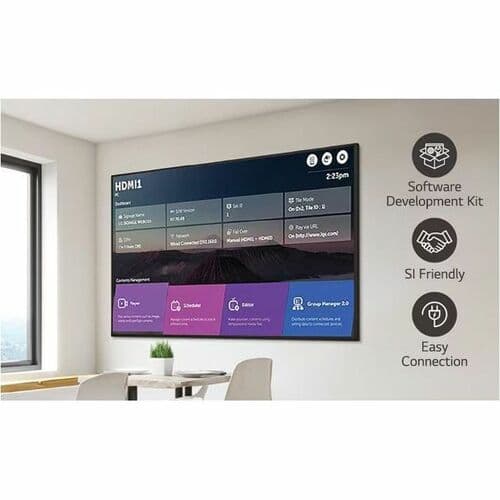

Convenient webOS Platform

The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

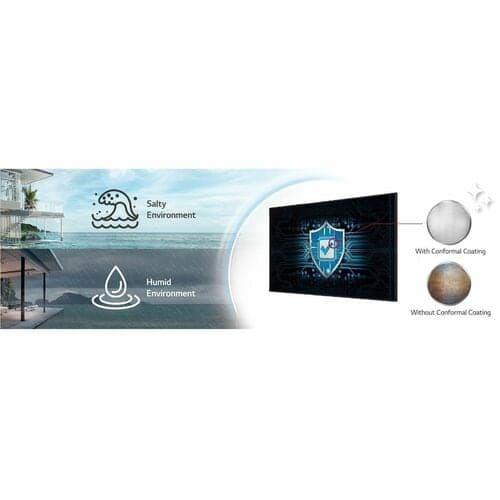

Durability that Provides Reliability

Optimized for business environments, the UH5N-M is protected against rust and dust with conformal coating and IP5x certification, allowing for stable operation.

Enhanced Security Features

The UH5N-M provides advanced security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certifications in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.

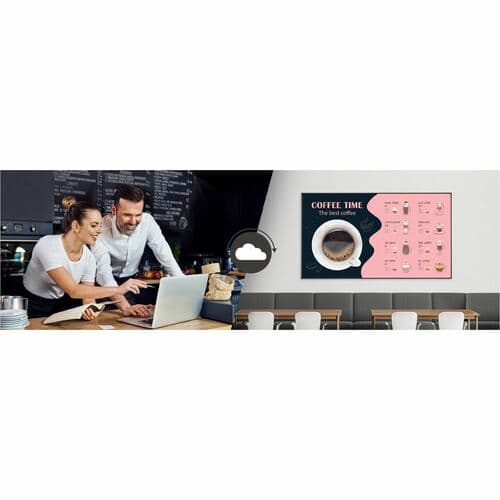

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.


Tech Specs

86IN LCD 3840X2160 4K MNTR 500NIT WEBOS 6.0 HDMI DP RJ45 SPKR specifications
Depth1.2"
Width75.9"
Height43.3"
DVI-D InNo
FeaturesGyroscopic Sensor
SpeakersYes
BluetoothYes
Brand NameLG
Brightness500 Nit
USB Type-CNo
Bezel ColorBlack
Bezel Width0.53"
Show all 75 specs
Color Depth10-bit
Color Gamut95% BT.709
Energy StarYes
OrientationLandscape/Portrait
Aspect Ratio16:9
Embedded CMSLocal Contents Scheduling
ManufacturerLG Electronics
Product Name86" UHD Ultra Slim Signage with webOS 6.0 and Advanced Security
Product TypeDigital Signage Display
Wireless LANYes
Audio Line InYes
Input Voltage230 V AC
Product Model86UH5N-M
RS-232C InputYes
Response Time8 ms
Speaker Power20 W
TAA CompliantNo
Audio Line OutYes
DisplayPort InYes
RS-232C OutputYes
Network (RJ-45)No
Operation Hours24 Hours/7 Days
Maximum LED Life5.7 Year
Operating SystemwebOS 6.0
Package Contents<li>Remote Control (include battery 2ea)</li><li> Power Cord</li><li> QSG</li><li> Regulation Book</li><li> Phone to RS-232C Gender</li><li> Cable Holder (6EA)</li><li> Cable Holder (7Pin/1EA)</li>
Panel TechnologyAdvanced Super Dimension Switch ( ADS )
Power Consumption297 W
Display Resolution3840 x 2160
DisplayPort OutputNo
Number of Speakers2
Compatible SoftwareSuperSign Control+
Country of AssemblyMexico
VESA Mount Standard600 x 400
Backlight TechnologyEdge LED
Viewable Screen Size86"
Weight (Approximate)115.74 lb
Native Contrast Ratio1,200:1
Number of HDMI Inputs3
Standard Refresh Rate120 Hz
Additional Information<li>Surface Treatment (Hard Coating) : No</li> <li>Surface Treatment (Anti Glare) : No</li> <li>Transparency : No</li> <li>Internal Memory : 16 GB</li> <li>Cisco Certified Compatibility : No</li> <li>PoE Type : No</li> <li>BTU Heat Generation (Typ.) : 672 BTU</li> <li>Direct Sunlight : No</li> <li>Dimensions Signage Box (W x H x D) : 82.67 x 49.21 x 9.96 in / 2,100 x 1,250 x 253 mm</li> <li>External Speaker Out (3.5 mm) : No</li> <li>Power Loop Out : No</li> <li>HDMI Out : No</li> <li>Power Loop In : No</li> <li>RGB In : No</li> <li>Power In (DC From External PWR Box) : No</li> <li>OPS Power Built-in : No</li> <li>OPS Compatible : No</li> <li>UL Certification : No</li> <li>DisplayPort In : Yes (x1)</li> <li>IR Out : No (Support IR daisy chain via RS-232C In/Out)</li> <li>RS-232C In (3.5 mm 4-pin) : Yes (x1)</li> <li>RS-232C In (D-sub 9-pin) : No</li> <li>RS-232C Out (3.5 mm) : Yes (x1)</li> <li>Power Type : Built-in Power</li> <li>Local Key Operation: Yes</li>
Dynamic Contrast Ratio100,000,0:1
Vertical Viewing Angle178°
Content SynchronizationRS-232C
Maximum Heat Generation1068.8 kJ
Number of USB 2.0 Ports1
Power Consumption (DPM)0.5W
Environmentally FriendlyYes
Horizontal Viewing Angle178°
Manufacturer Part Number86UH5N-M
Number of Audio Line Out1
Number of Infrared Inputs1
Certifications & Standards<li>FCC: EMC Class B</li> <li>BS476 Part7 (UK Fire Rating): Class 1</li> <li>CE Marking (Regulatory): Yes</li> <li>EN13501-1: Yes</li>
Maximum Operating Humidity80%
Minimum Operating Humidity10%
Off-Mode Power Consumption500 mW
Environmental CertificationElectronic Product Environmental Assessment Tool (EPEAT)
Manufacturer Website Addresshttps://solutions.lg.com/us
Maximum Operating Temperature104°F (40°C)
Minimum Operating Temperature32°F (0°C)
Ingress Protection (IP) RatingIP5X
Number of Network (RJ-45) Ports1
On Screen Display (OSD) LanguagesItalian
Image Sticking Minimization (ISM) MethodYes
