STARTECH.COM

8-PORT RACK MOUNT KVM SWITCH - HDMI 2.0 KVM 4K 60HZ

SKU: SM8862VPN: R8AH202-KVM-SWITCH

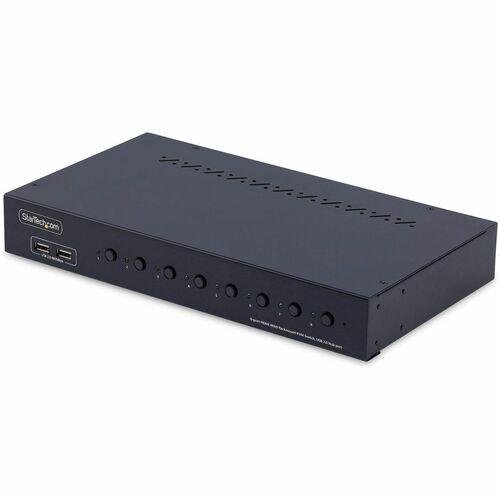

8-PORT RACK MOUNT KVM SWITCH - HDMI 2.0 KVM 4K 60HZ

Key Features

  • 4K 60HZ KVM SWITCH: Switch between eight HDMI-enabled computers to share a keyboard, mouse, 3.5mm audio, USB 2.0 hub (2x front/2x rear), and a 4K 60Hz HDMI 2.0 monitor for effortless multi-system management & improved workspace efficiency
  • NO DRIVERS OR SOFTWARE: TAA-Compliant 8-Port KVM Switch enables BIOS level control and works with any operating system including Windows, macOS, ChromeOS, & Linux; Compatible with all hardware platforms such as Intel, AMD, SnapDragon/ARM, & Apple Silicon
  • MULTIPLE SWITCHING OPTIONS: Ensures efficient and user-friendly operation for multi-server administration with switching via push-buttons or hotkeys, an audible buzzer for confirmation, and LEDs for quick visual port selection status
  • RACK MOUNTABLE: KVM switch includes rackmount brackets in the box for installation in 1U of rack space on network racks and is compatible with ANSI/EIA RS-310-D standard 19-inch server racks that have a mounting depth of 6.5inches (165mm) or more
  • OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with USB Event Monitoring for logging USB device connections with timestamps, and Windows Layout to restore windows locations upon switching hosts
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

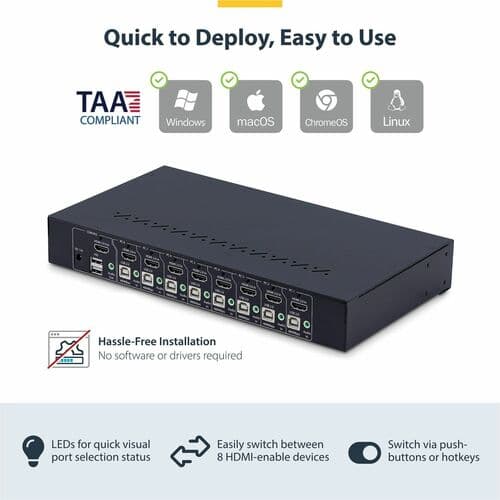

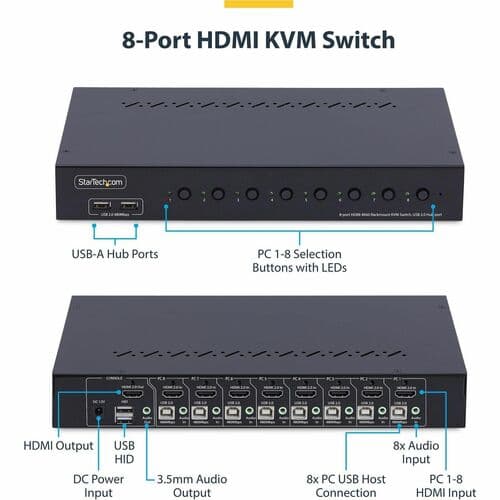

The 4K 60Hz rackmount KVM switch allows switching between eight HDMI-enabled computers, sharing a keyboard, mouse, audio, 4-port USB 2.0 hub, and a 4K 60Hz HDMI 2.0 monitor. This enables effortless multi-system management, improved workspace efficiency, and enhanced productivity.

No Drivers or Software

The TAA-Compliant 8-Port KVM Switch is universally compatible, providing BIOS-level control and working with any operating system, including Windows, Windows ARM, macOS, ChromeOS, and Linux. It is also compatible with all hardware platforms such as Intel, AMD, SnapDragon/ARM, and Apple Silicon.

Multiple Switching Options

Ensures efficient and user-friendly operation for multi-server administration with switching via push-buttons or hotkeys, an audible buzzer for confirmation, and LEDs for quick visual port selection status.

Rack Mount Kit Included

The KVM switch offers a space-saving solution for managing multiple servers directly within a rack. It includes rack-mount brackets for installation in 1U of rack space on network racks and is compatible with 19-inch server racks that have a mounting depth of 6.5 inches (165mm) or more. It also complies with ANSI/EIA RS-310-D standards.

To ensure flexibility to choose the best cables for your specific installation, the KVM switch does not include cables. StarTech.com offers a wide variety of HDMI, USB, and 3.5mm audio cables in assorted lengths to suit different installation needs.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

  • Advanced Windows Layout Utility: Setup and save custom windows layouts.
  • USB Event Monitoring Utility: Track and log connected USB devices.


Tech Specs

8-PORT RACK MOUNT KVM SWITCH - HDMI 2.0 KVM 4K 60HZ specifications
USBYes
HDMIYes
Width6.5"
Height1.7"
USB 2.0Yes
FeaturesLED Indicator
Brand NameStarTech.com
Form FactorRack-mountable
Rack Height1U
Graphic Mode4K
ManufacturerStarTech.com
Product NameKVM Switchbox
Show all 32 specs
Product TypeKVM Switchbox
USB StandardUSB 2.0
Input Current1 A
TAA CompliantYes

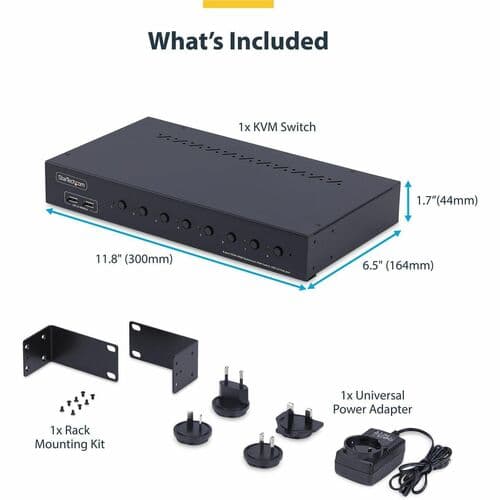

Package Contents<ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>KVM Switchbox</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>1x Universal Power Adapter (NA/EU/UK/ANZ)</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>1x Rack Mounting Kit</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>1x Quick-Start Guide</li></ul>
Country of OriginTaiwan
Packaged Quantity1
Rack Mounting KitIncluded
Input Voltage Range100 - 240 AC
Number of USB Ports12
Number of HDMI Ports9
Weight (Approximate)3.40 lb
Connectivity TechnologyWired
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Manufacturer Part NumberR8AH202-KVM-SWITCH
Maximum Video Resolution3840 x 2160
Maximum Data Transfer Rate60 MB/s
Manufacturer Website Addresshttp://www.startech.com
Maximum Operating Temperature104°F (40°C)
Minimum Operating Temperature32°F (0°C)
