STARTECH.COM

8 PORT DVI KVM SWITCH USB KVM RACKMOUNT KVM CONSOLE DVI USB

SKU: GE7678VPN: SV831DVIU

8 PORT DVI KVM SWITCH USB KVM RACKMOUNT KVM CONSOLE DVI USB

Key Features

  • Supports DVI/HDMI resolutions up to 1920x1200
  • Can be used with DVI to HDMI adapters to connect HDMI based systems
  • Support for most combo/wireless keyboard and mice
  • OS independent - No software or drivers required
  • Front panel push-buttons and Hot-key functions allow for easy switching
  • Auto-scan function cycles through computers sequentially
  • Connects to USB-based computer systems
  • USB console interfaces for keyboard and mouse
  • Supports Mac and Sun keyboard mapping - Keyboard states automatically saved
  • and restored when switching
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

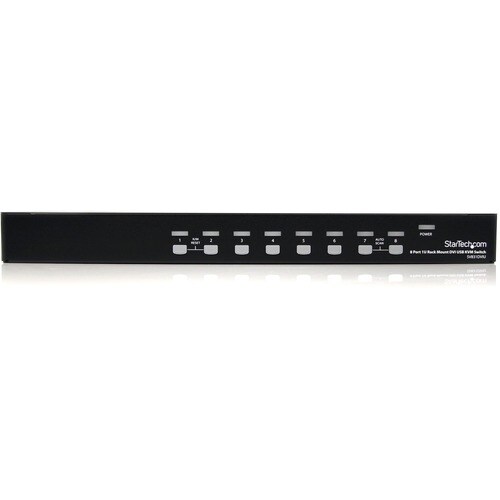

The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor. The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920x1200 via DVI or HDMI connection (using DVI to HDMI adapter - see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability. A perfect addition to any server room or software test lab, this 8-port switch can be rack-mounted into 1U of cabinet space. This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support. Note: This KVM supports digital signals only, and cannot be used with DVI-to-VGA adapters.

Tech Specs

8 PORT DVI KVM SWITCH USB KVM RACKMOUNT KVM CONSOLE DVI USB specifications
DVIYes
USBYes
Depth7.1"
Width17.2"
Height1.7"
Brand NameStarTech.com
Form FactorRack-mountable
Rack Height1U
Color FamilyBlack
Graphic ModeWUXGA
ManufacturerStarTech.com
Product Name8 Port 1U Rack Mount DVI USB KVM Switch
Show all 35 specs
Product TypeKVM Switchbox
Input Voltage240 V AC
Product ColorBlack
TAA CompliantYes
WEEE Statementhttps://media.startech.com/cms/pdfs/sv831dviu_weee.pdf
Package Contents<ul> <li>8 Port 1U Rack Mount DVI USB KVM Switch</li> <li>1 x Set Rack-Mount Brackets</li> <li>3 x Power Cords (NA/EU/UK) or AU in Australia</li> <li>1 x User Manual</li> </ul>
Country of OriginTaiwan
Packaged Quantity1 Each
REACH free of SVHCYes
Input Voltage Range110V AC to 240V AC
Number of DVI Ports9
Number of USB Ports10
Weight (Approximate)5.51 lb
REACH Declaration URLhttps://media.startech.com/cms/pdfs/sv831dviu_rohs.pdf
EU RoHS Declaration URLhttps://media.startech.com/cms/pdfs/sv831dviu_rohs.pdf
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally FriendlyYes
Manufacturer Part NumberSV831DVIU
Maximum Video Resolution1920 x 1200
Environmental CertificationEU RoHS
Manufacturer Website Addresshttp://www.startech.com
Number of Computers Supported8
End of Life Manual AvailabilityYes
