STARTECH.COM

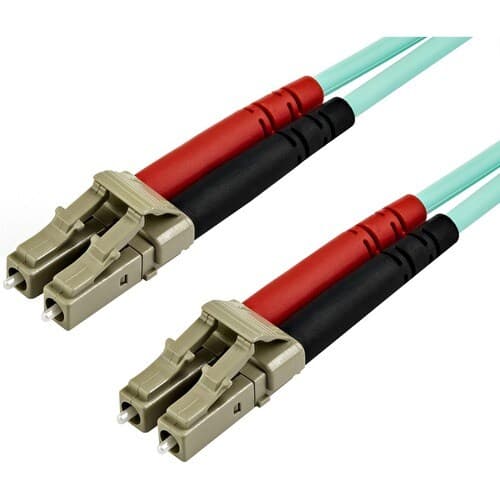

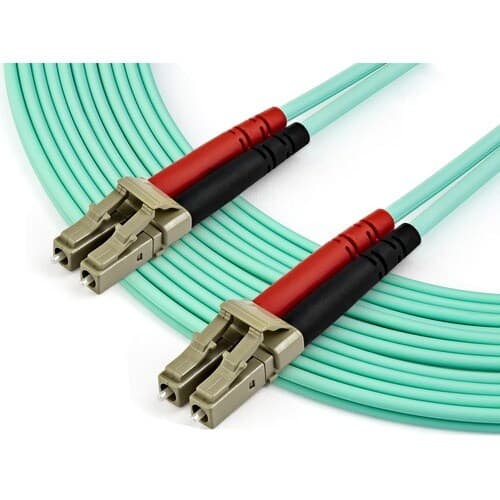

7M MULTIMODE FIBER OPTIC CABLE OM3 LC/LC 50/125 LSZH FIBER CABLE

SKU: 6TQ541VPN: A50FBLCLC7

7M MULTIMODE FIBER OPTIC CABLE OM3 LC/LC 50/125 LSZH FIBER CABLE

Key Features

  • OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
  • QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
  • RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
  • WIDE COMPATIBILITY: OM3 LC/LC multimode cable supports 1/10/40/100 Gbps networks; Backward compatible with OM3; For high-density network applications such as SANs, data servers, fiber switches, SFP+, QSFP+, and QSFP28 transceivers
  • SPECS: 7m (23ft); Color: Aqua (OM3); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

This OM3 LC to LC Multimode Duplex Fiber Optic Patch cable features 50/125 micron fiber and supports high-bandwidth data transmission over a 10 Gigabit Ethernet connection.

Built for Performance

With laser-optimized multimode fiber (LOMMF), the patch cable is ideal for connecting 850 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. The high-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications.

Reliable Connection

Each OM3 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.

High-Quality Construction

Housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, this fiber-optic cable ensures minimal smoke, toxicity and corrosion when exposed to high sources of heat, or in the event of a fire. It's the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

A50FBLCLC7 is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Tech Specs

7M MULTIMODE FIBER OPTIC CABLE OM3 LC/LC 50/125 LSZH FIBER CABLE specifications
FeaturesCorrosion Resistant
Brand NameStarTech.com
Cable TypeFiber Optic
Cable Length22.97 ft
Color FamilyGreen
ManufacturerStarTech.com
Product NameFiber Optic Duplex Patch Network Cable
Product TypeNetwork Cable
Product ColorAqua
Shipping Width8.66"
WEEE Statementhttps://media.startech.com/cms/pdfs/a50fblclc7_weee.pdf
Shipping Height0.59"
Show all 35 specs
Device SupportedNetwork Device
Fiber Optic ModeMulti-mode
Country of OriginChina
Packaged Quantity1 Each
Data Transfer Rate10 Gbit/s
REACH free of SVHCYes
Cable CharacteristicPatch Cable
REACH Declaration URLhttps://media.startech.com/cms/pdfs/a50fblclc7_rohs.pdf
EU RoHS Declaration URLhttps://media.startech.com/cms/pdfs/a50fblclc7_rohs.pdf
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Environmentally FriendlyYes
Manufacturer Part NumberA50FBLCLC7
Connector Type on First EndLC Network - Male
Environmental CertificationEU RoHS
Connector Type on Second EndLC Network - Male
Manufacturer Website Addresshttp://www.startech.com
Connector Gender on First EndMale
Shipping Weight (Approximate)3.36 oz
Connector Gender on Second EndMale
Connector on First End Details2 x LC Network - Male
Connector on Second End Details2 x LC Network - Male
End of Life Manual AvailabilityYes
Fiber Optic Cable Core/Cladding Specification50/125 µm

Datasheets & Resources
