LG COMMERCIAL LFD

75IN 3840X2160 LCD MNTR 3YR HDMI SPKR LAND/PORT WEBOS

SKU: 8MG300VPN: 75UL3J-E

75IN 3840X2160 LCD MNTR 3YR HDMI SPKR LAND/PORT WEBOS

Key Features

  • EPEAT Bronze
  • Resolution : ULTRA HD (3,840 x 2,160)
  • High performance WebOS<sup>TM</sup> 6.0
  • Built-in Speaker
  • Compatible with LG's One:Quick Share
  • ENERGY STAR® Certified
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Superb Picture Quality with Ultra HD Resolution

With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents.

Sophisticated Slim Design

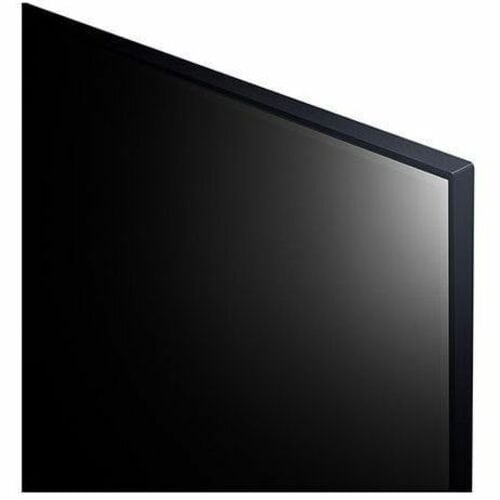

This series is thin in bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.

High-Performance with LG webOS 6.0

LG webOS 6.0, upgraded in SoC and web engine, is available on UL3J series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.

Various Sensor Connection

LG webOS smart signage platform helps to easily provide value-added solutions by supporting simple connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.

LG's Simple Advertisement Helper, Promota

Using LG's Promota application, downloadable on a mobile device, you can easily create your own display contents. With Promota, you can add text and images to create an online profile for your business as well as deliver information such as event news, seasonal menus, promotions, and even more to your customers while recommending easy-to-use templates relevant to your industry.

LG's Wireless Screen Sharing Solution, LG One:Quick Share

LG One:Quick Share is a wireless screen sharing solution available through the UL3J series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode helps you to display the agenda, note before the meeting starts.

Remote Monitoring and Control

This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone & PC under network-accessible environment while having access to both current and past data. It allows the user to monitor the unit, make adjustments and control the unit remotely in real time.

Compatible with AV Control Systems

The UL3J series supports Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency.

Compatible with Video Conference System

For effective visual meeting, the UL3J series supports its compatibility with Cisco solutions that offers powerful and integrated control for a smarter video conference.

Easy Menu Setup for Vertical Needs

UL3J series increases users' convenience by organizing frequently used menus by industry.

Easy Content Distribution & SW Update

UL3J series features embedded Wi-Fi making it easy to distribute content wirelessly and update Firmware under the same network.

Wireless Access Point

UL3J series operates as a virtual router which can be an wireless access point for mobile devices.

Built-in Speaker

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

Tech Specs

75IN 3840X2160 LCD MNTR 3YR HDMI SPKR LAND/PORT WEBOS specifications
HDMIYes
Depth2.4"
Width66.1"
Height38"
DVI-D InNo
FeaturesTileMatrix Support
SpeakersNo
BluetoothNo
Brand NameLG
Brightness330 Nit
USB Type-CNo
Bezel ColorAshed Blue
Show all 78 specs
Color Depth8-bit+FRC
Color Gamut80% DCI
Energy StarYes
OrientationLandscape/Portrait
Aspect Ratio16:9
Embedded CMSLocal Contents Scheduling
HDCP Version1.4/2.2
ManufacturerLG Electronics
Product Name75" UL3J-E UHD Digital Signage with webOS™ 6.0 & Built-in Speakers
Product TypeDigital Signage Display
Wireless LANYes
Audio Line InNo
Input Voltage230 V AC
Product Model75UL3J-E
RS-232C InputYes
Response Time8 ms
TAA CompliantNo
Audio Line OutYes
DisplayPort InNo
RS-232C OutputYes
Infrared OutputNo
Network (RJ-45)No
Operation Hours16 Hours/ 7 Days
Maximum LED Life3.4 Year
Operating SystemwebOS 6.0
Package Contents<li>Remote Controller (include battery 2ea)</li><li> Power Cord</li><li> Regulation Book</li><li> Phone to D-Sub9 Gender</li><li> Cable Holder</li>
Panel TechnologyIn-plane Switching (IPS) Technology
Bezel Width (Top)0.55"
Power Consumption220 W
Bezel Width (Left)0.55"
Display Resolution3840 x 2160
DisplayPort OutputNo
Multi-touch ScreenNo
Bezel Width (Right)0.55"
Compatible SoftwareSuperSign CMS
Country of AssemblyMexico
VESA Mount Standard400 x 400
Bezel Width (Bottom)0.78"
Viewable Screen Size75"
Weight (Approximate)68.30 lb
Native Contrast Ratio1,200:1
Number of HDMI Inputs3
Standard Refresh Rate60 Hz
Additional Information<li>Surface Treatment (Hard Coating) : No</li> <li>Surface Treatment (Anti Glare) : No</li> <li>Color Depth : 1.07 Billion Colors, 8 bit + FRC</li> <li>Anti-Reflective : No</li> <li>Picture-by-Picture (PBP) : No</li> <li>Transparency : No</li> <li>Internal Memory : 8 GB (eMMC)</li> <li>Cisco Certified Compatibility : No</li> <li>BTU Heat Generation (Typ.) : 529 BTU</li> <li>Handle : No</li> <li>Direct Sunlight : No</li> <li>Bezel Width (Off Bezel) : T/R/L: 7.9 mm, B: 18.4 mm</li> <li>IR In (3.5 mm) : No</li> <li>External Speaker Out (3.5 mm) : No</li> <li>Power Loop Out : No</li> <li>Power Loop In : No</li> <li>RGB In : No</li> <li>Power In (DC From External PWR Box) : No</li> <li>Anti-Reflective Coating : No</li> <li>Heater : No</li> <li>Anti-Reflective Film : No</li> <li>Heat Dissipation : No</li> <li>Degree of Protection : No</li> <li>OPS Power Built-in : No</li> <li>OPS Compatible : No</li> <li>UL Certification : No</li> <li>RS-232C In (3.5 mm 4-pin) : Yes (x1)</li> <li>RS-232C In (D-sub 9-pin) : No</li> <li>RS-232C Out (3.5 mm) : Yes (x1)</li> <li>Power Type : Built-in Power</li> <li>Local Key Operation : Yes (Power On/Off only)</li>
Dynamic Contrast Ratio100,000,0:1
Number of HDMI Outputs1
Vertical Viewing Angle178°
Content SynchronizationRS-232C
Maximum Heat Generation792.3 kJ
Number of USB 2.0 Ports2
Power Consumption (DPM)0.5W
Environmentally FriendlyYes
Horizontal Viewing Angle178°
Manufacturer Part Number75UL3J-E
Number of Audio Line Out1
Certifications & Standards<li>FCC: EMC Class A</li> <li>CE Marking (Regulatory): Yes</li>
Maximum Operating Humidity80%
Minimum Operating Humidity10%
Off-Mode Power Consumption500 mW
Environmental CertificationElectronic Product Environmental Assessment Tool (EPEAT)
Manufacturer Website Addresshttps://solutions.lg.com/us
Maximum Operating Temperature95°F (35°C)
Minimum Operating Temperature32°F (0°C)
Number of Network (RJ-45) Ports1
On Screen Display (OSD) LanguagesChinese
Image Sticking Minimization (ISM) MethodYes
