STARTECH.COM

6IN INT SATA TO LEFT ANGLE SATA SERIAL ATA DRIVE CABLE

SKU: LC2273VPN: SATA6LA1

6IN INT SATA TO LEFT ANGLE SATA SERIAL ATA DRIVE CABLE

Key Features

  • 1x SATA connector
  • 1x Left-angled/90-degree SATA connector
  • Supports full SATA 3.0 6Gbps bandwidth
  • Compatible with both 3.5" and 2.5" SATA hard drives
  • Provides 6" in cable length
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

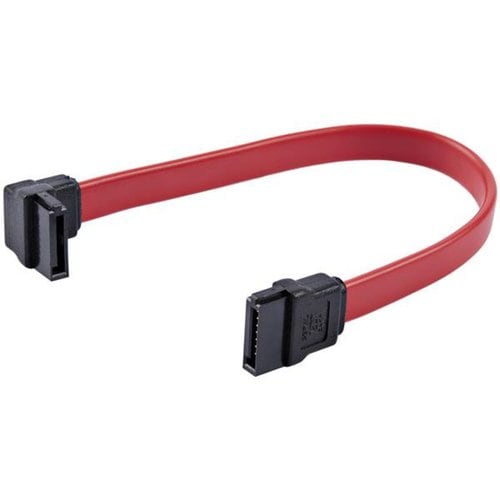

Make a Left-Angled Connection to your SATA Drive, for Installation in Tight Spaces. The SATA6LA1 Left Angle (90-degree) SATA Cable features a standard (straight) SATA receptacle as well as a left-angled SATA receptacle, providing a simple 6-inch connection to a Serial ATA drive, with full SATA 3.0 bandwidth support of up to 6Gbps when used with SATA 3.0 compliant drives. The left-angled SATA connection enables you to plug in your Serial ATA hard drive in hard to reach areas or tight spaces, while the low profile and flexible design of the cable improves airflow and reduces clutter in your computer case, helping to keep the case clean and cool. Constructed of only top quality materials and designed for optimum performance and reliability this 6" SATA cable is backed by our lifetime warranty. As an alternative, StarTech.com also offers a 6in Right Angle SATA cable (SATA6RA1), which provides the same simple installation as this left angled SATA cable, but allows the cable to connect to the SATA drive from the opposite direction.

Tech Specs

6IN INT SATA TO LEFT ANGLE SATA SERIAL ATA DRIVE CABLE specifications
FeaturesFlexible
ConductorCopper
ShieldingYes
Brand NameStarTech.com
Cable TypeSATA
Cable Length6"
Color FamilyRed
ManufacturerStarTech.com
Product Name6in SATA to Left Angle SATA Serial ATA Cable
Product TypeData Transfer Cable
Product ColorRed
WEEE Statementhttps://media.startech.com/cms/pdfs/sata6la1_weee.pdf
Show all 34 specs
Jacket MaterialPolyvinyl Chloride (PVC)
Device SupportedOptical Drive
Country of OriginChina
Packaged Quantity1 Each
Data Transfer Rate6 Gbit/s
REACH free of SVHCYes
American Wire Gauge26 AWG
Weight (Approximate)0.01 lb
REACH Declaration URLhttps://media.startech.com/cms/pdfs/sata6la1_rohs.pdf
EU RoHS Declaration URLhttps://media.startech.com/cms/pdfs/sata6la1_rohs.pdf
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Environmentally FriendlyYes
Manufacturer Part NumberSATA6LA1
Connector Type on First EndSATA - Female
Environmental CertificationEU RoHS
Connector Type on Second EndSATA - Female
Manufacturer Website Addresshttp://www.startech.com
Connector Gender on First EndFemale
Connector Gender on Second EndFemale
Connector on First End Details1 x 7-pin SATA - Female
Connector on Second End Details1 x 7-pin SATA - Female
End of Life Manual AvailabilityYes
