6FT USB TO RS422/485 SERIAL ADAPTER CABLE COM RETENTION M/M

SKU: BH4682VPN: ICUSB422

In Stock

$80.96$69.66

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

MULTI-USE FUNCTIONALITY: This versatile USB to serial RS232 adapter is perfect for a range of applications, from digital signage to connecting point-of-sale systems and barcode scanners
CUSTOMIZABLE SOLUTION: This USB serial hub features an FTDI chipset, making it highly customizable and compatible, and the ideal solution for any setup
COMPACT DESIGN: Designed with a small form factor, this serial RS422/485 converter is USB powered and requires no bulky power adapters or an outlet
EASY INSTALLATION: This serial adapter ensures easy installation and operation with COM port retention that provides robust serial connectivity for legacy devices
TECH SPECS: 6 feet (1.8 meters); FTDI FT232RL Chipset; Max Baud Rate: 921.6 Kbps; 256 Bytes FIFO; None/Odd/Even Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits; TAA Compliant

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

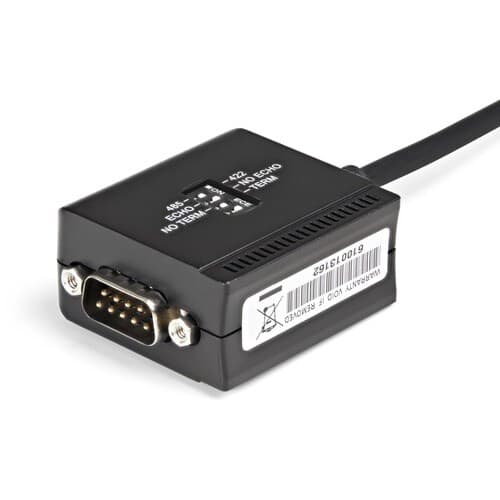

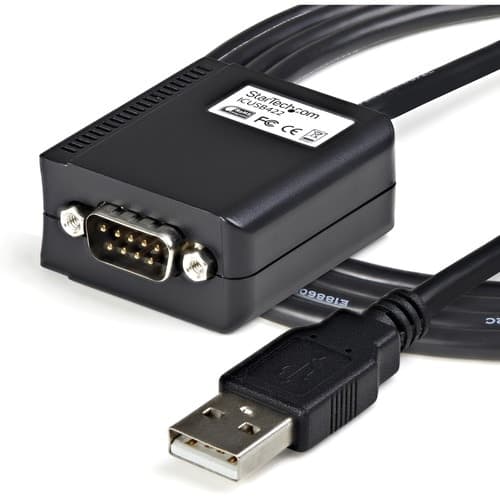

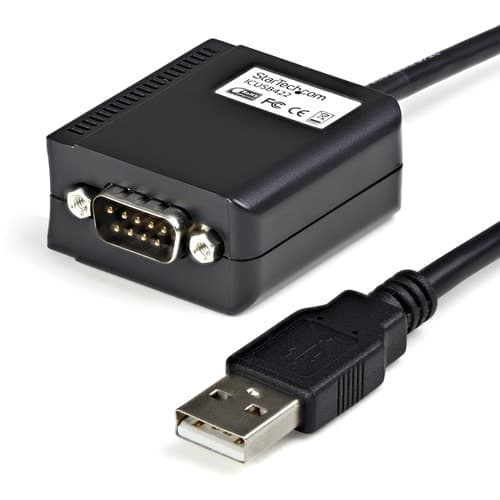

The ICUSB422 6ft Professional RS422/485 USB Serial Cable Adapter with COM Port Retention lets you connect RS422 or RS485 serial devices to your USB-enabled computer. The adapter features a 9-pin (DB9) male serial connector as well as dipswitch controls for easy port configuration, and requires minimal software. The serial adapter is USB-powered, eliminating the aggravation of requiring an external power adapter. With COM port retention, assigned port settings are saved, so you can disconnect and reconnect the adapter with virtually no configuration required on the host computer. The ICUSB422 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Tech Specs

6FT USB TO RS422/485 SERIAL ADAPTER CABLE COM RETENTION M/M specifications
Brand Name	StarTech.com
Cable Length	6 ft
Color Family	Black
Manufacturer	StarTech.com
Product Name	6ft RS422/485 USB Serial Adapter with COM Retention
Product Type	Data Transfer Adapter
Product Color	Black
TAA Compliant	Yes
Package Contents	<ul> <li>6ft RS422/485 USB Serial Adapter with COM Retention</li> <li>1 x Driver CD</li> <li>1 x Instruction Manual</li> </ul>
Country of Origin	Taiwan
Packaged Quantity	1 Each
Weight (Approximate)	3.53 oz

Show all 25 specs

Additional Information	<p><b>Operating System(s):</b></p><ul><li>Windows 8 / 7 / Vista / XP (32/64-bit)</li><li>Windows 2000</li><li>Windows CE (4.2+)</li><li>Windows Server 2008 R2</li><li>Windows Server 2003 (32/64-bit)</li><li>Mac OS v.9.x, v.10.x (Tested up to v.10.8)</li><li>Linux</li></ul>
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmentally Friendly	Yes
Manufacturer Part Number	ICUSB422
Connector Type on First End	DB-9 RS-422 Serial - Male
Environmental Certification	EU RoHS
Connector Type on Second End	USB 1.1 Type A - Female
Manufacturer Website Address	http://www.startech.com
Connector Gender on First End	Male
Connector Gender on Second End	Female
Connector on First End Details	1 x 9-pin DB-9 RS-422 Serial - Male
Operating System Compatibility	Windows 2000 Server
Connector on Second End Details	1 x USB 1.1 Type A - Female
