LEGRAND AV - C2G

6FT USB 3.0 TYPE C TO STD B

SKU: 1F4803VPN: 28866

6FT USB 3.0 TYPE C TO STD B

Key Features

  • Connect the USB-B port of a hard drive, hub or other device a USB Type-C port
  • Designed to support USB 3.0 (USB 3.1 Gen 1) communication and features
  • Backwards compatible with USB 3.0 devices
  • Color coded blue and labeled to designate USB 3.0 (USB 3.1 Gen 1) feature support
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

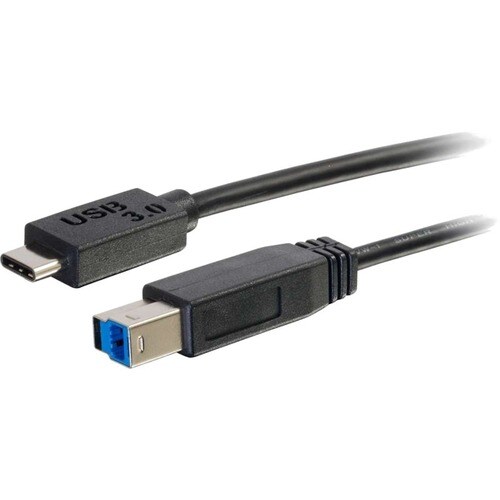

This USB 3.0 (USB 3.1 Gen 1) USB-C to USB-B cable is the perfect solution for connecting a hard drive, hub, or other device that has a USB B port to a computer, tablet or other device that has a USB Type-C port for USB 3.0 (USB 3.1 Gen 1) communication. The color coded USB Type-C connector allows this cable to be easily identified as a USB 3.0 (USB 3.1 Gen 1) cable and differentiated from other cables which may support a different feature set. The USB Type-C connector is smaller than traditional USB connector and features a symmetrical design which allows it to be easily connected on the first try. Additionally, the durability of the USB Type-C connector allows for up to 10,000 connection cycles. This cable supports a data rate up to 5Gbps for data transfer and sync with 5 volts and 1 amp of power for device operation and charging.
Note: This cable is designed to support USB 3.0 (USB 3.1 Gen 1) communication and features and is not able to support USB 3.1 Gen 2 Communication and features.

Tech Specs

6FT USB 3.0 TYPE C TO STD B specifications
FeaturesEMI/RF Protection
ShieldingYes
Brand NameC2G
Cable TypeUSB-C/USB-B
Cable Length6 ft
ManufacturerLegrand Group
Product Name6ft (1.8m) USB 3.0 (USB 3.1 Gen 1) USB-C to USB-B Cable M/M - Black
Product TypeData Transfer Cable
Color DetailsPairs: Black, White/Green, Red/Black,Yellow/Blue,Purple/Orange
Product ColorBlack
Contact PlatingGold-flash
Jacket MaterialPolyvinyl Chloride (PVC)
Show all 25 specs
Device SupportedTablet
Material Details<ul> <li>Tinned Copper Conductor</li> <li>Nickel Plates Shell</li> </ul>
Product MaterialTinned Copper
Country of OriginChina
Data Transfer Rate5 Gbit/s
American Wire Gauge32 AWG
Insulation MaterialFM-PE
Manufacturer Part Number28866
Connector Type on First EndUSB 3.1 (Gen 1) Type C - Male
Connector Type on Second EndUSB 3.1 (Gen 1) Type B - Male
Manufacturer Website Addresshttp://www.legrand.us
Connector on First End Details1 x USB 3.1 (Gen 1) Type C - Male
Connector on Second End Details1 x USB 3.1 (Gen 1) Type B - Male
