6FT PREMIUM HDMI DONGLE RING MDP DP USB

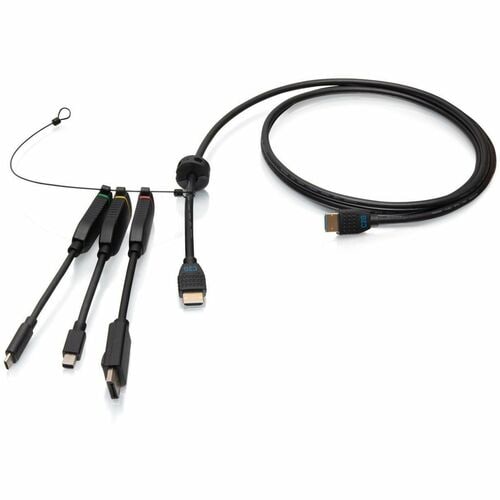

The C2G Universal 4K HDMI® Dongle Adapter Ring with a 6ft (1.8m) Premium HDMI Cable ensures seamless connectivity for any device in conference rooms, classrooms, lecture halls, or huddle spaces. Designed for versatility, it includes color-coded adapters for Mini DisplayPort™, DisplayPort, and USB-C, making it easy to identify and connect the right device without delay. The dongle-style adapters offer flexible positioning-perfect for thinner laptops and tablets-eliminating the awkward strain and alignment issues of rigid connectors. The included C2G Performance Series HDMI cable comes pre-mounted, so you're ready to connect straight out of the box. Plus, the integrated sliding adapter ring and optional stopper keep your setup organized and reduce wear on the HDMI port. Simplify collaboration with one universal, professional-grade solution.

Additional Technical Specifications

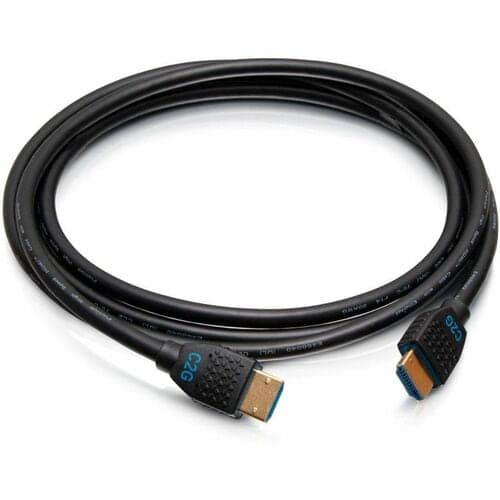

HDMI Cable Specs

Supports HDMI Resolutions up to 4K 60Hz, 4:4:4, 18Gbps

Jacket Color: Black, PVC Molding

Dongle Adapter Specs

Signal Specifications

USB Type-C to HDMI Dongle: 100% Functional Test at 4K/60Hz/4:4:4 Resolution with Standard AV Test Equipment

DisplayPort to HDMI Dongle: 100% Functional Test at 4K/30Hz Resolution with Standard AV Test Equipment

Mini DisplayPort to HDMI Dongle: 100% Functional Test at 4K/30Hz Resolution with Standard AV Test Equipment

Electrical Specifications

Rating: Temp 80°C; Voltage 30V

Conductor Resistance: At 20°C Max 32AWG: mDP/DP: 588.85 OHMS/KM; USB-C: 588 OHMS/KM; 24AWG: 86 OHMS/KM

Insulation Resistance: mDP/DP: 10M OHMS/KM Min at 20°C DC 500V

Insulation Resistance: USB-C: PP/HD-PE DC 500V 100M OHMS/KM Min at 20°C

Dielectric Strength: AC 500V/1 Minute No Breakdown

Physical Specifications

Operating Temperature: 0°C - 40°C (0% - 90%RH)

Storage Temperature: -10°C - 60°C (0% - 90%RH)

mDP/DP Minimum Bend Radius: R52mm

USB-C Minimum Bend Radius: R45mm

Cables Jacket Rating: VW-1

Tensile Strength: Unaged: 1500PSI Min, Aged: 70% Min

Physical Characteristics

HDMI Female: Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black with PCB, Shell: SPCC, Gold Plated

USB Type-C Male (Green Band): Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black, Shell: Gold Plated

DisplayPort Male (Red Band): Solder Type, Contacts: Gold Flash, Housing: LCP Black, Shell: Gold Plated (with Latches)

Mini DisplayPort Male (Yellow Band): Solder Type, Contacts: Gold Flash, Housing: LCP Black, Shell: Gold Plated

All Hoods: Molded Black PVC

PC Eyelet: 17.8x4.7x2.6mm, Black, Material: PC

Pull Tab: 80x25x2mm, Material: Polyester, Black Background, White Text, with Black Eyelet

Universal Mounting Bracket: 85x65x1.2mm, Material: C.R.S. Rigidity: 1/4H, Color: Black

Product is CE marked and conforms to 2011/65/EU ROHS 2
