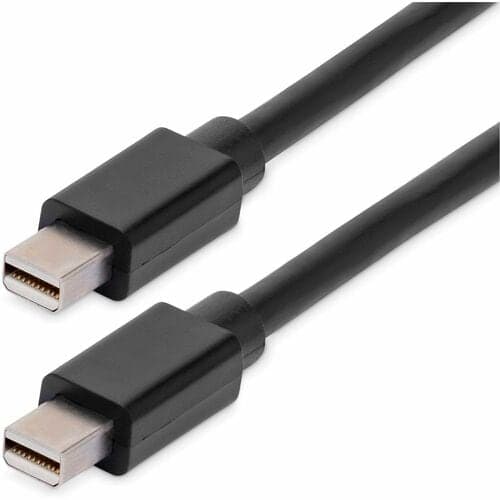

6FT MINI DISPLAYPORT CABLE MDP 1.2 TO MDP VIDEO DISPLAY CABLE CORD
SKU: CT2398VPN: MDISPLPORT6
6FT MINI DISPLAYPORT CABLE MDP 1.2 TO MDP VIDEO DISPLAY CABLE CORD
Key Features

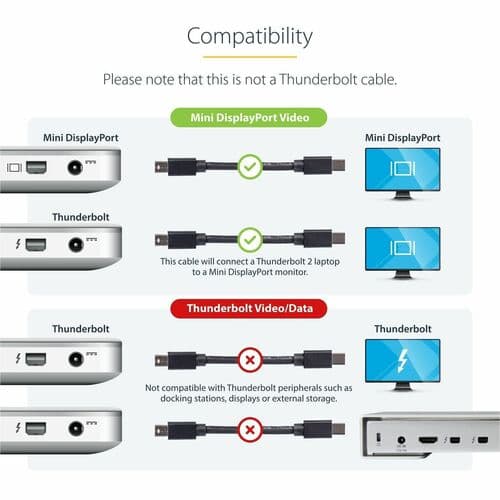

- COMPATIBILITY NOTE: This is not a Thunderbolt cable and is not compatible with Thunderbolt peripherals such as Docking Stations, Displays or External Enclosures; It can however be used to connect a Thunderbolt 2 laptop to a Mini-DisplayPort monitor
- MINI DISPLAYPORT 1.2 CABLE: This 6ft (1.8m) Mini DisplayPort v1.2 cable supports 4K x 2K video (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief and jacket prevents fraying or damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding

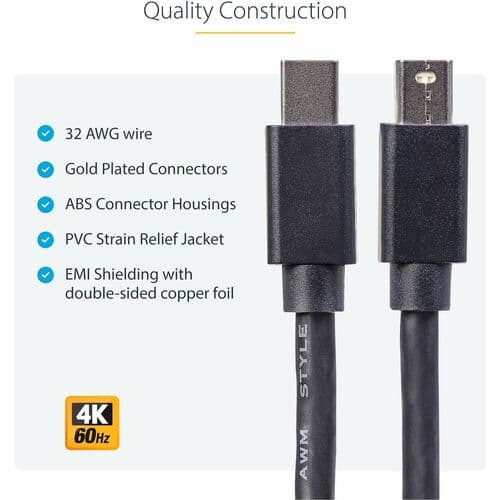

- QUALITY CONSTRUCTION: 30AWG wire with gold-plated connectors for improved signal integrity & reliability; Superior EMI shielding with double sided copper foil provides higher quality video and audio; mDP cable is Backward compatible with DP1.1
- SPECS: 6 feet (1.8 meter); Black Mini DP Cable; DisplayPort v1.2; mDP Male to mDP Male Cord; 30 AWG; PVC cable jacket, ABS connector shell; Shield: Al-Mylar foil with Braid; Protocols: HBR2, MST, GTC; Backed for Life
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The MDISPLPORT6 6ft Mini DisplayPort™ 1.2 cable features 2 Mini DP male connectors, and offers a dependable solution for connecting any Mini DisplayPort-enabled laptop (including Mac® family of products) to a Mini DisplayPort-equipped monitor. The mDP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support. The MDISPLPORT6 is backed by StarTech.com's Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability. Please note: Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DisplayPort Cables can be connected to the Thunderbolt ports, enabling you to connect your Mini DP compatible displays.
Tech Specs
| Packing | Bagged |
|---|---|
| Features | Damage Resistant |
| Conductor | Copper |
| Shielding | Yes |
| Brand Name | StarTech.com |
| Cable Type | DisplayPort |
| Jacket Type | CMG |
| Cable Length | 6 ft |
| Color Family | Black |
| Manufacturer | StarTech.com |
| Product Name | 6 ft Mini DisplayPort 1.2 Cable M/M - Mini DisplayPort 4k |
| Product Type | Video Cable |
Show all 43 specsShow fewer
| Product Color | Black |
|---|---|
| Product Model | MDISPLPORT6 |
| Shipping Width | 7.87" |
| WEEE Statement | https://media.startech.com/cms/pdfs/mdisplport6_weee.pdf |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Shipping Height | 0.75" |
| Device Supported | Audio/Video Device |
| Connector Plating | Gold |
| Country of Origin | China |
| Packaged Quantity | 1 Each |
| Data Transfer Rate | 21.6 Gbit/s |
| REACH free of SVHC | Yes |
| American Wire Gauge | 32 AWG |
| Supported Resolution | 3840 x 2160 |
| Weight (Approximate) | 0.14 lb |
| REACH Declaration URL | https://media.startech.com/cms/pdfs/mdisplport6_rohs.pdf |
| EU RoHS Declaration URL | https://media.startech.com/cms/pdfs/mdisplport6_rohs.pdf |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | MDISPLPORT6 |
| Certifications & Standards | <p>CMG Rated</p> |
| Connector Type on First End | Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Environmental Certification | EU RoHS |
| Connector Type on Second End | Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Manufacturer Website Address | http://www.startech.com |
| Connector Gender on First End | Male |
| Shipping Weight (Approximate) | 2.56 oz |
| Connector Gender on Second End | Male |
| Connector on First End Details | 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male |
| End of Life Manual Availability | Yes |
