6FT MICRO USB CABLE DOWN ANGLE USB A TO MICRO B CHARGING CORD
SKU: RZ1081VPN: USBAUB2MD

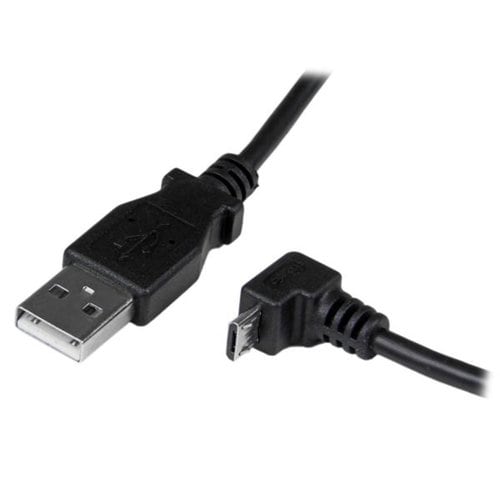

6FT MICRO USB CABLE DOWN ANGLE USB A TO MICRO B CHARGING CORD
Key Features
- 1x USB 'A' male connector
- 1x Down Angle USB Micro-B male connector
- Supports high-speed data transfer rates of up to 480 Mbps
- Aluminum-Mylar Foil with Braided Shielding
- Molded connectors with strain relief
- Offers 2m in cable length
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The USBAUB2MD 2m USB to Down Angle Micro USB Cable provides a high quality connection between your Micro USB 2.0 mobile devices (smartphones, digital cameras, Tablet PC devices, portable hard drives, etc.) and your PC or Mac computer, for everyday tasks such as charging, data synchronization or file transfers. The down-angled Micro USB connector allows you to access your mobile Micro USB devices, while keeping the cable out of the way, and stress away from the port. Designed and constructed for maximum durability, this high quality USB to Micro USB cable is backed by StarTech.com''s Lifetime Warranty. As an alternative, StarTech.com also offers a 2m USB to Up Angle Micro USB Cable (USBAUB2MU), which provides the same convenience as this down-angled cable, but allows you to connect to your Micro USB device from the opposite direction.
Tech Specs
| Features | Strain Relief |
|---|---|
| Conductor | Copper |
| Shielding | Yes |
| Brand Name | StarTech.com |
| Cable Type | USB/USB Micro-B |
| Cable Length | 6.56 ft |
| Color Family | Black |
| Manufacturer | StarTech.com |
| Product Name | 2m Micro USB Cable - A to Down Angle Micro B |
| Product Type | Data Transfer Cable |
| Product Color | Black |
| Shipping Width | 4.92" |
Show all 38 specsShow fewer
| WEEE Statement | https://media.startech.com/cms/pdfs/usbaub2md_weee.pdf |
|---|---|
| Jacket Material | Polyvinyl Chloride (PVC) |
| Shipping Height | 0.39" |
| Device Supported | PC |
| Connector Plating | Nickel |
| Country of Origin | China |
| Packaged Quantity | 1 Each |
| Data Transfer Rate | 480 Mbit/s |
| REACH free of SVHC | Yes |
| American Wire Gauge | 24/30 AWG |
| Weight (Approximate) | 0.04 lb |
| REACH Declaration URL | https://media.startech.com/cms/pdfs/usbaub2md_rohs.pdf |
| EU RoHS Declaration URL | https://media.startech.com/cms/pdfs/usbaub2md_rohs.pdf |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | USBAUB2MD |
| Connector Type on First End | USB 2.0 Type A - Male |
| Environmental Certification | EU RoHS |
| Connector Type on Second End | Micro USB 2.0 Type B - Male |
| Manufacturer Website Address | http://www.startech.com |
| Connector Gender on First End | Male |
| Shipping Weight (Approximate) | 1.76 oz |
| Connector Gender on Second End | Male |
| Connector on First End Details | 1 x 4-pin USB 2.0 Type A - Male |
| Connector on Second End Details | 1 x 5-pin Micro USB 2.0 Type B - Male |
| End of Life Manual Availability | Yes |
