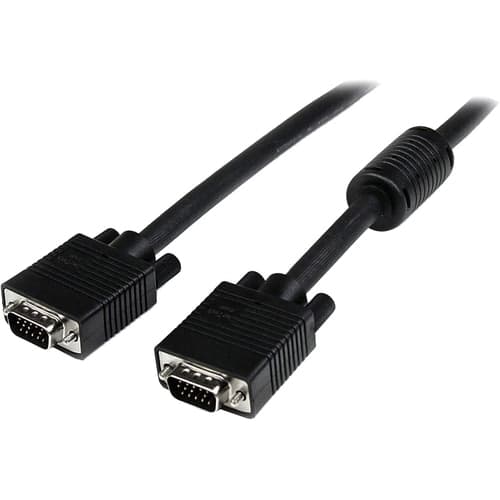

6FT COAX HIGH RES VGA MONITOR CABLE HD15 MALE TO MALE
SKU: 105530VPN: MXT101MMHQ
6FT COAX HIGH RES VGA MONITOR CABLE HD15 MALE TO MALE
Key Features
- Triple coaxial + twisted-pair wire for crystal clear display
- Durably constructed cable, with high quality HD15 connectors
- Impedance matched at 75 Ohms for full brightness and vibrant picture color from your VGA monitor

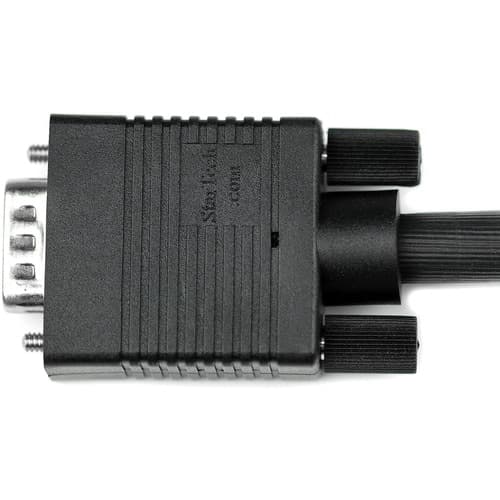

- High quality VGA connectors with molded PVC strain relief
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The MXT101MMHQ High Resolution VGA Cable (6ft) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
Tech Specs
| Conductor | Copper |
|---|---|
| Brand Name | StarTech.com |
| Cable Length | 6 ft |
| Color Family | Black |
| Manufacturer | StarTech.com |
| Product Name | High-Resolution Coaxial SVGA/VGA Monitor Cable |
| Product Type | Video Cable |
| Compatibility | <ul><li>Monitor</li></ul> |
| Product Color | Black |
| WEEE Statement | https://media.startech.com/cms/pdfs/mxt101mmhq_weee.pdf |
| Device Supported | Monitor |
| Country of Origin | China |
Show all 32 specsShow fewer
| Packaged Quantity | 1 Each |
|---|---|
| REACH free of SVHC | Yes |
| American Wire Gauge | 28 AWG |
| Cable Characteristic | Extension Cable |
| Weight (Approximate) | 0.60 lb |
| REACH Declaration URL | https://media.startech.com/cms/pdfs/mxt101mmhq_rohs.pdf |
| Additional Information | <b>Features:</b><ul><li>Ideal for high resolution monitors (1024x768 and above)</li><li>Triple-coaxial + twisted-pair wire for crystal clear display</li><li>Impedence matched at 75 Ohms for full brightness and vibrant picture color</li><li>Ferrite core eliminates EMI interference</li><li>Molded connector ends with strain relief</li></ul> |
| EU RoHS Declaration URL | https://media.startech.com/cms/pdfs/mxt101mmhq_rohs.pdf |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | MXT101MMHQ |
| Connector Type on First End | HD-15 - Male |
| Environmental Certification | EU RoHS |
| Connector Type on Second End | HD-15 - Male |
| Manufacturer Website Address | http://www.startech.com |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Connector on First End Details | 1 x HD-15 - Male |
| Connector on Second End Details | 1 x HD-15 - Male |
| End of Life Manual Availability | Yes |
