LEGRAND AV - C2G
6FT/1.8M CAT6A SNAGLESS STP CABLE-RED
SKU: SG4672VPN: C2G07365

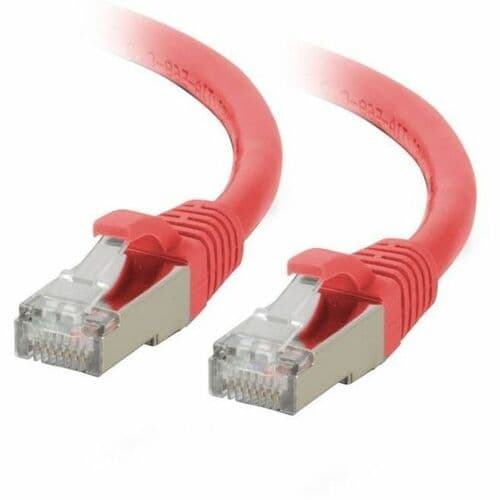

6FT/1.8M CAT6A SNAGLESS STP CABLE-RED
Key Features
- Designed for network adapters, hubs, switches, routers, HDBaseT applications and more
- Supports 10 Gigabit networks up to 328ft for fast data transmission and maximum performance
- Meets the ANSI/TIA-568-C.2 Cat6a requirements for supporting a wide variety of applications
- Constructed with shielded twisted pair (STP) wires, designed to protect a high speed network from noise and electromagnetic interference
- Snagless connector design for high density environments and protecting the RJ-45 connector's lock
- Available in a variety of colors to color-code a network
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
This Snagless Shielded Cat6a patch cable is ideal for use with 10GBase-T ports and equipment, such as network adapters, hubs, switches, routers, DSL/cable modems and patch panels, and will protect a high speed 10 Gigabit network connection from noise and electromagnetic interference. For voice/data/video distribution, this cable will handle bandwidth-intensive applications and drastically reduces both impedance and structural return loss (SRL). Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements.
Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality cable and plugs, this design minimizes Near-End Crosstalk (NEXT) levels. Available in a variety of colors to easily color-code a network installation. Individual length label on each cable for ease of use.
Tech Specs
| Width | 10" |
|---|---|
| Height | 0.5" |
| Features | PoE |
| Boot Type | Snagless |
| Shielding | Yes |
| Brand Name | C2G |
| Cable Type | Category 6a |
| Jacket Type | Standard Non-rated |
| Cable Length | 6 ft |
| Color Family | Red |
| Manufacturer | Legrand Group |
| Product Name | C2G 6ft (1.8m) Cat6a Snagless Shielded (STP) Ethernet Network Patch Cable - Red |
Show all 37 specsShow fewer
| Product Type | Network Cable |
|---|---|
| Product Color | Red |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Number of Pairs | 4 |
| Device Supported | Network Device |
| Material Details | <p>Copper - Conductor</p> |
| Application/Usage | Residential |
| Connector Plating | Gold |
| Country of Origin | Vietnam |
| Connector Material | Gold |
| Data Transfer Rate | 10 Gbit/s |
| American Wire Gauge | 26 AWG |
| Insulation Material | FM-PE |
| Cable Characteristic | Patch Cable |
| Number of Conductors | 8 |
| Weight (Approximate) | 0.18 lb |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Manufacturer Part Number | C2G07365 |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Manufacturer Website Address | http://www.legrand.us |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
