STARTECH.COM

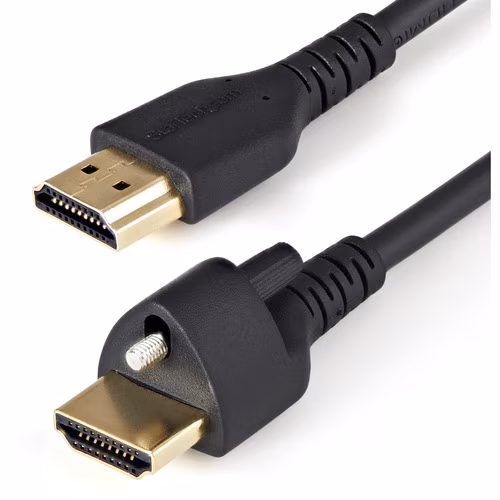

6.6FT HDMI CABLE WITH LOCKING SCREW SECURE CONNECTOR 4K 60HZ M/M

SKU: 8UL781VPN: HDMM2MLS

6.6FT HDMI CABLE WITH LOCKING SCREW SECURE CONNECTOR 4K 60HZ M/M

Key Features

  • SCREW LOCKING HDMI 2.0 CABLE: Premium High Speed HDMI 2.0 cable with Ethernet; Features one secure locking connector w/ removable screw to prevent disconnection due to tension or vibration; knurled thumbscrew for tool-less installation & removal
  • HIGH PERFORMANCE CABLE: This Ultra HD cable supports 18Gbps bandwidth; 4K 60Hz (3840x2160), 3D video, HDR for high contrast ratio, 21:9 aspect ratio, 32 Ch multi-stream audio with 1536Hz sampling rate, ARC, BT.2020 colorimetry
  • FLEXIBLE CABLE: Long lasting & slim (4.5 mm/0.18" diameter) TPE jacket absorbs stress of frequent bends protecting the core of the rugged UHD HDMI cord; High quality TPE jacket is non-toxic, halogen free & RoHS certified for environmental sustainability
  • APPLICATIONS: For office/boardrooms & travel, works with your TV, monitor or projector with top screw type or standard HDMI port; Works with some StarTech.com extenders/switches & other brands; Compatible with HDMI 2.0, 1.4 and earlier versions
  • SPECS: 2M (6.6 feet) | Black | HDMI 2.0 | HDMI Top Screw Locking Male to Non-Locking Male | 4.5 mm (0.18") OD, 34AWG| Jacket: TPE | EMI Shield: Al-Mylar Foil, Braid | StarTech.com Lifetime Warranty
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

This 2-meter HDMI® cable with a removable locking screw on one of the male connectors ensures premium video quality, enhanced reliability and ease of installation. The cable features a high-retention HDMI top screw locking connector with slot that fastens firmly to a wide range of top screw type HDMI female ports. This helps to prevent accidental disconnections and signal loss. Experience the latest that HDMI has to offer The cable supports resolutions of up to 4K@60Hz (3840x2160p) and bandwidths of up to 18Gbps. It also supports HDR (High Dynamic Range) for higher contrast ratio and vivid colors. With higher resolutions, increased speeds, and sharper images, you can expect an enhanced video experience. The cable is guaranteed to provide the very best HDMI performance available today. It's the perfect cable for creating the ultimate home theater or for providing lifelike digital signage. Plus, the cable also supports up to 32 uncompressed digital audio channels to provide crystal-clear sound. The cable is also backward compatible with previous HDMI specifications and will work with all of your existing HDMI devices. Secure your connections and avoid signal loss The top screw locking HDMI connectors are ideal for high traffic applications or in environments where vibrations could cause accidental disconnects and picture loss. It works perfectly with wall-mounted equipment and in situations where equipment is frequently moved. Just plug in the cable and fasten the top locking screw securely to the port, there are no special tools required. The screw will ensure that the connector does not loosen over time. Hassle-free installation The top screw locking connector comes with an integrated slot that helps you to adjust the separation between the screw and the HDMI connector. The top screw assembly is designed such that the screw can be removed from its slot, allowing the cable to also be used as an ordinary HDMI cable. The knurled thumbscrew type screw head enables easy tool-less installation and removal of the cable and ensures that the cable is securely connected to the female port when tightened by hand. The HDMM2MLS is backed by StarTech.com's Lifetime Warranty.

Tech Specs

6.6FT HDMI CABLE WITH LOCKING SCREW SECURE CONNECTOR 4K 60HZ M/M specifications
FeaturesEMI Protection
ShieldingYes
Brand NameStarTech.com
Cable TypeHDMI
Cable Length6.56 ft
Color FamilyBlack
ManufacturerStarTech.com
Product Name2m/6ft HDMI Cable with Locking Screw - 4K 60Hz HDMI 2.0 Cable
Product TypeVideo Cable
Product ColorBlack
Shipping Width8.66"
WEEE Statementhttps://media.startech.com/cms/pdfs/hdmm2mls_weee.pdf
Show all 37 specs
Jacket MaterialThermoplastic Elastomer (TPE)
Device SupportedProjector
Connector PlatingGold
Country of OriginChina
Packaged Quantity1 Each
Data Transfer Rate18 Gbit/s
REACH free of SVHCYes
American Wire Gauge34 AWG
Supported Resolution3840 x 2160
Weight (Approximate)0.14 lb
REACH Declaration URLhttps://media.startech.com/cms/pdfs/hdmm2mls_rohs.pdf
EU RoHS Declaration URLhttps://media.startech.com/cms/pdfs/hdmm2mls_rohs.pdf
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally FriendlyYes
Manufacturer Part NumberHDMM2MLS
Connector Type on First EndHDMI 2.0 Digital Audio/Video - Male
Environmental CertificationEU RoHS
Connector Type on Second EndHDMI 2.0 Digital Audio/Video - Male
Manufacturer Website Addresshttp://www.startech.com
Connector Gender on First EndMale
Shipping Weight (Approximate)0.32 oz
Connector Gender on Second EndMale
Connector on First End Details1 x 19-pin HDMI 2.0 Digital Audio/Video - Male
Connector on Second End Details1 x 19-pin HDMI 2.0 Digital Audio/Video - Male
End of Life Manual AvailabilityYes
