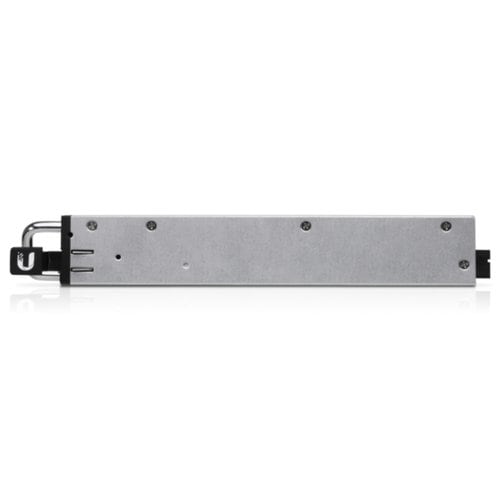

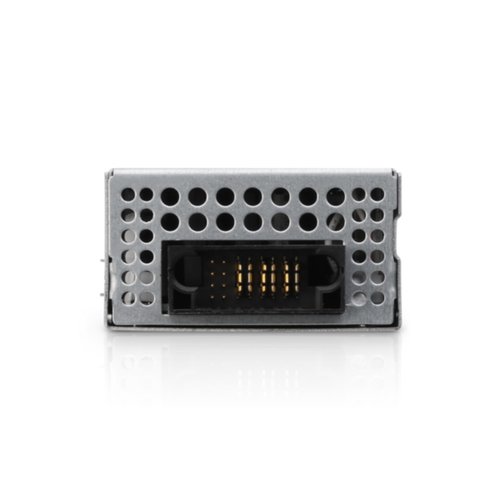

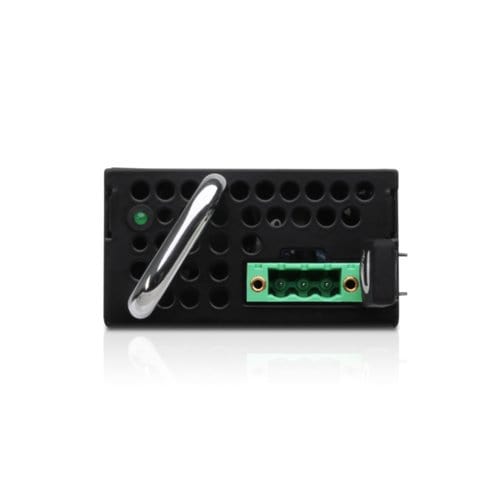

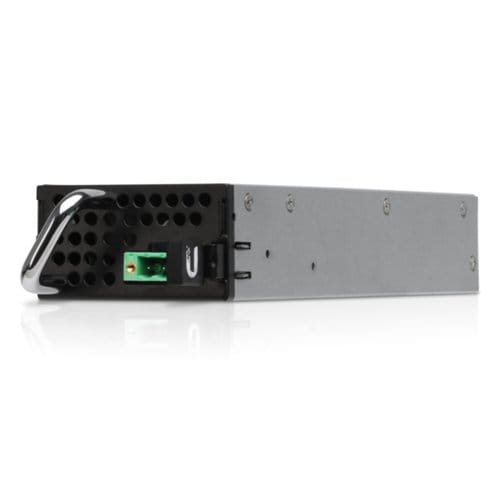

54V 150W DC TO DC PSU MODULE FOR EDGEPOWER
SKU: 7Y1746VPN: EP-54V-150W-DC
54V 150W DC TO DC PSU MODULE FOR EDGEPOWER
Key Features
- Flexible, Modular PSU Design
- Supports up to Two 150W PSU Modules
- Secondary AC-DC or DC-DC PSU Available
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
Modular DC Power Supply for EdgePoint
The EdgePower ™ is a high-power, modular PSU system designed to connect to EdgePoint ™ routers/switches, and provide reliable power to attached PoE devices.
The EdgePower uses modular PSUs for flexible configuration options. The EdgePower can utilize two modular PSUs to provide up to 300W of power, or be configured to provide up to 150W of power with an automatic PSU backup.
The EdgePower consists of a rack-mountable, two-bay housing and control unit, and includes one AC-DC 54V, 150W PSU module. The second PSU bay can house an AC-DC or DC-DC PSU module (sold separately):
• EP-54V-150W-AC
• EP-54V-150W-DC
High Power
The EdgePower provides up to 150W of power output. With an optional PSU in the secondary bay, the EdgePower may be configured to deliver up to 300W of power.
Backup PSU
The secondary PSU may be configured as a backup PSU. In backup mode, the secondary PSU remains inactive and offline. If failure of the primary PSU is detected, the secondary PSU automatically activates to supply continuous power.
Web UI
The EdgePower ™ is a high-power, modular PSU system designed to connect to EdgePoint ™ routers/switches, and provide reliable power to attached PoE devices.
The EdgePower uses modular PSUs for flexible configuration options. The EdgePower can utilize two modular PSUs to provide up to 300W of power, or be configured to provide up to 150W of power with an automatic PSU backup.
The EdgePower consists of a rack-mountable, two-bay housing and control unit, and includes one AC-DC 54V, 150W PSU module. The second PSU bay can house an AC-DC or DC-DC PSU module (sold separately):
• EP-54V-150W-AC
• EP-54V-150W-DC
High Power
The EdgePower provides up to 150W of power output. With an optional PSU in the secondary bay, the EdgePower may be configured to deliver up to 300W of power.
Backup PSU
The secondary PSU may be configured as a backup PSU. In backup mode, the secondary PSU remains inactive and offline. If failure of the primary PSU is detected, the secondary PSU automatically activates to supply continuous power.
Web UI
Designed for convenient management, the EdgePower Configuration Interface allows administrators to configure and monitor PSU features in a simple, graphical user interface. The EdgePower may be connected to the LAN for remote monitoring and configuration.
Tech Specs
| Depth | 11.8" |
|---|---|
| Width | 11.3" |
| Height | 1.7" |
| Brand Name | Ubiquiti |
| Manufacturer | Ubiquiti Inc. |
| Output Power | 150 W |
| Product Line | EdgePower |
| Product Name | Edgepower EP-54V-150W-DC Power Module |
| Product Type | Power Module |
| Input Voltage | 54 V DC |
| Product Model | EP-54V-150W-DC |
| Product Family | EdgePower |
Show all 17 specsShow fewer
| Package Contents | <ul> <li>Edgepower EP-54V-150W-DC Power Module</li> <li>Power Cord</li> <li>4 x Mounting Bracket</li> <li>8 x Bracket Screw (M4x30)</li> <li>8 x Screw Anchors (M4x24)</li> <li>Quick Start Guide</li> </ul> |
|---|---|
| Country of Origin | China |
| Weight (Approximate) | 5.95 lb |
| Manufacturer Part Number | EP-54V-150W-DC |
| Manufacturer Website Address | http://www.ui.com |
