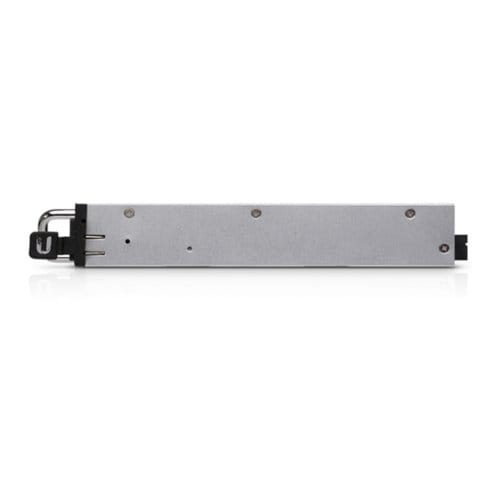

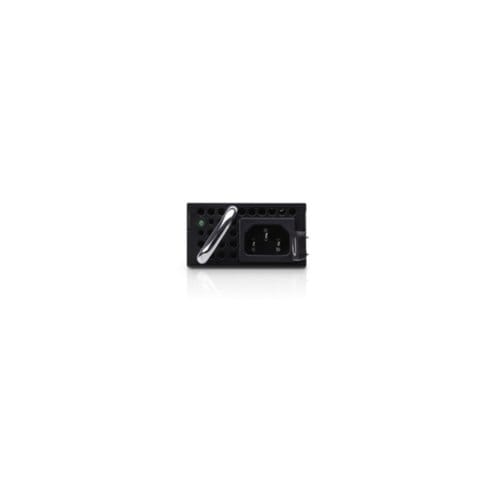

54V 150W AC TO DC PSU MODULE FOR EDGEPOWER

SKU: 7Y1747VPN: EP-54V-150W-AC

In Stock

$76.39

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Flexible, Modular PSU Design
Supports up to Two 150W PSU Modules
Secondary AC-DC or DC-DC PSU Available

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Modular DC Power Supply for EdgePoint

The EdgePower ™ is a high-power, modular PSU system designed to connect to EdgePoint ™ routers/switches, and provide reliable power to attached PoE devices.

The EdgePower uses modular PSUs for flexible configuration options. The EdgePower can utilize two modular PSUs to provide up to 300W of power, or be configured to provide up to 150W of power with an automatic PSU backup.

The EdgePower consists of a rack-mountable, two-bay housing and control unit, and includes one AC-DC 54V, 150W PSU module. The second PSU bay can house an AC-DC or DC-DC PSU module (sold separately):

EP-54V-150W-AC
EP-54V-150W-DC

High Power

The EdgePower provides up to 150W of power output. With an optional PSU in the secondary bay, the EdgePower may be configured to deliver up to 300W of power.

Backup PSU

The secondary PSU may be configured as a backup PSU. In backup mode, the secondary PSU remains inactive and offline. If failure of the primary PSU is detected, the secondary PSU automatically activates to supply continuous power.

Web UI

Designed for convenient management, the EdgePower Configuration Interface allows administrators to configure and monitor PSU features in a simple, graphical user interface. The EdgePower may be connected to the LAN for remote monitoring and configuration.

Tech Specs

54V 150W AC TO DC PSU MODULE FOR EDGEPOWER specifications
Depth	11.8"
Width	11.3"
Height	1.7"
Brand Name	Ubiquiti
Manufacturer	Ubiquiti Inc.
Output Power	150 W
Product Line	EdgePower
Product Name	Edgepower EP-54V-150W-AC Power Module
Product Type	Power Module
Input Voltage	230 V AC
Product Model	EP-54V-150W-AC
Product Family	EdgePower

Show all 17 specs

Package Contents	<ul> <li>Edgepower EP-54V-150W-AC Power Module</li> <li>Power Cord</li> <li>4 x Mounting Bracket</li> <li>8 x Bracket Screw (M4x30)</li> <li>8 x Screw Anchors (M4x24)</li> <li>Quick Start Guide</li> </ul>
Country of Origin	China
Weight (Approximate)	5.95 lb
Manufacturer Part Number	EP-54V-150W-AC
Manufacturer Website Address	http://www.ui.com
