4PORT GIG ETHERNET W/ POE

SKU: 8JX832VPN: LB-GE0811-S1

In Stock

Request pricing

Pricing for this item is configured per-order. Add it to your inquiry below and we'll send a tailored quote.

Key Features

Adds four independent Gigabit Ethernet ports through an available PCI Express slot to server or desktop systems, with Power over Ethernet capability
Intel I350-T4 chipset supports reliable and advanced network connectivity
Compliant with IEEE 802.3, 802.3u, 802.3ab with full duplex and Wake-on-LAN support

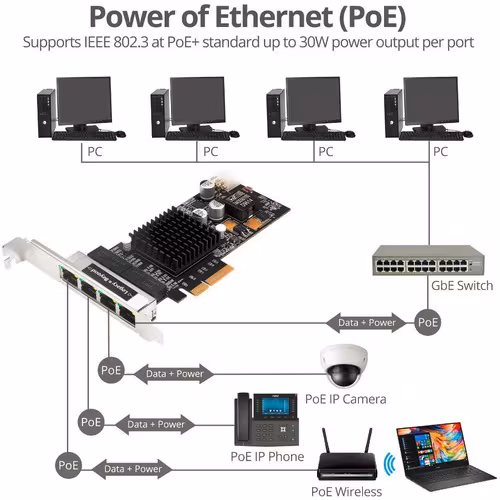

Supports IEEE 802.3at PoE+ standard, with up to 30W power output per port
Supports IEEE 802.3az Energy Efficient Ethernet (EEE)
Supports PXE network boot
Features innovative power management including Energy Efficient Ethernet (EEE) and DMA Coalescing to increase efficiency and reduce power consumption
Supports IEEE standard 802.1Q for VLAN
Advanced Configuration and Power Interface (ACPI) power management states and wake-up capability
Advanced Power Management (APM) wake-up functionality

Adding to inquiry lets you bundle multiple products into a single quote request.

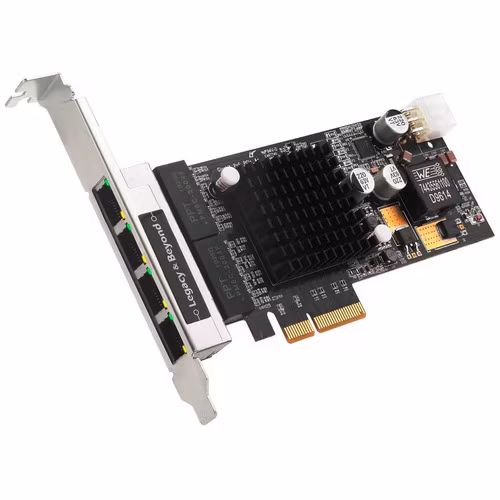

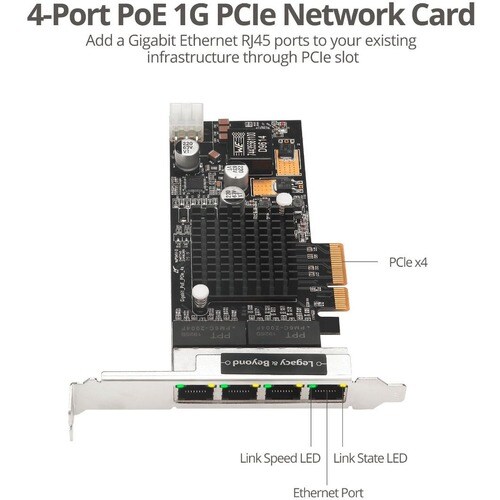

Quickly adds four independent Gigabit Ethernet ports with PoE through an available PCI Express slot to server or desktop systems

Adds four independent Gigabit Ethernet ports through an available PCI Express slot to server or desktop systems, with Power over Ethernet capability
Intel I350-T4 chipset supports reliable and advanced network connectivity
Compliant with IEEE 802.3, 802.3u, 802.3ab with full duplex and Wake-on-LAN support
Supports IEEE 802.3at PoE+ standard, with up to 30W power output per port
Supports IEEE 802.3az Energy Efficient Ethernet (EEE)
Supports PXE network boot
Features innovative power management including Energy Efficient Ethernet (EEE) and DMA Coalescing to increase efficiency and reduce power consumption
Supports IEEE standard 802.1Q for VLAN
Advanced Configuration and Power Interface (ACPI) power management states and wake-up capability
Advanced Power Management (APM) wake-up functionality
Supports 12V mini-fit 6-pin power connector input
Powered device (PD) auto detection and classification

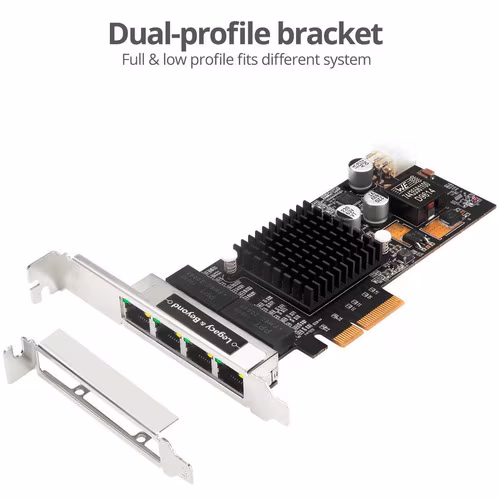

Fits both standard height and low profile system chassis with the included full size and spare low profile brackets

4PORT GIG ETHERNET W/ POE specifications
Depth	6.4"
Width	4.7"
Height	0.9"
Brand Name	SIIG
Form Factor	Plug-in Card
Color Family	Black
Manufacturer	SIIG, Inc
Product Name	4-Port Gigabit Ethernet with PoE PCIe Card - Intel 350
Product Type	Gigabit Ethernet Card
Product Color	Black

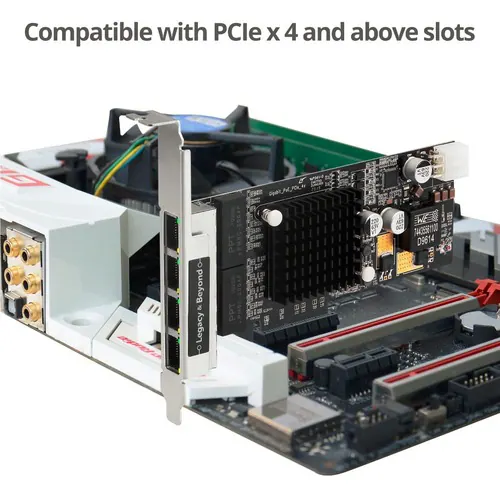

Host Interface	PCI Express 2.1 x4
Device Supported	Server

Show all 23 specs

Package Contents	<ul> <li>4-Port Gigabit Ethernet with PoE PCIe Card - Intel 350</li> <li>Driver CD</li> <li>SATA to 6-pin Molex Power Cable</li> <li>Low Profile Bracket</li> <li>Quick Start Guide</li> </ul>
Country of Origin	Switzerland

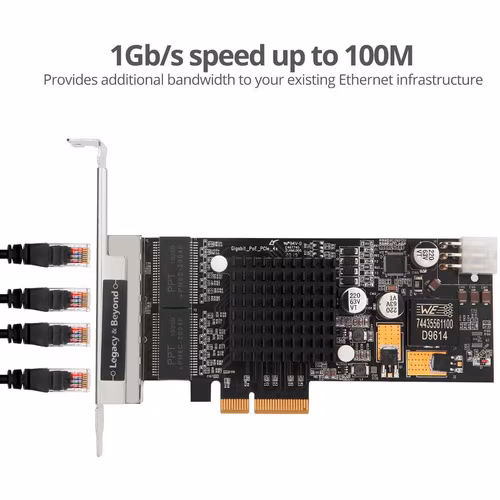

Network Technology	10/100/1000Base-T
Media Type Supported	Twisted Pair
Weight (Approximate)	4 oz
Total Number of Ports	4
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	LB-GE0811-S1
Manufacturer Website Address	http://www.siig.com
Number of Network (RJ-45) Ports	4
