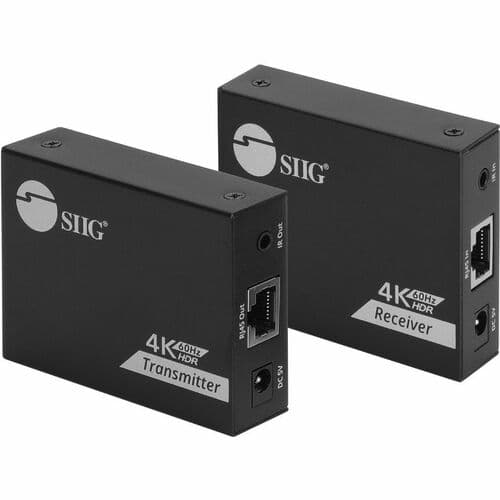

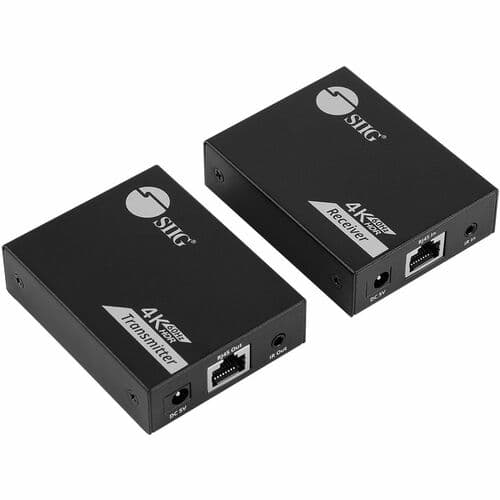

4K60HZ HDMI OVER CAT6 EXTENDER WITH LOOPOUT & IR 50M

SKU: 13PX45VPN: CE-H27K11-S1

In Stock

Request pricing

Pricing for this item is configured per-order. Add it to your inquiry below and we'll send a tailored quote.

Key Features

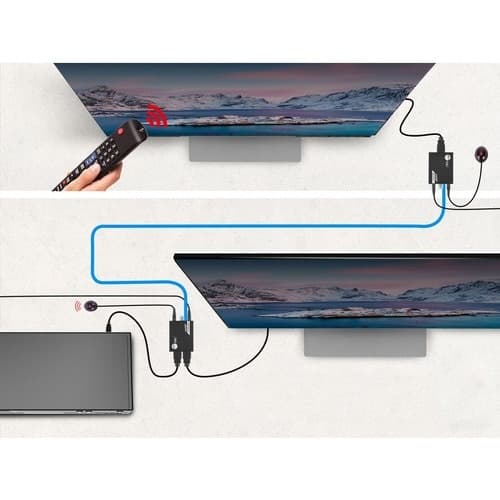

Extends HDMI signals from DVD players, game consoles, or HDMI-equipped computers up to 164 ft (50 meters) via Cat6/7 networking cable, ideal for home theater, conference room or other audio/video applications that require remote location setup
Supports Ultra High-Definition video resolution up to 4K@60Hz, HDCP 2.2, YUV 4:4:4, 8-bit, HDR 4:2:0 10-bit to deliver a crystal-clear picture quality, Deep color and 3D

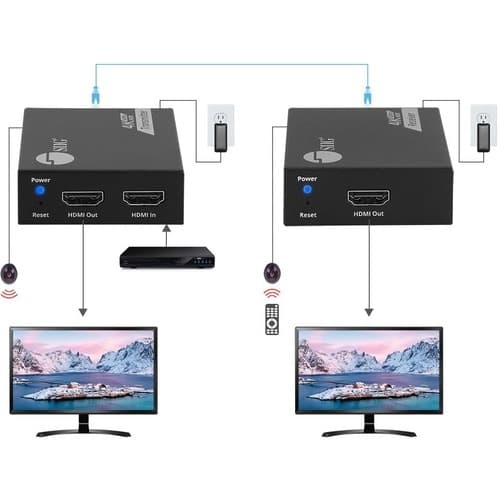

The transmitter can work as an HDMI splitter with the additional HDMI output design and allows screen mirroring to the extended display
Supports EDID passthrough and auto downscaling, detects and configures video resolution from 4K to 1080p to the capabilities of each connected monitor.
Audio supports PCM / DTS-HD/ Dolby Digital 5.1ch, support IR passthrough for 20KHz to 60KHz
Lightning Protection, Surge Protection, ESD Protection provides durability and minimizes EMI/RFI noise interference.
Premium metal housing offers excellent heat dissipation further enhances durability for dependable performance and long life
Plug-n-Play, no driver and software installation or hardware setup is required

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

SIIG 4K60Hz HDMI over Cat6 Extender with Loopout & IR - 50m- HDMI Extender- Auto Downscaling - 4K HDMI Extender, Easily extends HDMI 4K60Hz signals up to 164ft (50m) over a single Cat6/7 networking cable with a local HDMI output for monitoring the extended display - 18Gbps bandwidth - HDCP 2.2 / HDR 10 / 5.1CH audio - Nearly zero latency - Auto Downscaling - IR Control - Metal Housing - ESD Protection - 2 years warranty

Tech Specs

4K60HZ HDMI OVER CAT6 EXTENDER WITH LOOPOUT & IR 50M specifications
HDMI In	Yes
HDMI Out	Yes
Frequency	60 Hz
Brand Name	SIIG
Manufacturer	SIIG, Inc
Product Name	4K60Hz HDMI over Cat6 Extender with Loopout & IR - 50m
Product Type	Video Extender Transmitter/Receiver
Product Color	Black
Graphics Modes	4K
Receiver Depth	2.36"
Receiver Width	2.95"
Network (RJ-45)	Yes

Show all 36 specs

Receiver Height	0.83"

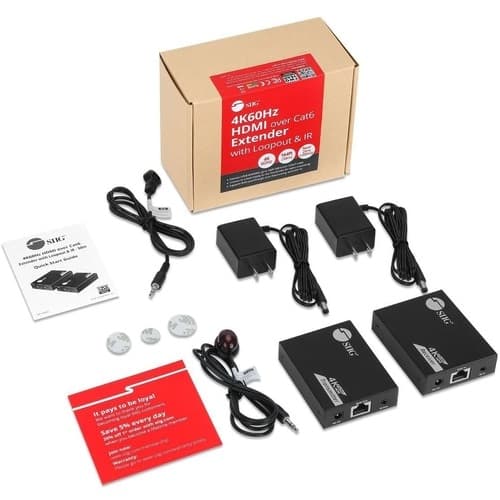

Package Contents	<ul> <li>1 x Transmitter Unit</li> <li>1 x Receiver Unit</li> <li>2 x Power Adapter </li> <li>IR Blaster Extension Cable</li> <li>IR Receiver Extension Cable</li> <li>Quick Start Guide</li> </ul>
Application/Usage	Digital Signage System
Country of Origin	China
Transmitter Depth	2.36"
Transmitter Width	2.95"
Transmitter Height	0.83"
Media Type Supported	Twisted Pair
Number of HDMI Inputs	1
Supported Video Modes	720p
Number of HDMI Outputs	2
Connectivity Technology	Wired
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	CE-H27K11-S1
Maximum Video Resolution	3840 x 2160
Maximum Operating Distance	164 ft
Twisted Pair Cable Standard	Category 7
Manufacturer Website Address	http://www.siig.com
Receiver Weight (Approximate)	4.64 oz
Number of Network (RJ-45) Ports	2
Transmitter Weight (Approximate)	4.64 oz
Number of Input Devices Supported	1
Number of Output Devices Supported	2
