4K HDMI VIDEO CAPTURE BOX WITH VOLUME CONTROL & LOOPOUT

SKU: 07AN29VPN: CE-H27311-S1

In Stock

$189.99$143.13

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

4K HDMI VIDEO CAPTURE BOX WITH VOLUME CONTROL & LOOPOUT Key Features

Professional like HDMI capture device with audio embedding through USB 3.1 connection from your PC system, Utilizes USB 3.1 interface for high-speed transmission
Allows capture and record in 4Kx2K@30Hz while viewing at 4K@60Hz simultaneously. This device saves you the cost and hassle of buying a splitter to play and capture at the same time.
Support video capture and record resolution up to 4Kx2K@30Hz, Supports HDR10 to SDR conversion
Supports HDMI input & loopout up to 4Kx2K@60Hz, Supports playing 4K HDR on HDMI out while streaming perfect 4K2K@30 with SDR colors for gameplay capture.
Volume control knob to adjust the MIC/Headphone volume
Automatically detects video formats to ensure plug-and-play operation
Mixed audio support from Line-in and HDMI with HDMI audio extraction to connect analog stereo speakers
Great for online meetings, training, gameing and live broadcast
Compatible with Windows, Mac and Linux OS. Works with most 3rd party software such as OBS Studio, AMCap and VLC

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

4K HDMI VIDEO CAPTURE BOX WITH VOLUME CONTROL & LOOPOUT Overview

Overview

Easily capture and save 4Kx2K@60Hz HDMI signals in 4Kx2K@30Hz resolution from any HDMI source such as Gaming console, Media players, or Set-top box while simultaneously viewing in 4K@60Hz resolution, Volume Control, Aluminum Housing, TAA compliant

Features

Easily capture and record 4K HDMI live video with low latency via a USB-C device and adjust the sound directly with the volume knob

4K UHD Resolution
Supports streaming 4K (3840x2160) @60Hz Ultra high-definition video resolution and recording 4K (3840x2160) @30Hz UHD video resolution, ideal for game capture

HDR Convert SDR
This 4K HDMI Video Capture Box supports HDR10 to SDR conversion when a monitor/display without HDR or HDMI source with HDR

USB Record
Stream video via USB-C and supports USB Video Class (UVC) 1.0/1.1/1.5 and up to 5Gbps date transfer

Auto Downscaling
Detects and configures the video resolution automatically according to the capabilities of the connected monitor

Stereo Audio/Control
Supports stereo audio embedded and HDMI audio extractor great for adding voice over to your gameplay. Built-in volume control knob to adjust the microphone/headphone volume

Multiple Connectivity Ports

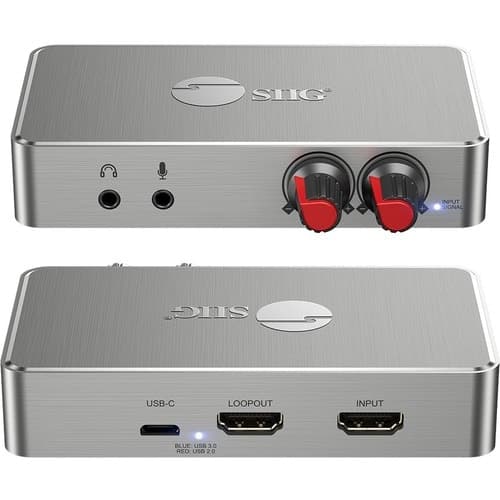

Comes with one HDMI video input port, one HDMI video output port, one USB-C 3.2 Gen 1 output port (Host), one 3.5mm microphone input port, one 3.5mm stereo audio output port, and two audio volume knob

4K HDMI VIDEO CAPTURE BOX WITH VOLUME CONTROL & LOOPOUT Tech Specs

4K HDMI VIDEO CAPTURE BOX WITH VOLUME CONTROL & LOOPOUT specifications
USB	Yes
HDMI	Yes
Width	2.5"
Height	0.9"
Length	4.6"
Functions	Video Streaming
Brand Name	SIIG
Manufacturer	SIIG, Inc
Product Name	4K HDMI Video Capture Box with Volume Control & Loopout
Product Type	Video Capturing Device
Audio Line In	Yes
TAA Compliant	Yes

Show all 25 specs

Audio Line Out	Yes

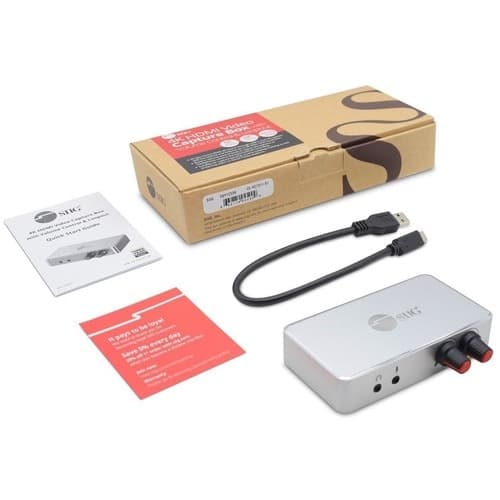

Package Contents	<ul> <li>4K HDMI Video Capture Box with Volume Control & Loopout</li> <li>1 x USB 3.2 Gen 1 Type-C to Type-A Cable, 0.98ft (30cm)</li> <li>1 x User Reference Guide</li> </ul>
Country of Origin	Taiwan
Packaged Quantity	1
Maximum Resolution	3840 x 2160
Platform Supported	PC
Weight (Approximate)	0.44 lb
Screen Mode Supported	4K
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally Friendly	Yes
Manufacturer Part Number	CE-H27311-S1
Operating System Supported	Mac OS X 11.0 Big Sur
Manufacturer Website Address	http://www.siig.com
