SIIG
4K HDMI 1.4 HDBASET EXTENDER SNGL CAT5E/6 W/RS232 IR POC 100M
SKU: 8JX698VPN: CE-H23F11-S1
4K HDMI 1.4 HDBASET EXTENDER SNGL CAT5E/6 W/RS232 IR POC 100M
Key Features
- Video Extender Transmitter/Receiver provides efficient and feasible audio/video transmission, decoding, and extending
- 3840 x 2160 maximum video resolution for a spectacular, sharp display with added reliability
- HDMI in allows convenient transfer of content and data to video extender transmitter/receiver to ensure maximum dependability
- HDMI out enables you to transfer data from your devices to video extender transmitter/receiver with added efficiency
- Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
- The CE-H23F11-S1 video extender transmitter/receiver provides plenty of freedom with wired connectivity
- 1 input devices supported to better accommodate your specific requirements
- 1 output devices supported for maximum feasibility and usage convenience
- 328.08 ft maximum operating distance for feasible operation and optimal coverage
- 4K graphics mode provides optimal video output with remarkable picture clarity
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
Extends HDMI 1.4 audio and video signals, RS232 control, IR control, and Power over Cable (PoC) up to 100 meters over a single CAT5e/6 cable with industry recognized HDBaseT technology
- Extends HDMI 1.4 audio and video signal from your HDMI source to a remote HDMI display up to 330ft (100m) at Full HD 1080p, up to 230ft (70m) at UHD 4K (3840x2160) through a single premium quality CAT5e/6 cable
Note: The transmission distance will vary depending on cable quality, 100% copper and IEEE-568B wiring standard recommended - Delivers crystal clear picture quality with resolution up to 3840x2160@30Hz (YUV 4:4:4 8-bit / YUV 4:2:0 10-bit)
- Pure unaltered uncompressed 7.1ch digital HDMI over CAT cable transmission, DTS-HD Master Audio and Dolby TrueHD high bit rate audio support

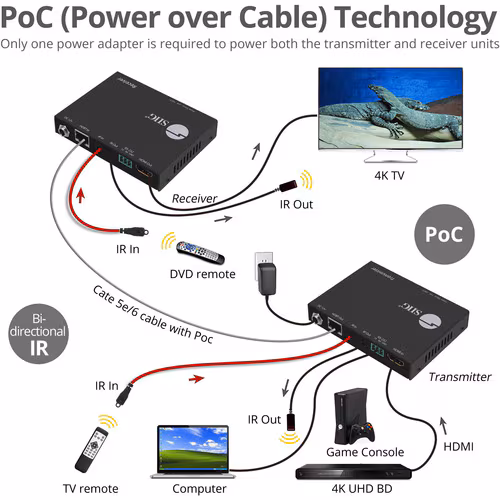

- Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered using only one power adapter connected to either unit
- Bi-directional IR sensors allow you to remotely control the HDMI source device at the remote display side or control the remote display at the source device side
- High quality metal housing with cooling slots provide excellent ESD and electromagnetic protection plus excellent heat dissipation and cooling for stable operation during extended hours of use
- Slim profile design easily adopts into versatile application environment, wall mountable housing for easy and varied installation requirements
Tech Specs
| HDMI In | Yes |
|---|---|
| HDMI Out | Yes |
| Brand Name | SIIG |
| Form Factor | Wall Mountable |
| Serial Port | Yes |
| Manufacturer | SIIG, Inc |
| Product Name | 4K HDMI HDBaseT Extender Over Single Cat5e/6 with RS-232, IR & PoC - 100m |
| Product Type | Video Extender Transmitter/Receiver |
| Product Model | CE-H23F11-S1 |
| TAA Compliant | Yes |
| Graphics Modes | 4K |
| Network (RJ-45) | Yes |
Show all 32 specsShow fewer

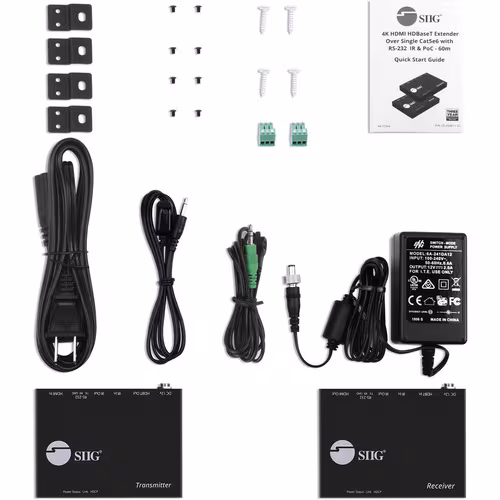

| Package Contents | <ul> <li>4K HDMI HDBaseT Extender Over Single Cat5e/6 with RS-232, IR & PoC - 100m</li> <li>Power Adapter</li> <li>IR Blaster Extension Cable & IR Receiver Extension Cable</li> <li>4 x Mounting Ears </li> <li>8 x Screw kit</li> <li>2 x Terminal Block kit</li> <li>User Reference Guide</li> </ul> |
|---|---|
| Country of Origin | Taiwan |
| Transmitter Depth | 4.06" |
| Transmitter Width | 2.87" |
| Transmitter Height | 0.83" |
| Media Type Supported | Twisted Pair |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Connectivity Technology | Wired |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | CE-H23F11-S1 |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Operating Distance | 328.08 ft |
| Twisted Pair Cable Standard | Category 6 |
| Manufacturer Website Address | http://www.siig.com |
| Number of Network (RJ-45) Ports | 2 |
| Transmitter Weight (Approximate) | 8 oz |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
