4K 60HZ HDR HDMI KVM OVER CAT6 EXTENDER

SKU: 06YQ34VPN: CE-H27811-S1

4K 60HZ HDR HDMI KVM OVER CAT6 EXTENDER

4K 60HZ HDR HDMI KVM OVER CAT6 EXTENDER Key Features

  • Extends and transmits 4K@60Hz HDMI video/audio and USB 2.0 signals up to 230ft (70m) through a Cat6/6a/7 network cable with nearly zero latency
  • Supports USB 2.0 extension from the transmitter to the receiver, allowing you to connect a keyboard/Mouse and support touch screen at the extended location for remotely operate your PC system
  • Supports digital audio extraction through the receiver's S/PDIF port, with PCM 2ch, Dolby, DTS 5.1
  • The transmitter's HDMI loop-out allows for local monitoring of the extended display
  • The transmitter can work as an HDMI splitter with the additional HDMI output design, and allows screen mirroring to another display device
  • Lightning protection, surge protection, ESD protection
  • Plug and play, no driver installation required

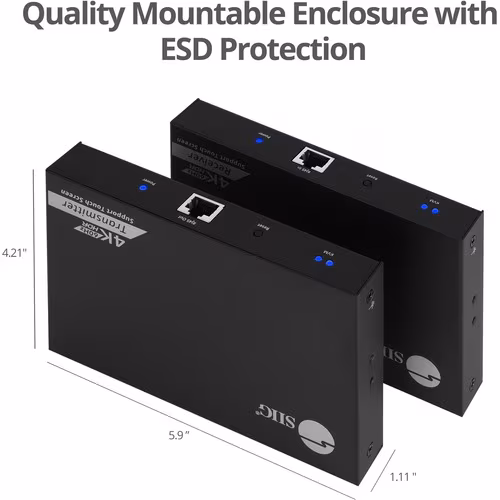

  • High quality metal housing improve heat dissipation and ensure system stability during long hours of operation
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

4K 60HZ HDR HDMI KVM OVER CAT6 EXTENDER Overview

Multiple Connectivity Ports

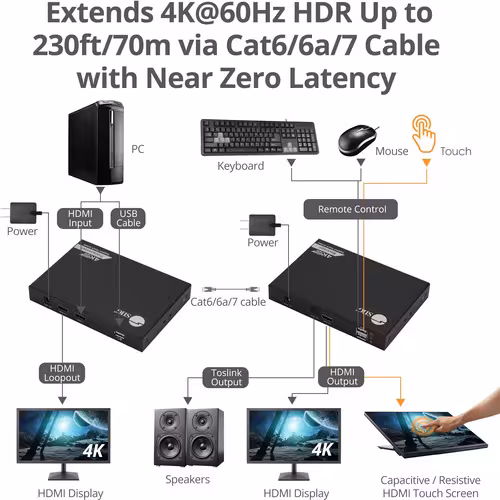

Comes with one HDMI input port, one HDMI video loop-out port, one HDMI video output port, one USB 2.0 port (for Host), two USB 2.0 ports for keyboard & mouse or touch screen, one S/PDIF (Toslink) audio output port, two RJ45 network ports, two reset buttons, two DC power jacks (5V/2A)

Applications

  • Lecture hall
  • Educational facilities
  • Multimedia education
  • Home theater
  • Restaurant
  • Shopping center
  • Digital signage
  • Meeting room
  • Trade show
  • Library
  • Show room
  • Church

4K 60HZ HDR HDMI KVM OVER CAT6 EXTENDER Tech Specs

4K 60HZ HDR HDMI KVM OVER CAT6 EXTENDER specifications
USBYes
HDMIYes
Frequency50 Hz
Brand NameSIIG
Device TypeKVM Extender
Graphic Mode4K
ManufacturerSIIG, Inc
Product Name4K 60Hz HDR HDMI KVM Over Cat6 Extender with S/PDIF & Touch Screen Support
Product TypeKVM Extender
Input Voltage230 V AC
Product ColorBlack
Receiver Depth4.15"
Show all 36 specs
Receiver Width6.02"
Network (RJ-45)Yes
Receiver Height0.87"
Package Contents<ul> <li>1 x Transmitter</li> <li>1 x Receiver</li> <li>2 x Power Adapter</li> <li>USB 2.0 Type-A to Type-A cable</li> <li>Mounting ears & Screw kit</li> <li>User manual</li> </ul>
Country of OriginChina
Transmitter Depth4.15"
Transmitter Width6.02"
Transmitter Height0.87"
Input Voltage Range100-240V
Number of USB Ports3
Number of HDMI Ports3
Connectivity TechnologyWired
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberCE-H27811-S1
Maximum Video Resolution3840 x 2160
Maximum Operating Distance229.66 ft
Manufacturer Website Addresshttp://www.siig.com
Number of Computers Supported1
Receiver Weight (Approximate)12.32 oz
Number of Local Users Supported1
Number of Network (RJ-45) Ports2
Number of Remote Users Supported1
Transmitter Weight (Approximate)12.32 oz
