SIIG
HDMI 2.0 4K HDR REPEATER 20M
$28.49
California Proposition 65 Warning
Cancer
4K 60HZ HDMI OVER IP MATRIX KIT
SKU: 07AP83VPN: CE-H28A11-S1
4K 60HZ HDMI OVER IP MATRIX KIT
Key Features
- Extends 4K@60Hz HDMI signals to a distant display up to 394ft (120m) over economical Cat6/7 network cabling
- Supports HDMI 4K60Hz up to 18Gbps bandwidth, HDCP 2.2, PoE, IR and RS-232 pass-through path
- Flexible and scalable UHD Video Broadcasting by Gigabit Ethernet LAN/Switch; Support one to one, one to many & multi-casting broadcasting architecture, up to 1,023 Groups Multi-Casting
- Supports Video Wall function and KVM, Each transmitter can be theoretically multicast to an unlimited number of displays in video wall applications or unlimited displays in multicast applications, Supports 90, 180 and 270 clockwise image rotation
- Built-in bi-directional IR signal from 20kHz to 60kHz provides full control capability, allowing remote control the HDMI source device from the display and vice versa
- Support RS-232 control up to 115,200 bps through connector, Easy Dip Switch matching for multi-casting group configuration
- Supports PCM/ DTS-HD/ Dolby Digital 7.1ch via HDMI, PCM 2ch, Dolby/DTS 5.1ch via Toslink and Stereo digital audio via 3.5mm headset jack, S/PDIF Audio needs to be enabled by controller CE-H25411-S2, sold separately
- High quality durable wall mounting metal housing with Lightning/Surge/ESD protection provides durability and minimizes EMI/RFI noise interference.
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
SIIG 4K60Hz 18Gbps HDMI over IP Matrix Kit - HDMI over IP Matrix Kit, Extends 4K@60Hz HDMI signal up to 394ft (120m) over a single CAT6/7 cable, PoE, One-to-One, One-to-Many, N to M Multi-casting, Video Wall, KVM, HDCP 2.2, HDR 10, Stereo, S/PDIF, Bi-directional IR, RS-232 Control, ESD Protection, TAA Compliant, 3 years Warranty, Encoder (TX) (CE-H27F11-S1) and Decoder (RX) (CE-H27G11-S1)
Tech Specs
| HDMI In | Yes |
|---|---|
| HDMI Out | Yes |
| Frequency | 50 Hz |
| Brand Name | SIIG |
| Form Factor | Wall Mountable |
| Manufacturer | SIIG, Inc |
| Product Name | 4K 60HZ HDMI over IP Matrix Kit |
| Product Type | Video Extender Transmitter/Receiver |
| Product Color | Black |
| TAA Compliant | Yes |
| Graphics Modes | 4K |
| Receiver Depth | 5.19" |
Show all 39 specsShow fewer
| Receiver Width | 6.81" |
|---|---|
| Network (RJ-45) | Yes |
| Receiver Height | 1.09" |

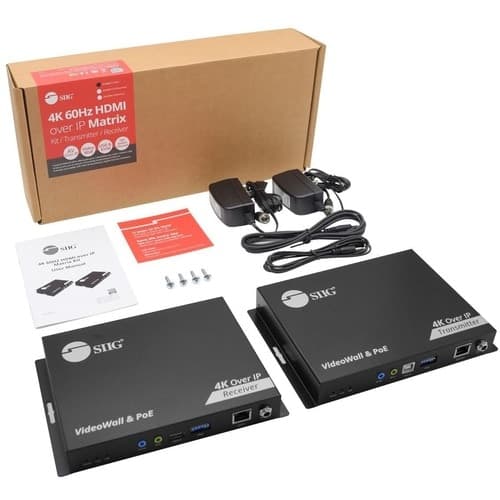

| Package Contents | <ul> <li>1 x Transmitter</li> <li>1 x Receiver</li> <li>2 x Power Adapter</li> <li>IR Blaster Extension Cable</li> <li>IR Receiver Extension Cable</li> <li>4 x M4x20mm Screws </li> <li>User Manual</li> </ul> |
| Country of Origin | Taiwan |
| Transmitter Depth | 5.19" |
| Transmitter Width | 6.81" |
| Transmitter Height | 1.09" |
| Number of USB Ports | 7 |
| Media Type Supported | Twisted Pair |
| Number of HDMI Inputs | 1 |
| Supported Video Modes | 720p |
| Number of HDMI Outputs | 1 |
| Connectivity Technology | Wired |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | CE-H28A11-S1 |
| Maximum Video Resolution | 3840 x 2160 |
| Power over Ethernet (PoE) | Yes |
| Maximum Operating Distance | 396 ft |
| Twisted Pair Cable Standard | Category 7 |
| Manufacturer Website Address | http://www.siig.com |
| Receiver Weight (Approximate) | 1.44 lb |
| Number of Network (RJ-45) Ports | 2 |
| Transmitter Weight (Approximate) | 1.41 lb |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
