20M DISPLAYPORT 1.2 F/O CABLE FIBER OPTIC CABLE HIGH QUAL ACTIVE
$257.69
California Proposition 65 Warning
Cancer
49FT FIBER OPTIC DISPLAY PORT 1.2 BLACK CABLE
SKU: 9CY544VPN: CB-DP2211-S1
49FT FIBER OPTIC DISPLAY PORT 1.2 BLACK CABLE
In Stock
Request pricing
Pricing for this item is configured per-order. Add it to your inquiry below and we'll send a tailored quote.
Key Features
- This a/v cable provides splendid performance and clear connectivity
- Features fiber optic cable type to better accommodate your precise power supply requirements with maximum charging productivity
- Ensures a protection from EMI and RF signals
- Audio/Video Device device supported according to your requirements with maximum productivity
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
Premium quality DisplayPort 1.2 active fiber optic cable transmits ultra high resolution signals up to 4K@60Hz over long distances

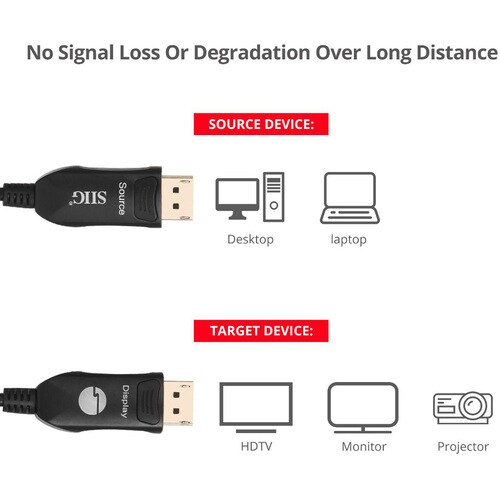

- Connects DisplayPort source devices to DisplayPort equipped monitors or displays over long distances

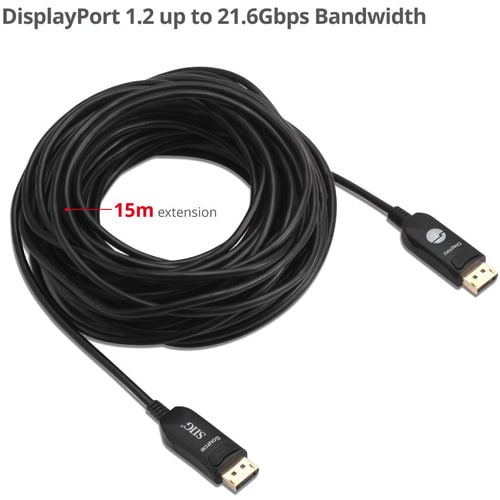

- Transmits Ultra HD 4K signals up to 15 meters (49ft)
- Compliant with DisplayPort 1.2 specification, 1, 2 and 4 lanes at 1.62Gbps, 2.7Gbps & 5.4Gbps
- 21.6Gbps signal bandwidth and up to 4Kx2K 60Hz YUV 4:4:4 resolution
- AOC (Active Optical Cable) Fiber/Copper inner conductor material and gold-plated connectors provide maximum video clarity
- Very low Electro Magnetic Interference (EMI) and Radio Frequency Interference (RFI) profile allows installing the cable into sensitive environments

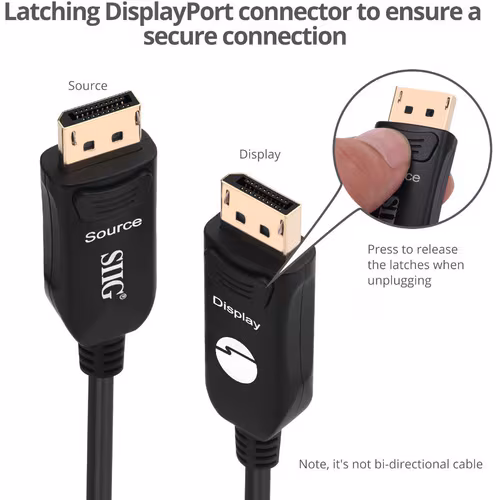

- Features unidirectional connection requiring the cable to be installed in a specific direction, the end marked Source plugs into a DisplayPort source and the end marked Display plugs into a DisplayPort TV, monitor, projector, and other display devices
- Premium quality latching DisplayPort connector prevents accidental disconnection
- Plug and Play and hot swappable
Tech Specs
| Features | Active |
|---|---|
| Brand Name | SIIG |
| Cable Type | Fiber Optic |
| Cable Length | 49.21 ft |
| Manufacturer | SIIG, Inc |
| Product Name | 4K DisplayPort 1.2 AOC Cable - 15M |
| Product Type | A/V Cable |
| Product Color | Black |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Device Supported | Audio/Video Device |
| Connector Plating | Gold |
| Country of Origin | China |
Show all 23 specsShow fewer
| Data Transfer Rate | 21.6 Gbit/s |
|---|---|
| American Wire Gauge | 26 AWG |
| Supported Resolution | 3840 x 2160 |
| Weight (Approximate) | 1.48 lb |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | CB-DP2211-S1 |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Male |
| Manufacturer Website Address | http://www.siig.com |
| Connector on First End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
