40 PIN IDE TO SATA ADAPTER IDE TO HDD SSD ODD DISK CONVERTER

SKU: RZ3115VPN: IDE2SAT2

In Stock

$18.83

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Connect a SATA device to an IDE/ATA motherboard or controller card
Complete hardware solution; no software required
Support for 48-bit Logical Block Addressing (LBA)
Compliant with SATA revision 1.0 specification
Supports SATA I/II/III (1.5/3/6Gbps) drives
Compatible with Ultra ATA 133 specification
Supports 2.5" , 3.5" , and 5.25" SATA Drives
ODD (Optical Disk Drive) support, including Blu-ray, DVD, and CD-ROM drives

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The IDE2SAT240-pin IDE toSATA adapter enables you to connect a SATA I/II/III drive to an availableIDE/ATA 33/66/100/133 motherboard port -a cost effective solution that allows you to add newer SATA drives, andkeepyourexisting motherboard. The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, orCD-ROM drives to an older IDE motherboard. TheIDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.

Tech Specs

40 PIN IDE TO SATA ADAPTER IDE TO HDD SSD ODD DISK CONVERTER specifications
Width	0.8"
Height	0.9"
Length	3"
Brand Name	StarTech.com
Color Family	Black
Manufacturer	StarTech.com
Product Name	40-Pin IDE PATA to SATA Adapter Converter for HDD/SSD/ODD
Product Type	IDE to SATA Adapter
Compatibility	<ul><li>Blu-ray drive</li><li>DVD drive</li><li>CD-ROM drive</li></ul>
Product Color	Black

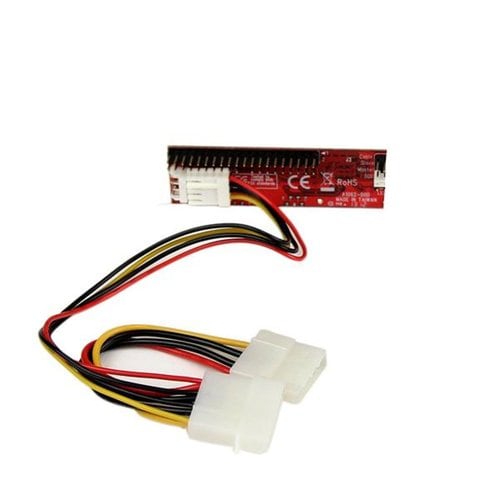

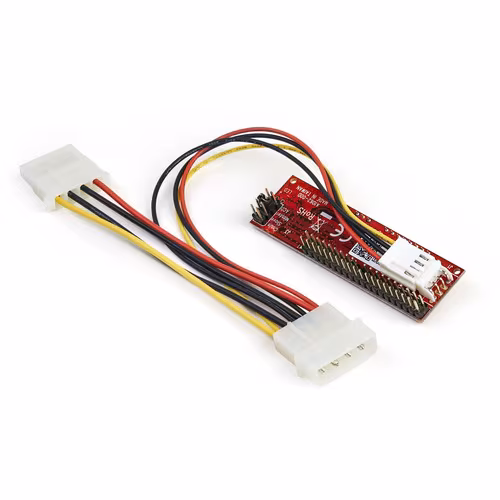

Package Contents	<ul><li>40-Pin IDE PATA to SATA Adapter Converter for HDD/SSD/ODD</li><li>1 x LP4 Molex to SP4 Power Cable</li><li>1 x Instruction Manual</li></ul>
Product Material	Steel

Show all 22 specs

Country of Origin	Taiwan
Packaged Quantity	1 Each
Weight (Approximate)	1 oz

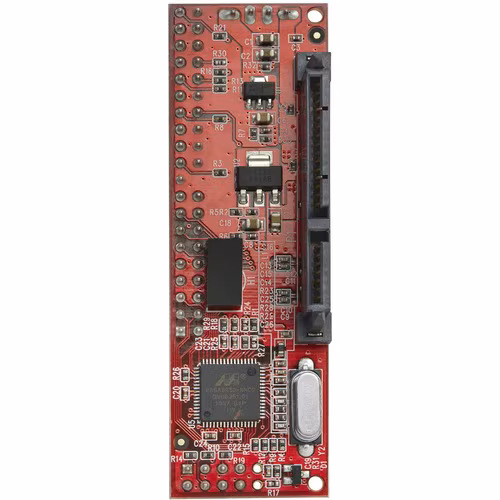

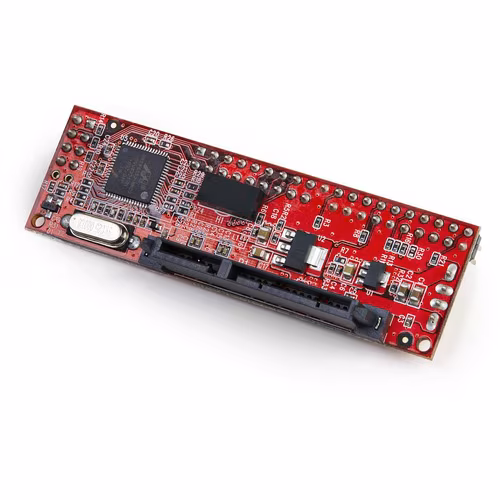

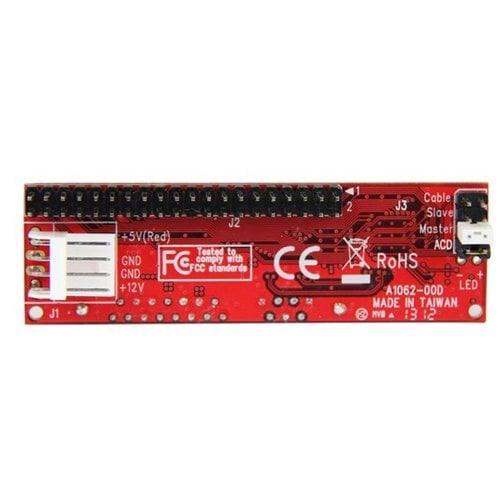

Additional Information	<ul><li>Chipset ID: Marvell - 88SA8852</li><li>1 x IDE (40 Pin; EIDE/PATA)</li><li>1 x SATA Data & Power Combo (7+15 pin)</li><li>1 x SP4 (4 pin; Small Drive Power)</li><li>Maximum Data Transfer Rate: 133MB/sec</li><li>Product Length: 75.5 mm</li><li>Support for 48-bit Logical Block Addressing (LBA)</li><li>Supports 2.5" , 3.5" , and 5.25" SATA Drives</li></ul>
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2
Environmentally Friendly	Yes
Manufacturer Part Number	IDE2SAT2
Certifications & Standards	<ul> <li>CE</li> <li>FCC</li> </ul>
Environmental Certification	EU RoHS
Manufacturer Website Address	http://www.startech.com
