STARTECH.COM

4 PORT POE CARD NETWORK PCIE GIGABIT ETHERNET NIC ADAPTER RJ45

SKU: YP3518VPN: ST4000PEXPSE

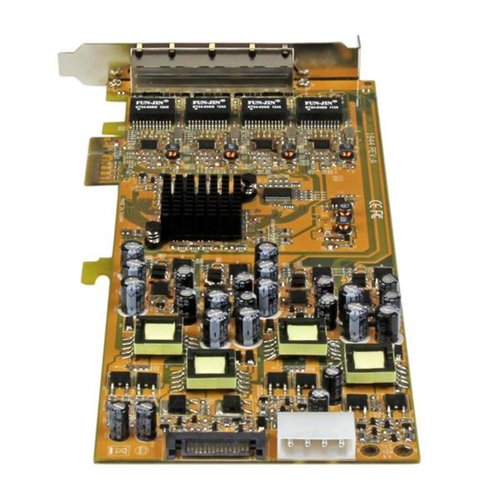

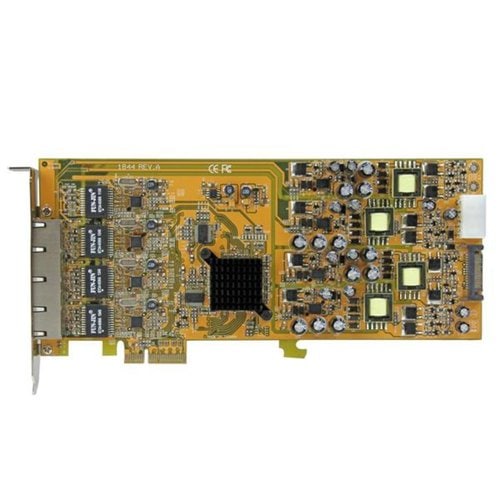

4 PORT POE CARD NETWORK PCIE GIGABIT ETHERNET NIC ADAPTER RJ45

Key Features

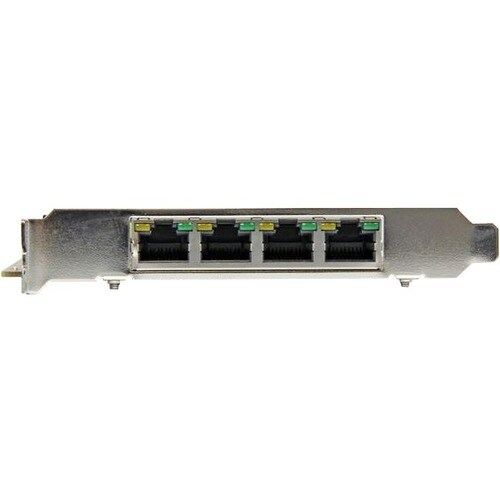

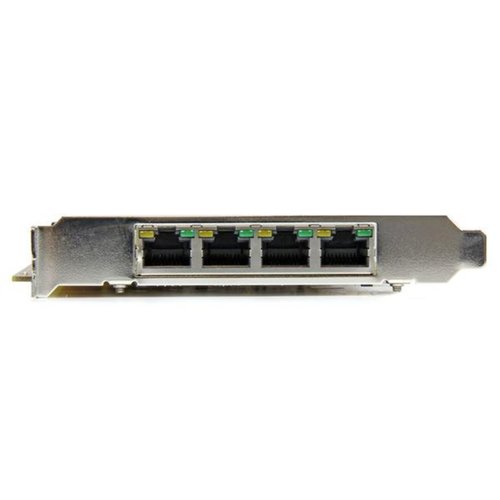

  • Four 10/100/1000 Mbps compatible PoE RJ45 ports
  • Fully compliant with IEEE 802.3at (Type 1 & 2) Power over Ethernet standards
  • Power Sourcing Equipment (PSE) supports up to 48V, 25.5 Watts max. output per port
  • Built-in SATA and LP4 Molex power connector
  • Up to 9K Jumbo Frame support
  • Wake-on-LAN (Remote Wake-up) support
  • Supports Pair Swap, Polarity and Skew Correction
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

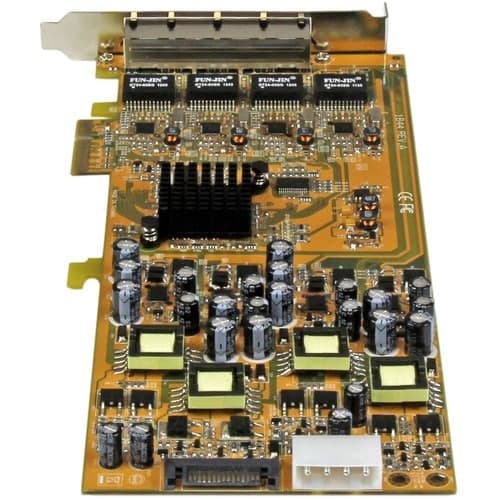

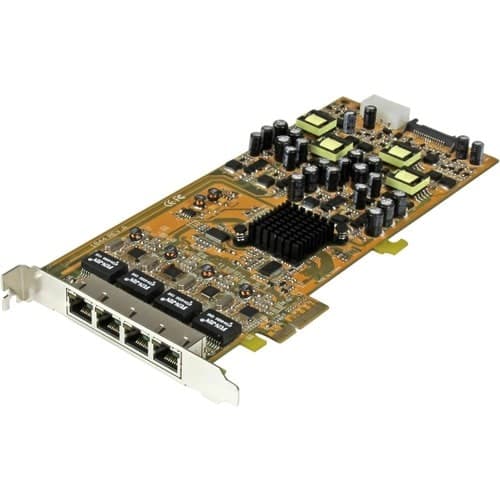

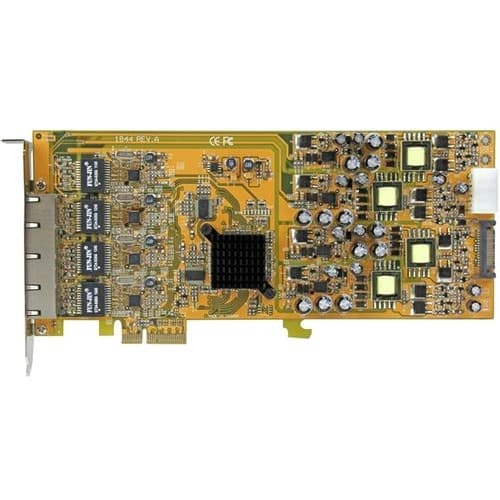

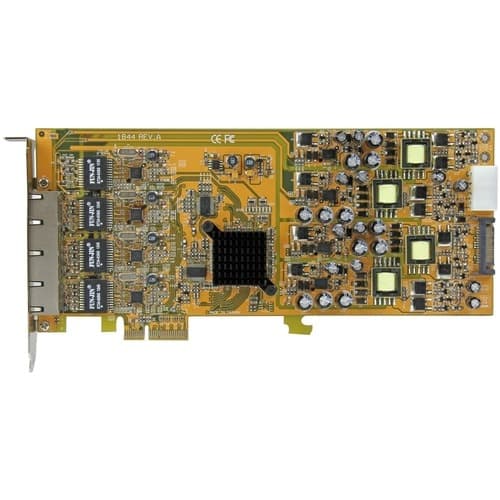

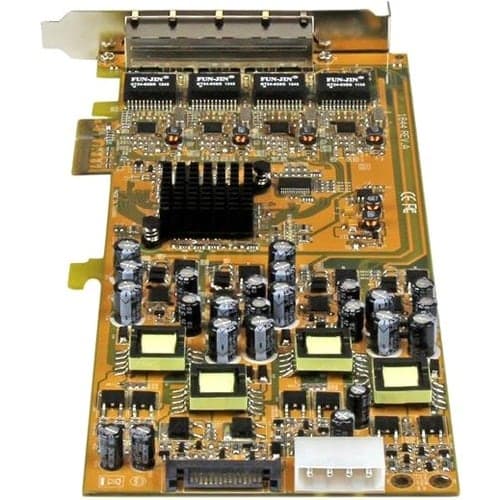

The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices. The PCI express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points. Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL). Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Tech Specs

4 PORT POE CARD NETWORK PCIE GIGABIT ETHERNET NIC ADAPTER RJ45 specifications
Depth9.6"
Width0.7"
Height4.7"
Length9.6"
Brand NameStarTech.com
Form FactorPlug-in Card
ManufacturerStarTech.com
Product Name4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC
Product TypeGigabit Ethernet Card
Chipset ModelRTL8111E
TAA CompliantYes
Host InterfacePCI Express x4
Show all 26 specs
Device SupportedComputer

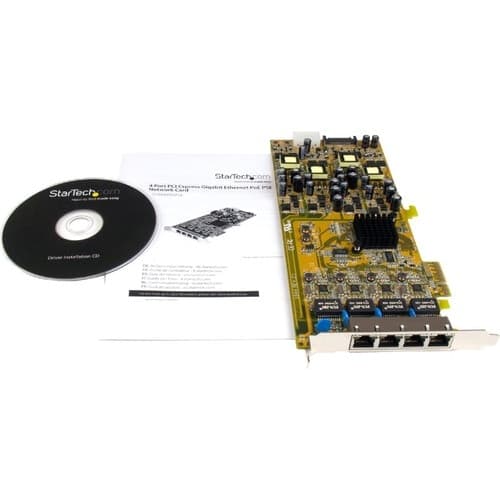

Package Contents<ul><li>4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC</li><li>1 x Driver CD</li><li>1 x Instruction Manual</li></ul>
Country of OriginTaiwan
Packaged Quantity1 Each
Network Technology10/100/1000Base-T
System Requirements<ul> <li>Windows® 2000, XP, Vista, 7, 8, 8.1, 10</li> <li>Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 </li> <li>Linux 2.4.x to 4.11.x LTS Versions Only </li> </ul>
Chipset ManufacturerRealtek
Media Type SupportedTwisted Pair
Weight (Approximate)3.60 oz
Total Number of Ports4
Environmentally FriendlyYes
Manufacturer Part NumberST4000PEXPSE
Manufacturer Website Addresshttp://www.startech.com
Number of Network (RJ-45) Ports4
