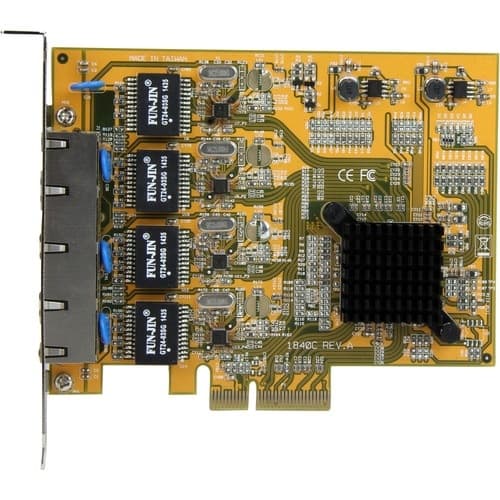

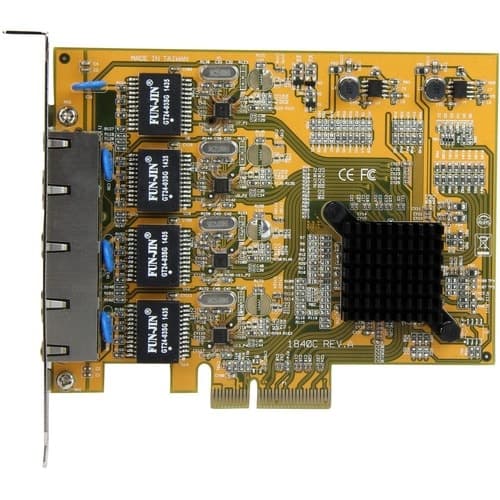

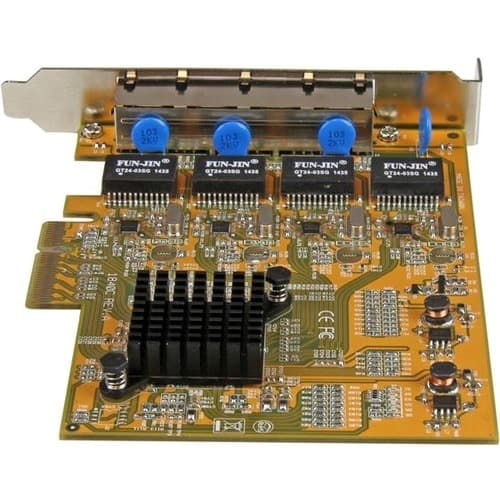

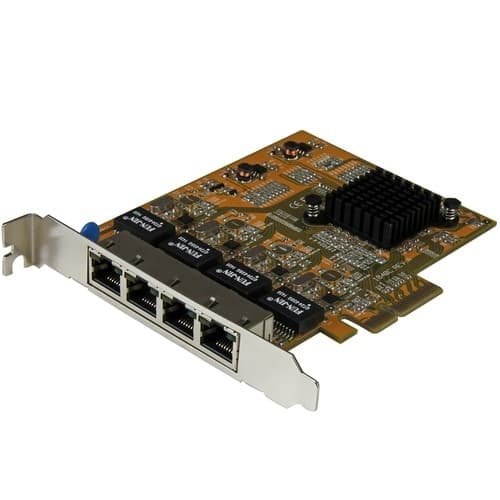

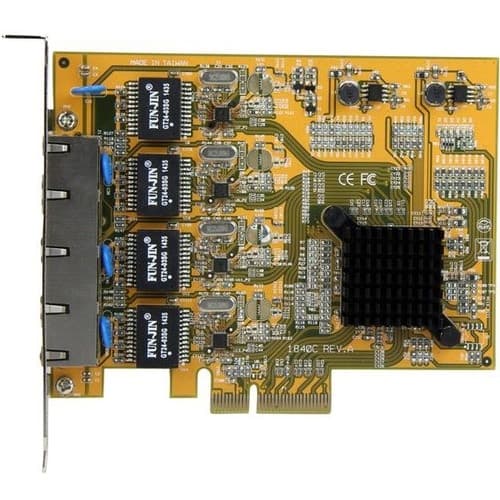

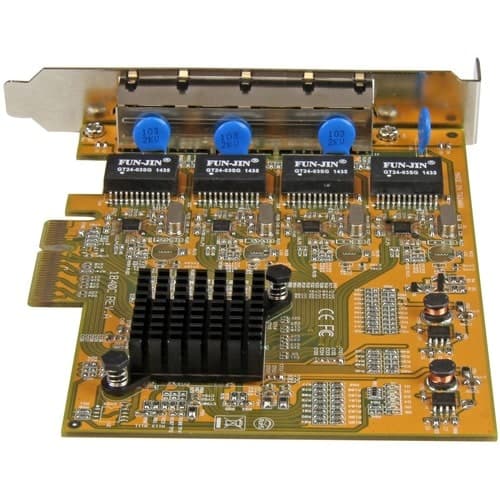

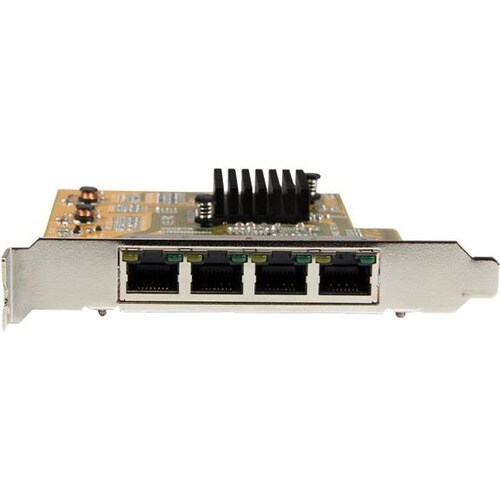

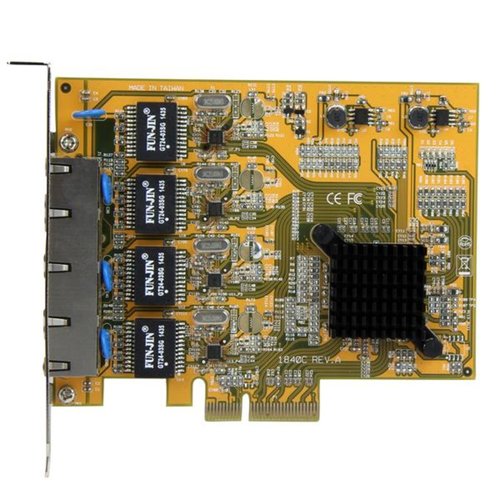

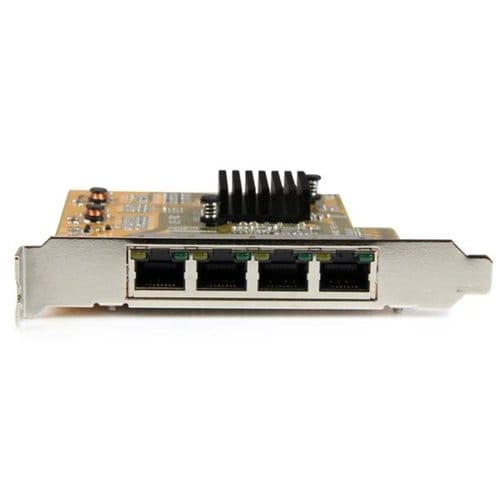

4 PORT PCIE NETWORK CARD LAN GIGABIT ETHERNET NIC ADAPTER RJ45

SKU: 1R2847VPN: ST1000SPEX43

4 PORT PCIE NETWORK CARD LAN GIGABIT ETHERNET NIC ADAPTER RJ45

Key Features

  • Add four independent Gigabit RJ45 ports to connect to multiple networks for high-bandwidth workstations and servers
  • Realtek RTL8111G chipset for reliable performance
  • Supports full-duplex flow control
  • Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab networks
  • Supports autonegotiation with next-page capacity
  • Crossover detection and auto-correction (Auto-MDIX)
  • Up to 9K jumbo frame support
  • Support for IEEE 802.1Q VLAN tagging and IEEE 802.1P layer 2 priority encoding
  • Microsoft NDIS5 checksum offload (IP, TCP, UDP) and large send offload support
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Now you can add four separate Gigabit network ports to your client, server or workstation through just one PCI Express slot, to provide connectivity to multiple networks without draining your budget. Reliable connectivity to multiple networks This 4-port network card delivers powerful connectivity for your business, corporate or government office environment, with support for high-performance, 4-channel networking and a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total). The network adapter card features the Realtek RTL8111G chipset, which is designed to deliver the performance and enhanced capabilities you need for reliable network connections to your server or computer. A versatile and cost-effective solution This versatile quad-port network card is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking with four independent ports. Compatible with a broad range of operating systems, this cost-effective PCIe Gigabit NIC is suitable for many SMB and Enterprise applications such as virtualized environments that require multiple NICs (check your VM software for chipset compatibility). The ST1000SPEX43 is backed by a StarTech.com 2-year hardware warranty and free lifetime technical support.

Tech Specs

4 PORT PCIE NETWORK CARD LAN GIGABIT ETHERNET NIC ADAPTER RJ45 specifications
Depth5.4"
Width4.7"
Height0.7"
Brand NameStarTech.com
Form FactorPlug-in Card
Color FamilyYellow
ManufacturerStarTech.com
Product Name4-Port PCIe Gigabit Network Adapter Card
Product TypeGigabit Ethernet Card
Chipset ModelRTL8111G
Product ColorYellow
TAA CompliantYes
Show all 29 specs
Host InterfacePCI Express x4
Device SupportedServer
Country of OriginTaiwan
Packaged Quantity1 Each
Network Technology10/100/1000Base-T
System Requirements<ul> <li>Windows® XP, 7, 8, 8.1, 10</li> <li>Windows Server® 2003, 2012, 2016, 2019</li> <li>Linux Kernel 2.4.x to 4.11.x LTS Versions only </li> </ul>
Chipset ManufacturerRealtek
Media Type SupportedTwisted Pair
Weight (Approximate)3.40 oz
Total Number of Ports4
Environmental ComplianceRestriction of Hazardous Substances (RoHS) 2
Environmentally FriendlyYes
Manufacturer Part NumberST1000SPEX43
Maximum Data Transfer Rate1.95 Gbit/s
Environmental CertificationEU RoHS
Manufacturer Website Addresshttp://www.startech.com
Number of Network (RJ-45) Ports4
