STARTECH.COM

4 PORT PCIE EXPANSION SYSTEM PCI PCIE ENCLOSURE EXPANSION SYSTEM

SKU: BH2859VPN: PEX2PCIE4L

4 PORT PCIE EXPANSION SYSTEM PCI PCIE ENCLOSURE EXPANSION SYSTEM

Key Features

  • Expansion bay providing 2 PCI ports (32-bit/33 MHz), and 2 PCIe single-lane ports (250MBps)
  • Self-powered PCI/PCIe expansion system with an on/off button
  • Rugged steel construction satisfies demands of industrial and server environments
  • Supports both 5V and 3.3V & 5V add-in PCI cards
  • Complies with PCI 2.3 and PCIe 1.1 specifications
  • Supports advance error reporting including ECRC support
  • Support add-in cards with extended length (38cm)
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

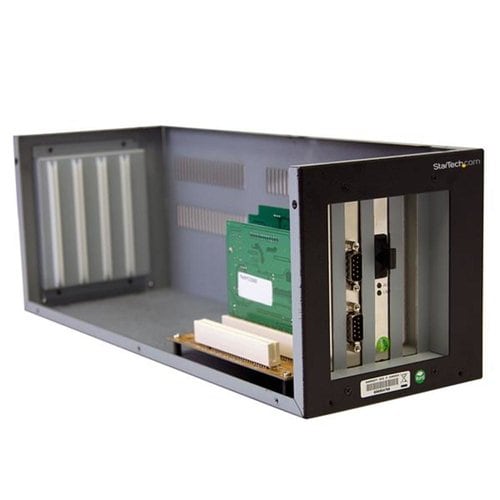

The PEX2PCIE4L PCI/PCI Express Expansion Chassis provides a quick and simple I/O expansion solution to almost any PCI Express (PCIe) enabled system. Adding PCI/PCIe cards to a server or workstation, or providing a platform to swap cards between a mobile and desktop setup is a cost-effective and time-saving solution for maximizing the I/O capabilities of your system. The external expansion chassis adds two full-length (38cm) PCI slots (32-bit/33MHz), as well as two PCIe x1 (single-lane) slots to a host computer through a single PCI Express connection. Providing total bandwidth up to 250MBps from the PCIe x1 host controller card allows the computer to function as though the expansion chassis cards were connected directly to the motherboard. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Tech Specs

4 PORT PCIE EXPANSION SYSTEM PCI PCIE ENCLOSURE EXPANSION SYSTEM specifications
Width5.4"
Height5.6"
Length15"
Brand NameStarTech.com
Color FamilyBlack
ManufacturerStarTech.com
Product NamePCI Express to 2 PCI & 2 PCIe Expansion Enclosure System - Full Length
Product TypeExpansion Chassis
Product ColorBlack
Package Contents<ul> <li>1 x PCI Expansion box</li> <li>1 x PCI Express Card</li> <li>1 x 3 ft. DVIxD Cable</li> <li>1 x Low Profile Bracket</li> <li>1 x Screw Kit</li> <li>3 x Power Cord</li> <li>1 x Power Adapter</li> <li>1 x Software CD</li> <li>1 x Instruction Manual</li> </ul>
Product MaterialSteel
Application/UsageLaptop
Show all 20 specs
Country of OriginTaiwan
Packaged Quantity1 Each
Weight (Approximate)4.40 lb
Environmental ComplianceRestriction of Hazardous Substances (RoHS) 2
Environmentally FriendlyYes
Manufacturer Part NumberPEX2PCIE4L
Environmental CertificationEU RoHS
Manufacturer Website Addresshttp://www.startech.com
