4 PORT PCI SUPERSPEED USB 3.0 USB ADAPTER CONTROLLER CARD W/ SATA

SKU: QV9271VPN: PCIUSB3S4

In Stock

$78.91$68.32

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

ADD 4x SUPERSPEED USB 3.0 PORTS: This PCI/PCI-X Universal (3.3V & 5V, 32-bit) card adds four USB-A 3.2 Gen 1 ports to your computer or server through a PCI slot; Supports USB 3.0/3.1 Gen 1/USB 3.2 Gen 1x1
TRANSFER SPEEDS: USB PCI card with UASP achieves speeds up to the maximum of your PCI bus (1.3Gbps); Ideal for older computers with only PCI slots available like Dell OptiPlex 7010/HP Compaq dc7800; Backward compatible with USB 2.0/1.1/1.0
OPTIONAL POWER: USB PCI expansion card features SATA & SP4 power ports to supply additional power to the USB ports (when motherboard power is insufficient); Power can be connected to SATA or SP4 port to provide up to 5V 0.9A/4.5W per USB Type-A port
STANDARD & LOW PROFILE BRACKET: PCI USB card comes with a full-profile (standard) bracket pre-installed and a low-profile (half height) bracket included for versatile installation in both low-profile and full-profile computer systems
COMPATIBILITY: This card is Windows only; Supported versions: Windows XP and up, Windows Server 2003 and up; USB card is only compatible with PCI/PCI-X slots and is NOT COMPATIBLE with PCI-Express (PCIe); See PEXUSB3S4V for a PCIe solution

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

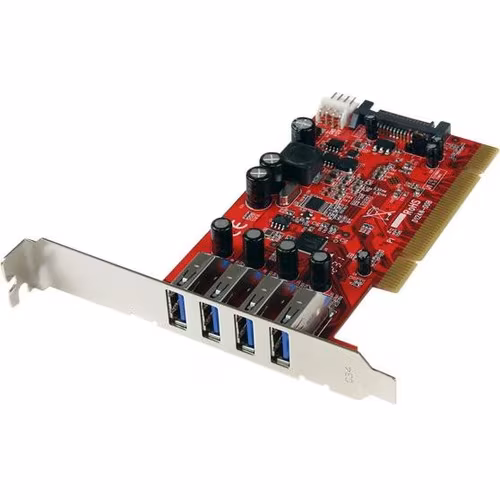

The PCIUSB3S4 4-Port PCI to USB 3.2 Gen 1 Card enables legacy PCI slots to support the SuperSpeed USB 3.2 Gen 1 standard, which is capable of data transfer rates up to 5 Gbps. Using USB 3.2 Gen 1 devices with this card will increase data transfer rates with up to 1.3 Gbps of available bandwidth (PCI bus limit) - more than doubling performance compared to a USB 2.0 connection. Note: Some newer PCs may use a PCIe to PCI bridge which can cause unexpected compatibility issues with this product. This versatile USB 3.2 Gen 1 adapter includes an optional SATA power connector which allows each USB port to deliver up to 900mA of power to connected USB 3.2 Gen 1 devices - suitable for even the most power hungry devices. A perfect solution for older PCI-based systems or computers with only PCI expansion slots remaining, the card allows those systems to stay relevant and up-to-date with the latest USB technology. The card is also backward compatible with USB 2.0 and 1.x devices, so it will not only work with any future USB 3.2 Gen 1 devices, but will also support older devices. The PCIUSB3S4 4-Port PCI USB 3.2 Gen 1 Card is backed by StarTech.com lifetime warranty and free lifetime technical support.

Tech Specs

4 PORT PCI SUPERSPEED USB 3.0 USB ADAPTER CONTROLLER CARD W/ SATA specifications
Width	0.8"
Height	2.6"
Length	5.2"
Thickness	800 mil
Brand Name	StarTech.com
Form Factor	Plug-in Card
Color Family	Red
Manufacturer	StarTech.com
Product Name	4 Port PCI SuperSpeed (5Gbps) USB 3.0 Adapter Card with SATA / SP4 Power
Product Type	USB Adapter
UASP Support	Yes
Product Color	Red

Show all 29 specs

TAA Compliant	Yes
Host Interface	PCI-X
Package Contents	<ul> <li>4 Port PCI SuperSpeed (5Gbps) USB 3.0 Adapter Card with SATA / SP4 Power</li> <li>1 x Low Profile Bracket</li> <li>1 x Driver CD</li> <li>1 x Instruction Manual</li> </ul>
Country of Origin	Taiwan
Packaged Quantity	1 Each
Data Transfer Rate	5 GB/s
Platform Supported	PC
Number of SATA Ports	1
Weight (Approximate)	2.54 oz
Additional Information	<li>Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64)</li><li>Windows Server® 2012, 2008 R2, 2003 </li>
Number of USB 3.2 Ports	4
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	PCIUSB3S4
Total Number of USB Ports	4
Operating System Supported	Windows XP
Manufacturer Website Address	http://www.startech.com
