STARTECH.COM

4-PORT KEYBOARD/MOUSE SWITCH MOUSE ROAMING KM/USB SWITCH

SKU: JR2561VPN: P4A20132-KM-SWITCH

4-PORT KEYBOARD/MOUSE SWITCH MOUSE ROAMING KM/USB SWITCH

Key Features

  • SEAMLESS MOUSE SWITCHING: Instantly and automatically switch computers by moving the mouse between monitors, enabling uninterrupted workflow and increased efficiency; Hotkey and push-button switching options are also available
  • SCREEN LAYOUT PRESETS: Monitor layouts controlled via hotkeys are designed to accommodate a variety of physical monitor setups, allowing for seamless mouse movement across host monitors; 4 different preset display configurations available
  • USB CONNECTIVITY: Supports up to three USB Human Interface Device (HID) peripherals and two USB 3.2 Gen 1 (5Gbps) devices; Ideal for environments such as control rooms, security facilities, server rooms, and financial operations
  • THOUGHTFUL DESIGN: Independent audio switching allows users to listen to audio from one computer while controlling another; USB audio and 3.5mm pass-through available; LEDs provide visual port selection status; Audible buzzer for hotkey confirmation
  • UNIVERSAL COMPATIBILITY: Mouse Roaming is supported by most major desktop operating systems including Windows, macOS, and Linux; Hotkey and push-button switching are OS independent; Works with all hardware platforms including Intel and AMD
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

This Keyboard and Mouse (KM) Switch enables switching a single keyboard and mouse between multiple computers using mouse roaming, allowing users to seamlessly move the cursor across multiple screens (i.e., one monitor per computer).

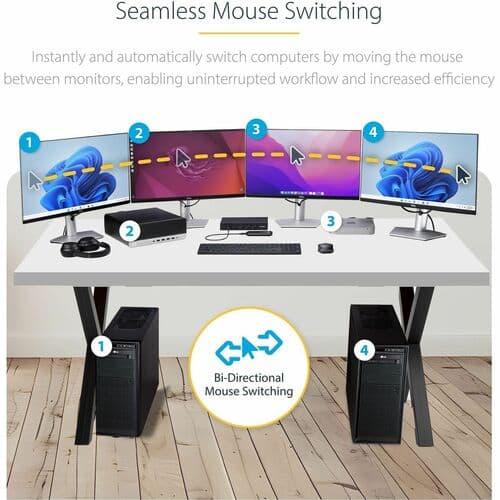

Mouse Switching

Switch between computers by moving the mouse between monitors, enabling uninterrupted workflow and increased efficiency. Hotkey and push-button switching are universally compatible. Mouse Switching is supported by most major desktop operating systems, including Windows, macOS, and Linux.

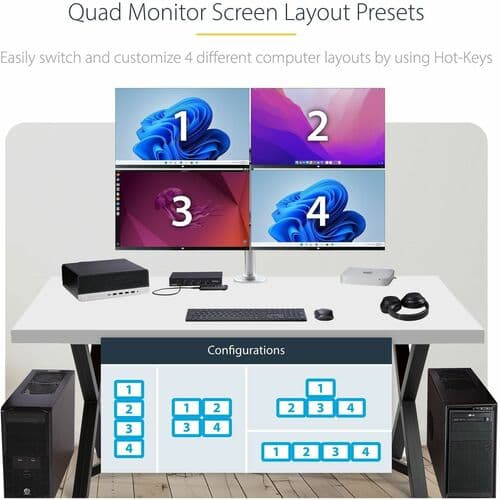

Preset Monitor Layouts

To accommodate various physical monitor setups, there are four preset display configurations available. This allows for smooth mouse movement across host monitors.

Thoughtful Design

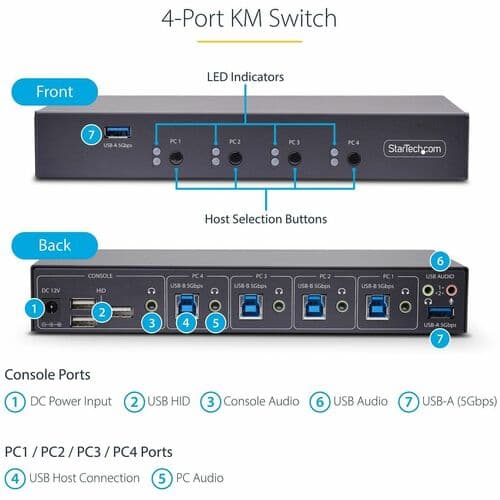

Hotkeys enable listening to audio from one computer while controlling another. USB audio and 3.5mm pass-through are available, and LEDs provide visual port selection status, while an audible buzzer confirms hotkey selection.

Note: On computers with multiple monitors connected with Mouse Switching/Roaming enabled, mouse/keyboard operation is limited to the primary display

Tech Specs

4-PORT KEYBOARD/MOUSE SWITCH MOUSE ROAMING KM/USB SWITCH specifications
USBYes
Depth8.7"
Width5.1"
Height1.3"
USB 2.0Yes
FeaturesLED Indicator
Brand NameStarTech.com
Device TypeDesktop KVM
DisplayPortYes
Form FactorDesktop
ManufacturerStarTech.com
Product Name4-Port KM Switch with Mouse Roaming, USB Switch for Keyboard/Mouse, 3.5mm/USB Audio, Perihperal Sharing for 4 Computers, TAA Compliant
Show all 32 specs
Product TypeKM Switchbox
USB StandardUSB 2.0
Compatibility<ul><li> Windows</li><li> macOS</li><li> Linux</li></ul>
Input Current600 mA
TAA CompliantYes
Power Plug TypeType M

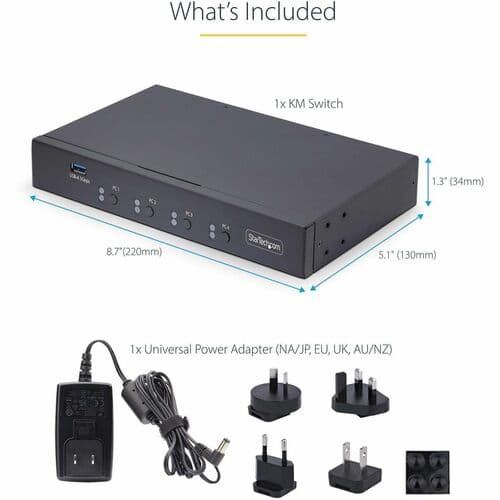

Package Contents<ul><li> 4-Port KM Switch with Mouse Roaming, USB Switch for Keyboard/Mouse, 3.5mm/USB Audio, Perihperal Sharing for 4 Computers, TAA Compliant</li><li> 1 x Universal Power Adapter (NA/EU/UK/ANZ)</li><li> 1 x Quick-Start Guide</li></ul>
Packaged Quantity1
Input Voltage Range100 - 240 AC
Number of USB Ports9
Weight (Approximate)1.80 lb
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Environmentally FriendlyYes
Manufacturer Part NumberP4A20132-KM-SWITCH
Maximum Data Transfer Rate640 MB/s
Manufacturer Website Addresshttp://www.startech.com
Maximum Operating Temperature104°F (40°C)
Minimum Operating Temperature32°F (0°C)
Number of Computers Supported4
Number of Local Users Supported1

Datasheets & Resources
