STARTECH.COM

4 PORT DISPLAYPORT KVM SWITCH USB AUDIO DP RACKMOUNT KVM SWITCH

SKU: CN1869VPN: SV431DPUA

4 PORT DISPLAYPORT KVM SWITCH USB AUDIO DP RACKMOUNT KVM SWITCH

Key Features

  • 7.1 Channel High Definition Audio support plus dual channel Analog Stereo and Microphone
  • Full plug-and-play support with USB keyboards, mice, and connected peripherals
  • Hotkey and push-button switching
  • Native DisplayPort resolution of 2560x1600 @60Hz; beyond 1080p
  • OS independent - No driver or software required
  • Supports a maximum resolution of 3840x2400 at lower refresh rates
  • Supports DDC2B for monitor detection
  • Supports hot-plug, un-plug and link status-failure detection
  • Integrated 2 port USB 2.0 hub
  • User-defined scan time intervals
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

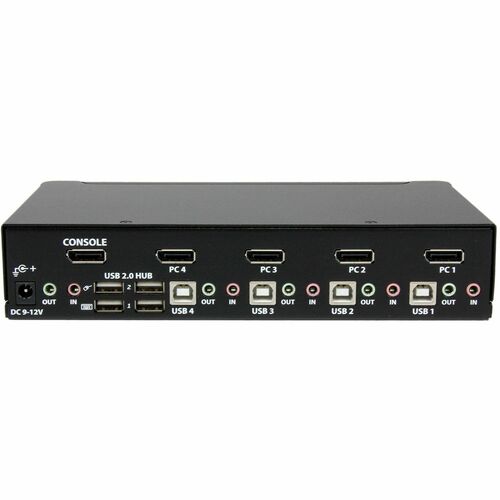

The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers. Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected. Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates. A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions. This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support. Rackmount your KVM switch If you'd like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket(sold separately) that turns this KVM into a rackmountable KVM.

Tech Specs

4 PORT DISPLAYPORT KVM SWITCH USB AUDIO DP RACKMOUNT KVM SWITCH specifications
USBYes
Depth5.1"
Width8.7"
Height1.7"
Brand NameStarTech.com
DisplayPortYes
Form FactorDesktop
Color FamilyBlack
Graphic ModeWQXGA
ManufacturerStarTech.com
Product Name4 Port USB DisplayPort KVM Switch with Audio
Product TypeKVM Switchbox
Show all 35 specs
Input Voltage5 V DC
Product ColorBlack
TAA CompliantYes
WEEE Statementhttps://media.startech.com/cms/pdfs/sv431dpua_weee.pdf
Package Contents<ul> <li>4 Port USB DisplayPort KVM Switch with Audio</li> <li>4 x Foot Pads</li> <li>1 x Universal power adapter (NA/UK/EU/AU)</li> <li>1 x Instruction manual</li> </ul>
Country of OriginTaiwan
Packaged Quantity1 Each
REACH free of SVHCYes
Input Voltage Range100V AC to 240V AC
Number of USB Ports8
Weight (Approximate)2.20 lb
REACH Declaration URLhttps://media.startech.com/cms/pdfs/sv431dpua_rohs.pdf
Number of DisplayPorts5
EU RoHS Declaration URLhttps://media.startech.com/cms/pdfs/sv431dpua_rohs.pdf
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Environmentally FriendlyYes
Manufacturer Part NumberSV431DPUA
Maximum Video Resolution3840 x 2400
Environmental CertificationEU RoHS
Manufacturer Website Addresshttp://www.startech.com
Number of Computers Supported4
End of Life Manual AvailabilityYes
Number of Local Users Supported1
