3X3 4K VIDEO WALL PROCESSOR WITH USB-C/DP/VGA/HDMI INPUT

SKU: 8PW608VPN: CE-H26F11-S1

In Stock

$2,199.99$1,622.84

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Allows you to select and switch between 4 source devices (1 HDMI, 1 DisplayPort, 1 USB-C, and 1 VGA) to display on 9 HDMI displays + 1 local HDMI out
Create a 3x3 Video Wall using any source device to 9 displays

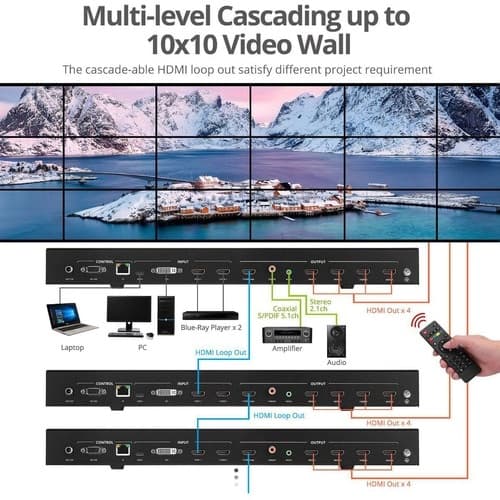

Supports multi-level cascading to create 3x4, 4x5, 5x6, and 10x10 (max) video walls
Compliant with HDCP 2.2/1.4 specification
Supports 180° HDMI image rotation
Supports EDID management: Two default EDID: 4K30Hz & 1080p
Supports resolution up to 4K@30Hz for USB-C, DisplayPort and HDMI inputs, 1080p for the VGA input

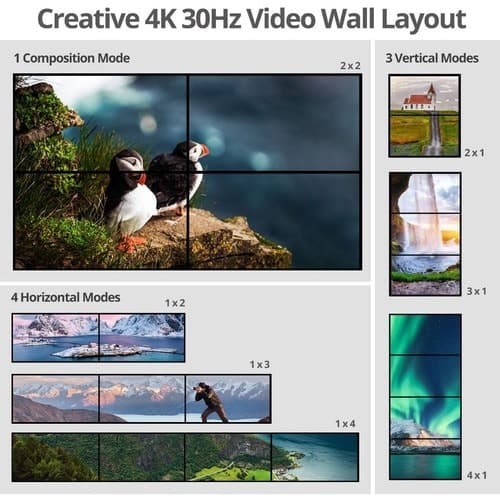

OSD allows more than 10 splicing modes, video wall setup by single click

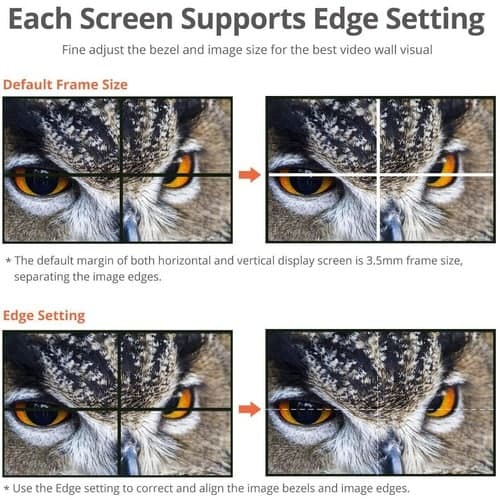

Supports monitor edge adjustment

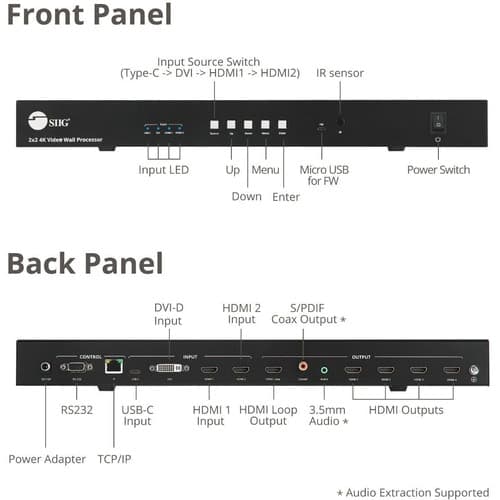

Supports source device switching via front panel button, remote control, RS232 command, and TCP/IP control
USB port allows firmware upgrades when needed
Supports SPDIF and analog audio extraction to connect external speakers or AVRs

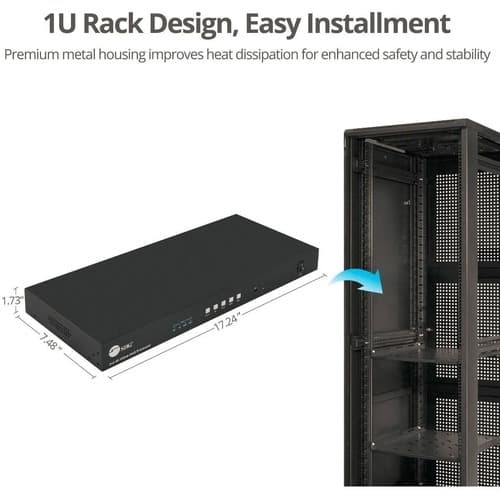

Mounting brackets included for various installation options

Adding to inquiry lets you bundle multiple products into a single quote request.

3x3 4K Video Wall Processor with USB-C / DP / VGA / HDMI Input

Allows you to select and switch between 4 source devices (1 HDMI, 1 DisplayPort, 1 USB-C, and 1 VGA) to display on 9 HDMI displays + 1 local HDMI out
Create a 3x3 Video Wall using any source device to 9 displays
Supports multi-level cascading to create 3x4, 4x5, 5x6, and 10x10 (max) video walls
Compliant with HDCP 2.2/1.4 specification
Supports 180° HDMI image rotation
Supports EDID management: Two default EDID: 4K30Hz & 1080p
Supports resolution up to 4K@30Hz for USB-C, DisplayPort and HDMI inputs, 1080p for the VGA input
OSD allows more than 10 splicing modes, video wall setup by single click
Supports monitor edge adjustment
Supports source device switching via front panel button, remote control, RS232 command, and TCP/IP control
USB port allows firmware upgrades when needed
Supports SPDIF and analog audio extraction to connect external speakers or AVRs
Mounting brackets included for various installation options

3X3 4K VIDEO WALL PROCESSOR WITH USB-C/DP/VGA/HDMI INPUT specifications
DVI	Yes
USB	Yes
HDMI	Yes
Depth	10.8"
Width	17.2"
Height	1.7"
Serial	Yes
Ethernet	Yes
Brand Name	SIIG
Color Family	Black
Manufacturer	SIIG, Inc
Product Name	3x3 4K Video Wall Processor with USB-C/DP/VGA/HDMI In

Show all 27 specs

Product Type	Video Wall Controller
Input Voltage	12 V DC
Product Color	Black
Product Model	CE-H26F11-S1
Package Contents	<ul> <li>3x3 4K Video Wall Processor with USB-C/DP/VGA/HDMI In</li> <li>DC 24V/2A output power adapter</li> <li>Remote control</li> <li>Mount bracket kit (6x screws, 2x mounting ears)</li> <li>Driver CD</li> <li>USB cable</li> <li>User manual</li> </ul> <ul></ul> <ul></ul> <ul></ul> <ul></ul>
Country of Origin	China
Weight (Approximate)	8.16 lb
Number of HDMI Inputs	1
Video Wall Compatible	Yes
Number of DisplayPorts	1
Number of HDMI Outputs	10
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	CE-H26F11-S1
Manufacturer Website Address	http://www.siig.com
