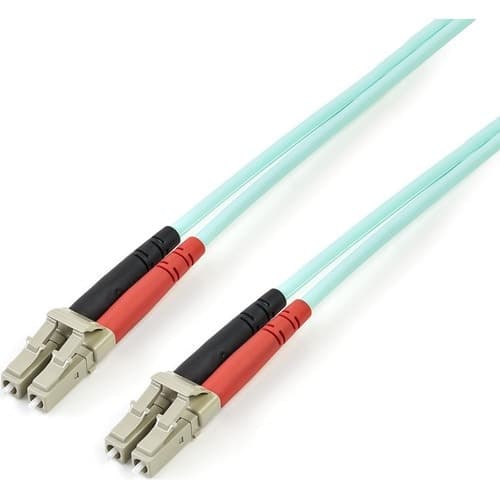

3M MULTIMODE FIBER OPTIC CABLE OM3 LC/LC 50/125 LSZH FIBER CABLE

SKU: 1AX345VPN: 450FBLCLC3

In Stock

$27.66$21.55

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

OM4 FIBER CABLE: OM4 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
QUALITY CONSTRUCTION: 50/125"m fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes if combusted; Attenuation value under 2.3dB/km meets or exceeds industry standards
COMPATIBILITY: OM4 LC/LC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10
SPECS: 3m (9.8ft); Color: Aqua (OM4); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: 2000MHz/km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life~

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

This fiber optic cable lets you connect 40GBase-SR4, 100GBase-SR10, SFP plus and QSFP plus transceivers in 40 and 100 Gigabit networks. The OM4 Duplex Multimode Fiber Optic Cable with LC connectors supports Vertical Cavity Surface Emitting Laser (VCSEL) and LED light sources. It is backward-compatible with your existing 50/125 equipment. Fiber cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat in the event of a fire. Compatible with 850nm VCSEL source, the network cable is ideal for use in industrial settings, central offices and schools as well as residential settings where building codes are a consideration. Laser-optimized multimode fiber is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and reliability.

Tech Specs

3M MULTIMODE FIBER OPTIC CABLE OM3 LC/LC 50/125 LSZH FIBER CABLE specifications
Features	Corrosion Resistant
Brand Name	StarTech.com
Cable Type	Fiber Optic
Jacket Type	LSZH
Cable Length	9.84 ft
Color Family	Green
Manufacturer	StarTech.com
Product Name	Fiber Optic Duplex Patch Network Cable
Product Type	Network Cable
Product Color	Aqua
Shipping Width	7.87"
WEEE Statement	https://media.startech.com/cms/pdfs/450fblclc3_weee.pdf

Show all 37 specs

Shipping Height	0.59"
Device Supported	Network Device
Fiber Optic Mode	Multi-mode
Country of Origin	China
Packaged Quantity	1 Each
Data Transfer Rate	100 Gbit/s
REACH free of SVHC	Yes
Cable Characteristic	Patch Cable
Weight (Approximate)	0.11 lb
REACH Declaration URL	https://media.startech.com/cms/pdfs/450fblclc3_rohs.pdf
EU RoHS Declaration URL	https://media.startech.com/cms/pdfs/450fblclc3_rohs.pdf
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally Friendly	Yes
Manufacturer Part Number	450FBLCLC3
Connector Type on First End	LC Network - Male
Environmental Certification	EU RoHS
Connector Type on Second End	LC Network - Male
Manufacturer Website Address	http://www.startech.com
Connector Gender on First End	Male
Shipping Weight (Approximate)	1.92 oz
Connector Gender on Second End	Male
Connector on First End Details	2 x LC Network - Male
Connector on Second End Details	2 x LC Network - Male
End of Life Manual Availability	Yes
Fiber Optic Cable Core/Cladding Specification	50/125 µm
